A/T - Manual Shift Feel Improved

91toyota03

REF.: TRANSMISSION & CLUTCH


NO.: TM91 - 011


DATE: MAY 17, 1991


MODEL: SV/VV


A540E/H A/TM MANUAL SHIFT FEEL

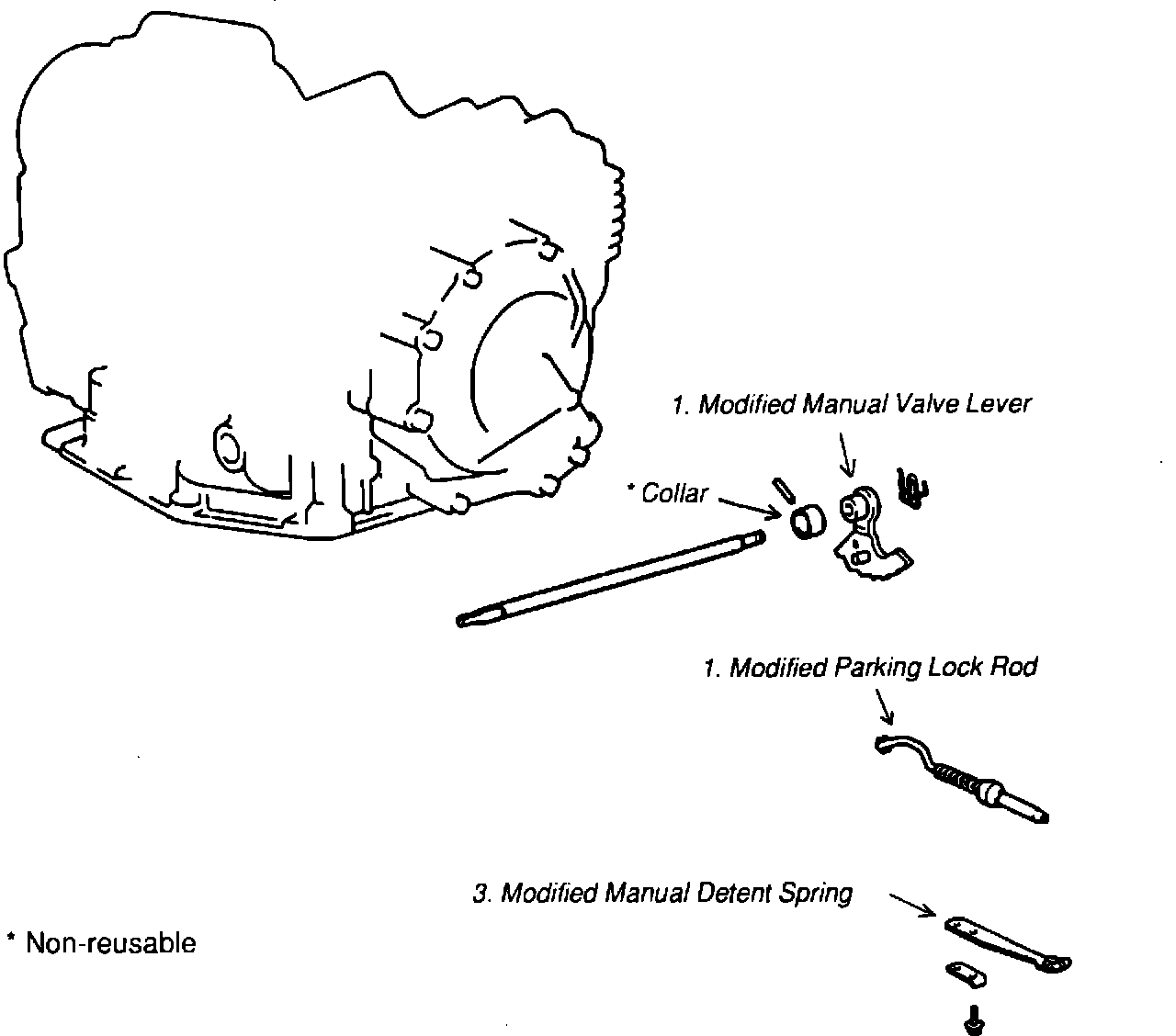

The following components have been modified to improve the shift feel when engaging the A/TM Shift Lever into gear:

1. Manual Valve Lever
2. Parking Lock Rod
3. Manual Detent Spring

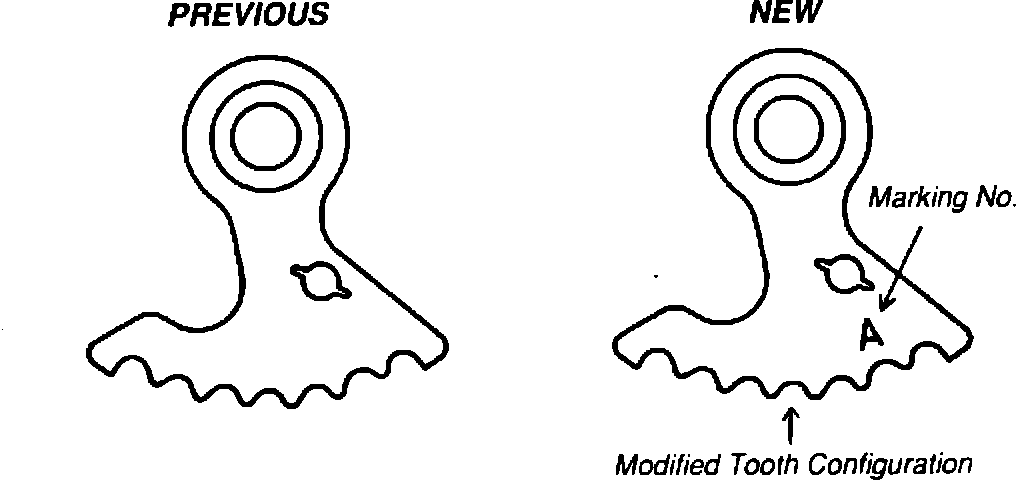

1. Manual Valve Lever Sub-Assy

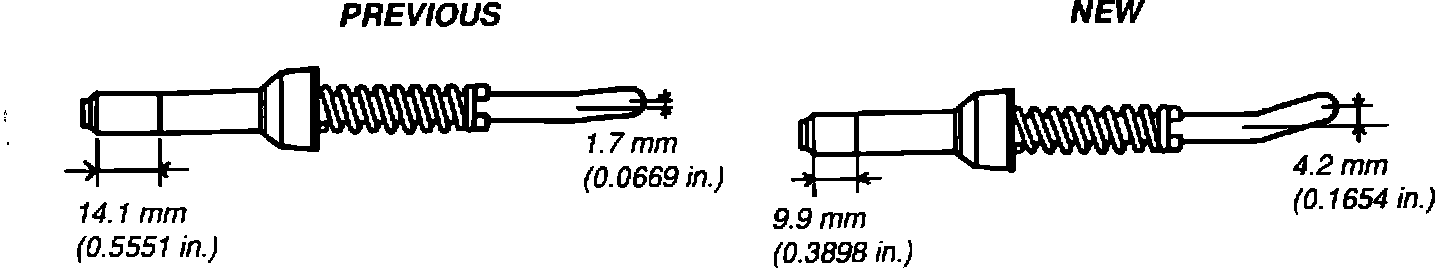

2. Parking Lock Rod Sub-Assy

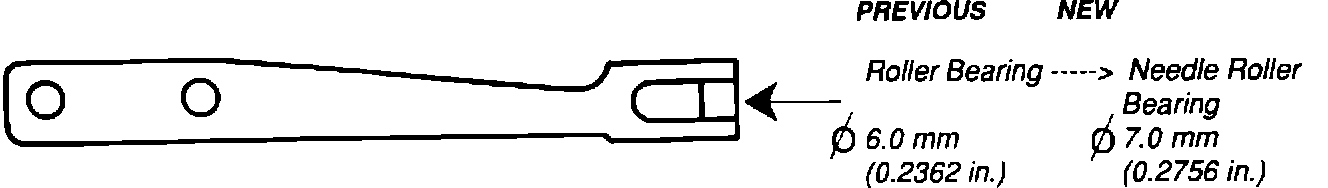

3. Manual Detent Spring Sub-Assy


PRODUCTION EFFECTIVE:

From VIN P/D A/TM Model A/TM Serial No.
JT2VV2 # * # MO134710 9/90 A540E A0804158
JT2VV2 # * # M3015290 9/90 A540E A0804158
4T1VV2 # * # MU040921 10/90 A540E A0804158
JT2SV2 # J # M0038387 9/90 A540E A0804158

PART NUMBER INFORMATION:

Prev. Part No. New Part No. Part Name
35505-20010 * 35505-32030 Lever sub-assy, manual valve
35501-32020 * 35501-32040 Rod sub-assy, parking lock
35409-32020 * 35409-32030 Spring sub-assy, manual detent

* Parts are interchangeable as a set only
