Starting - Modified Clutch Start Switch

90toyota09 TRANSMISSION &
REFERENCE CLUTCH
NUMBER 042
DATE 12-21-90
MODEL ST, AT, SW, VV,
SV, AC

TITLE CLUTCH START SWITCH

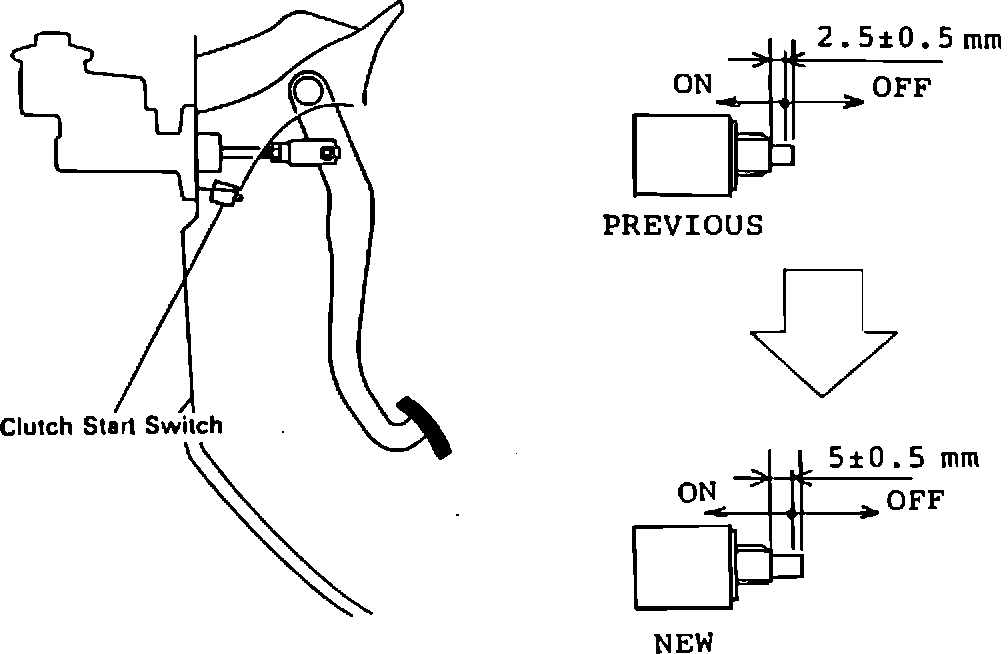

To reduce the length of travel required of the clutch pedal to engage the clutch start switch for engine starting, the clutch start switch has been modified as shown below:
PRODUCTION EFFECTIVE:

Starting VIN P/D
JT2AT86F # L0023062 1/90
JT#ST8 # * # L0031036 1/90
JT2VV2 # E # L0117263 4/90
JT2VV2 # e # L3012126 4/90
JT2SV2 # * # L0356998 5/90
JT2SV2 # * # L3525457 5/90
JT2SW21M # M0000490 1/90
JT3AC1 # R # M0000409 1/90
JT3AC2 # S # M0000173 2/90


PART NUMBER INFORMATION:

PREV. Part No. NEW Part No. Part Name Models
84520-20010 84520-20020 Switch Assy., Celica, MR2
Clutch Start Previa

84520-32020 84520-32021 Switch Assy., Camry (SV, VV)
Clutch Start

PARTS ARE INTERCHANGEABLE
