Rear Wiper & Washer Switch
Rear Wiper & Washer Switch

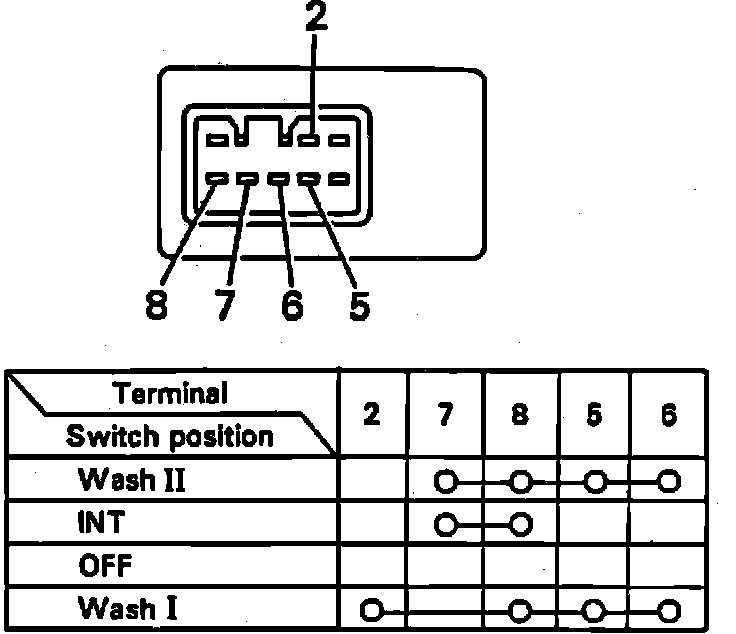

Fig. 36 Rear Wiper & Washer Switch. 1989-91 Camry:
1.
Inspect for continuity as shown in
Fig. 36.
2.
If continuity is not as indicated, replace switch.
