Throttle Position Sensor Inspection
Throttle Position Sensor Inspection
INSPECT

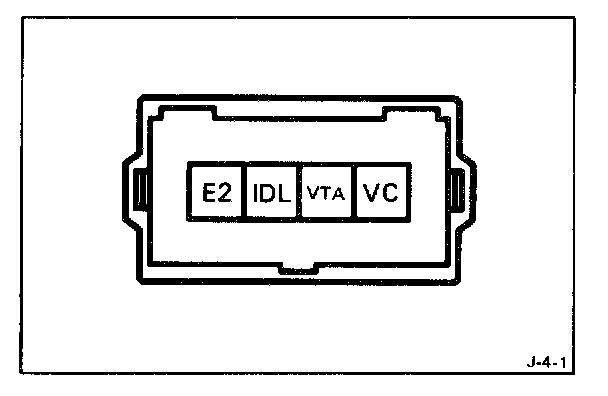

THROTTLE POSITION SENSOR

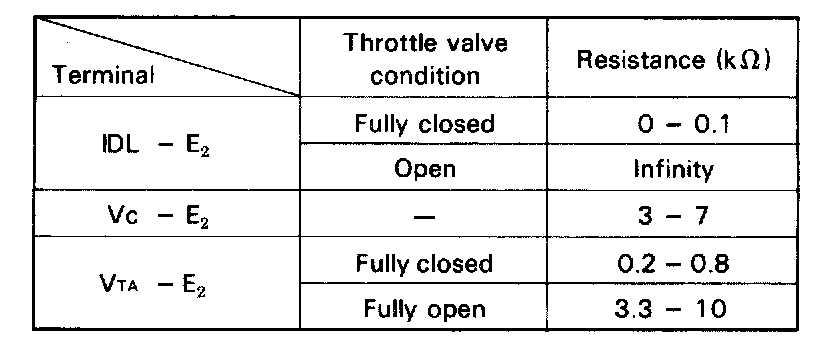

Using an ohmmeter, check the resistance between each terminal.
