Celica L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

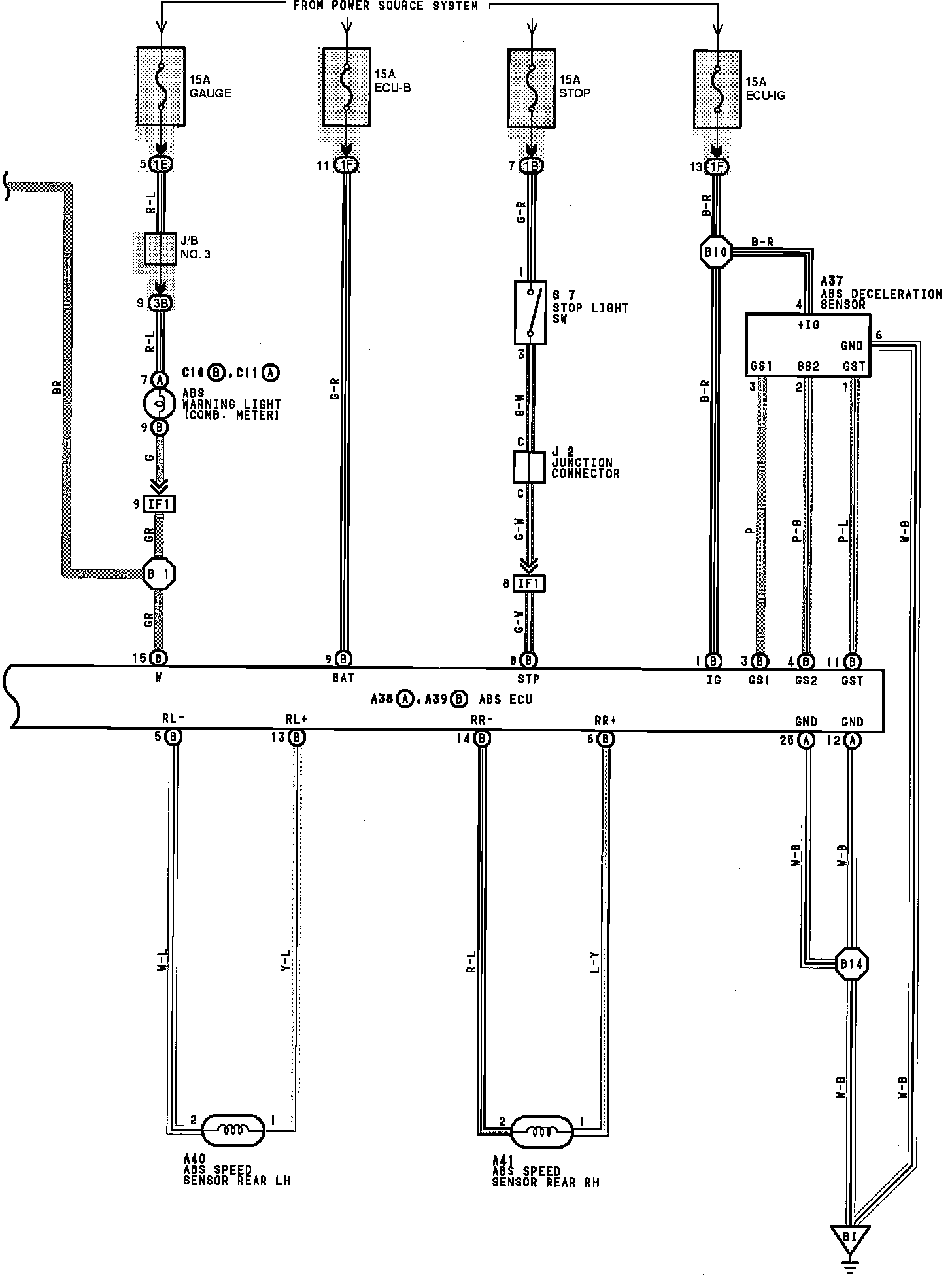

Anti-Lock Brake System:

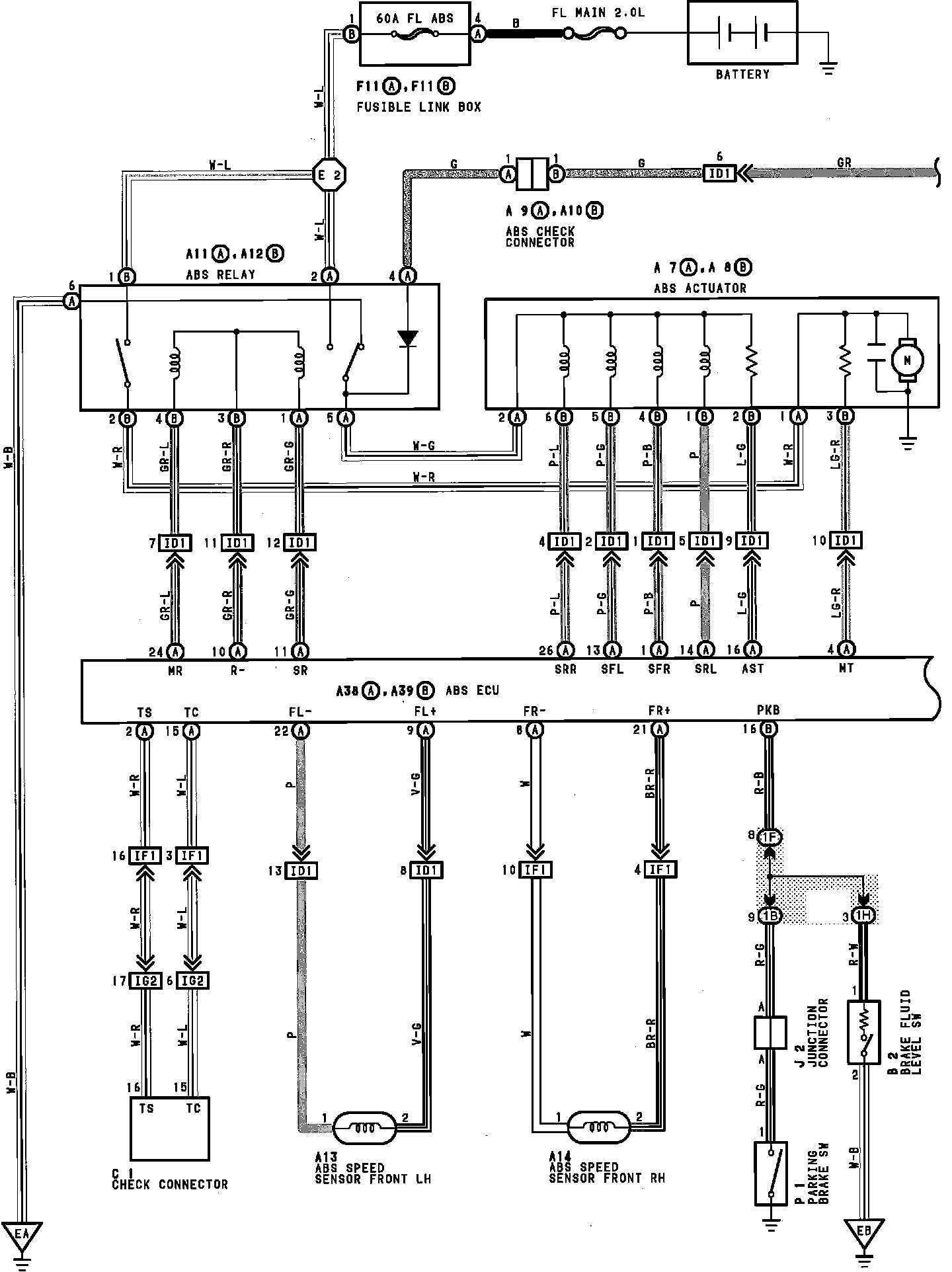

Anti-Lock Brake System:
