Home >> Toyota >> 1990 >> Celica L4-122 1998cc 2.0L DOHC Turbo (3S-GTE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems

Computers and Control Systems

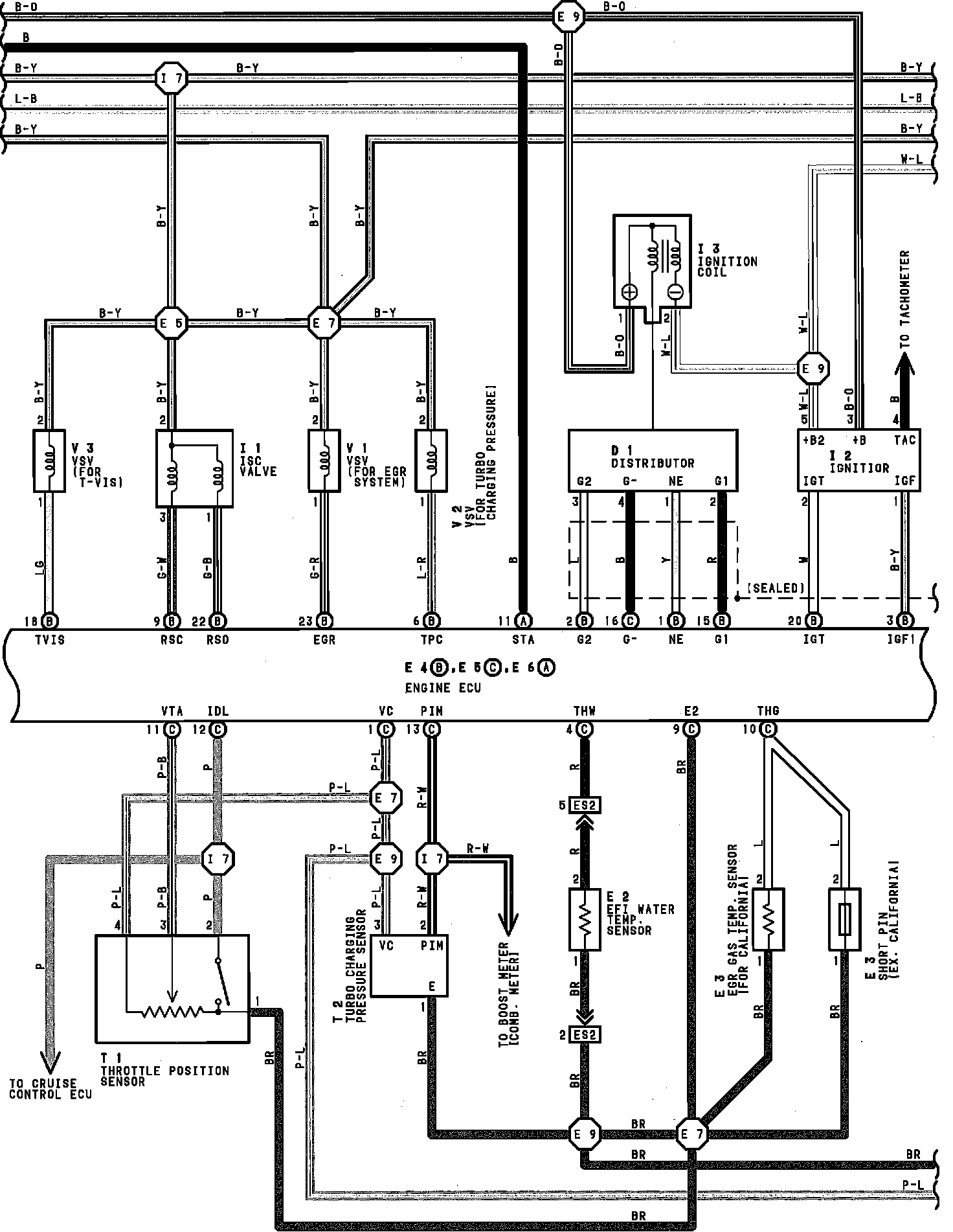

Engine Control:

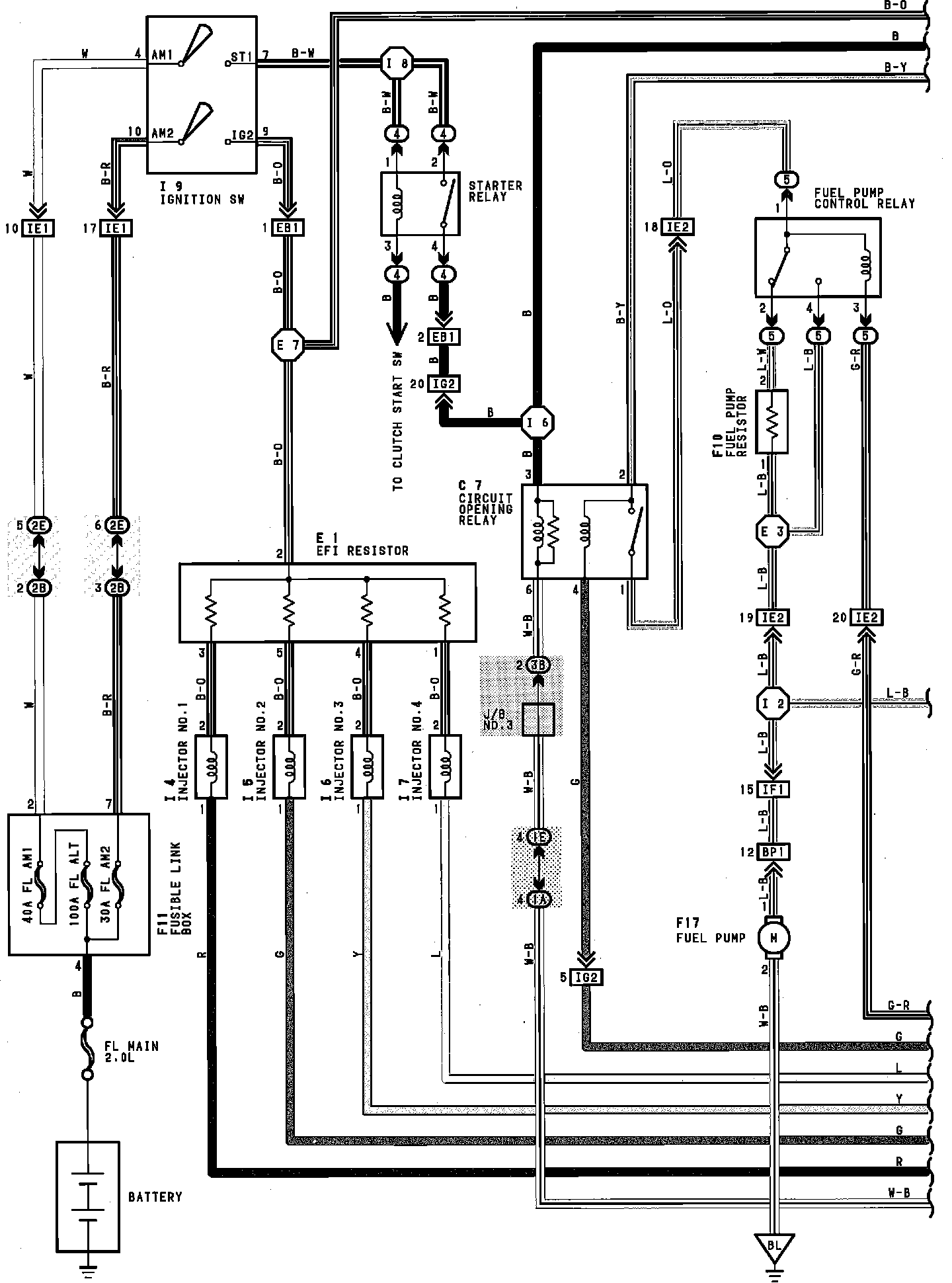

Engine Control:

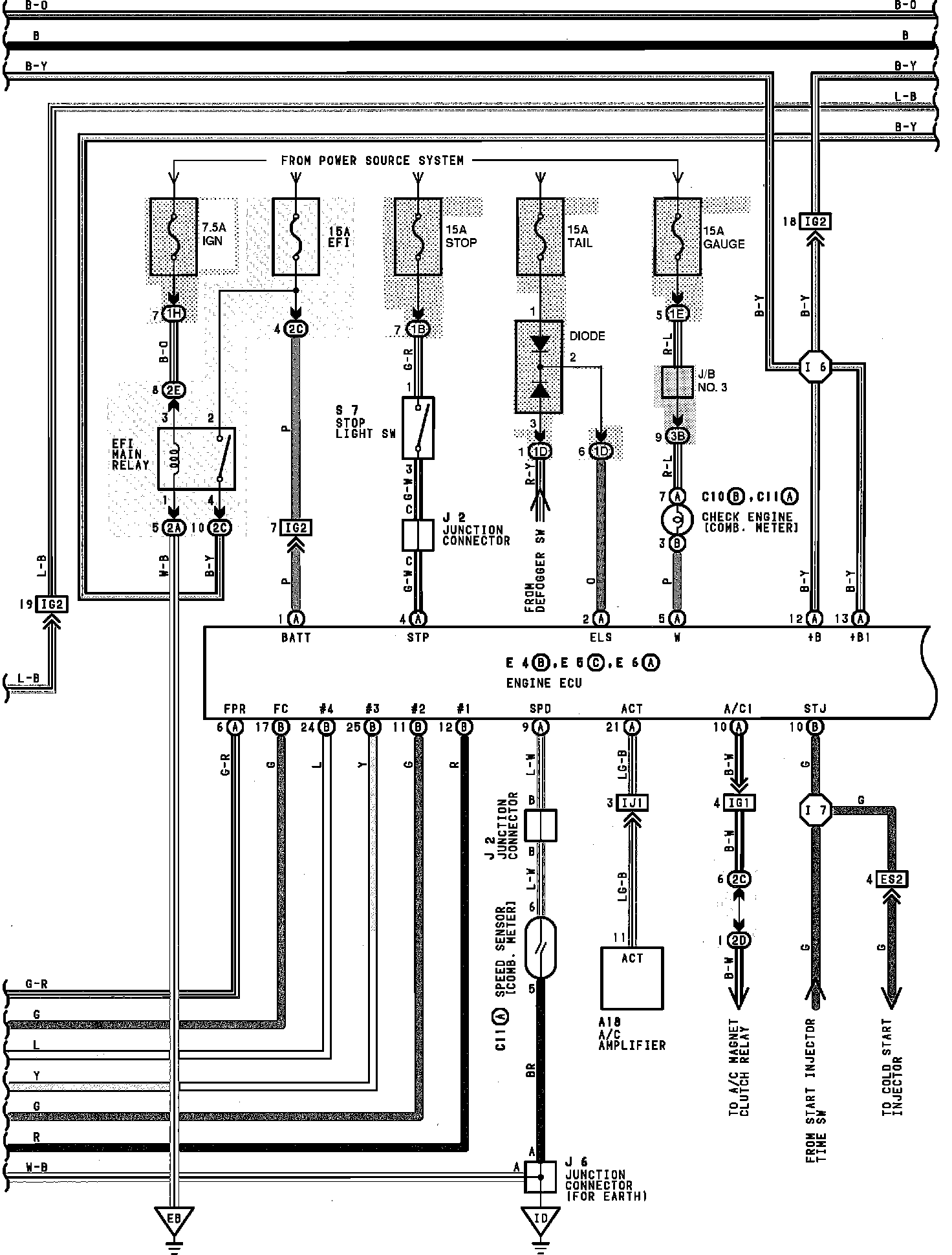

Engine Control:



Engine Control:
