Home >> Toyota >> 1990 >> Celica L4-122 1998cc 2.0L DOHC Turbo (3S-GTE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Fog >> Canada

Canada

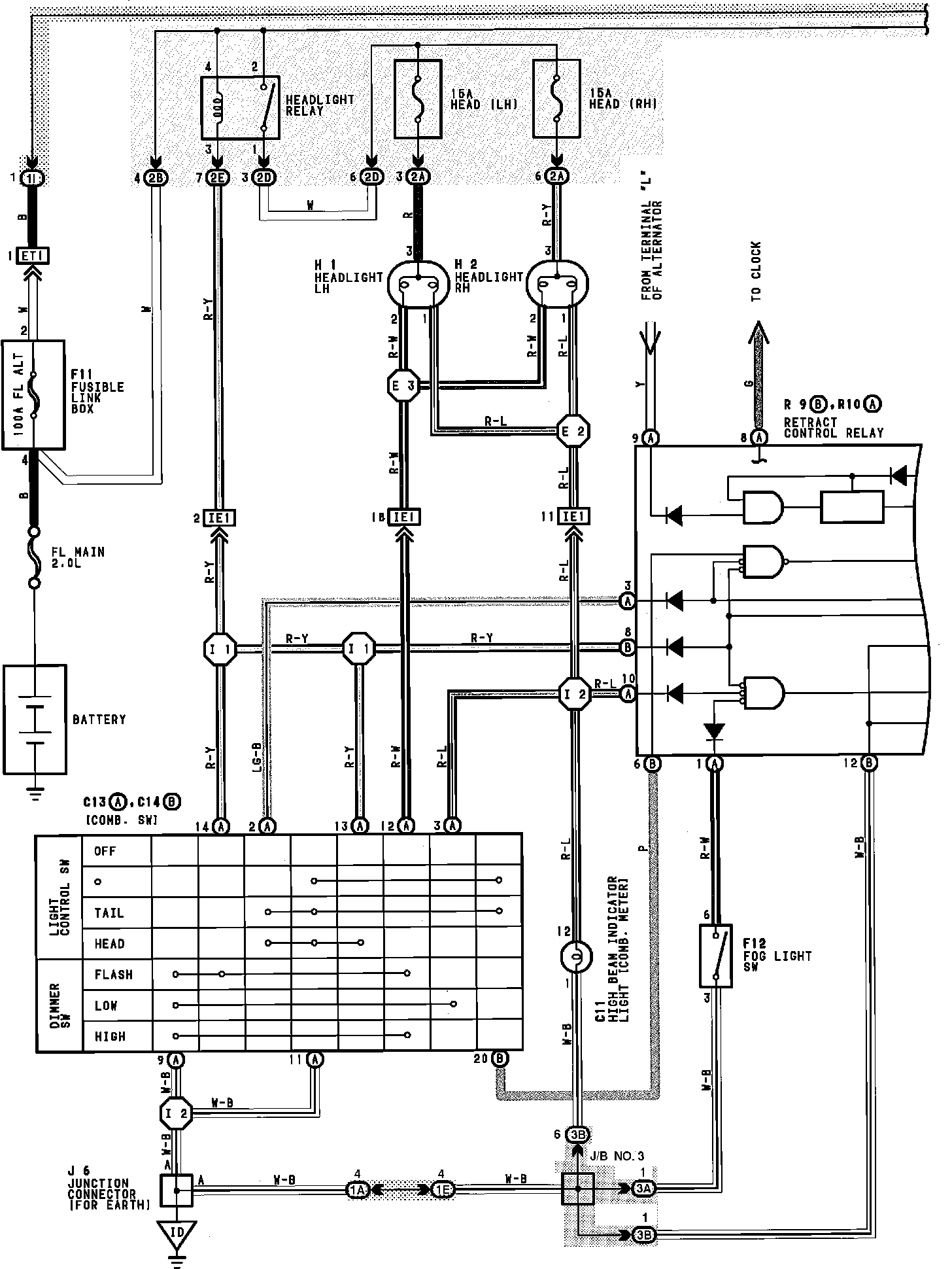

Fog Lights And Headlights - Part 1 Of 2:

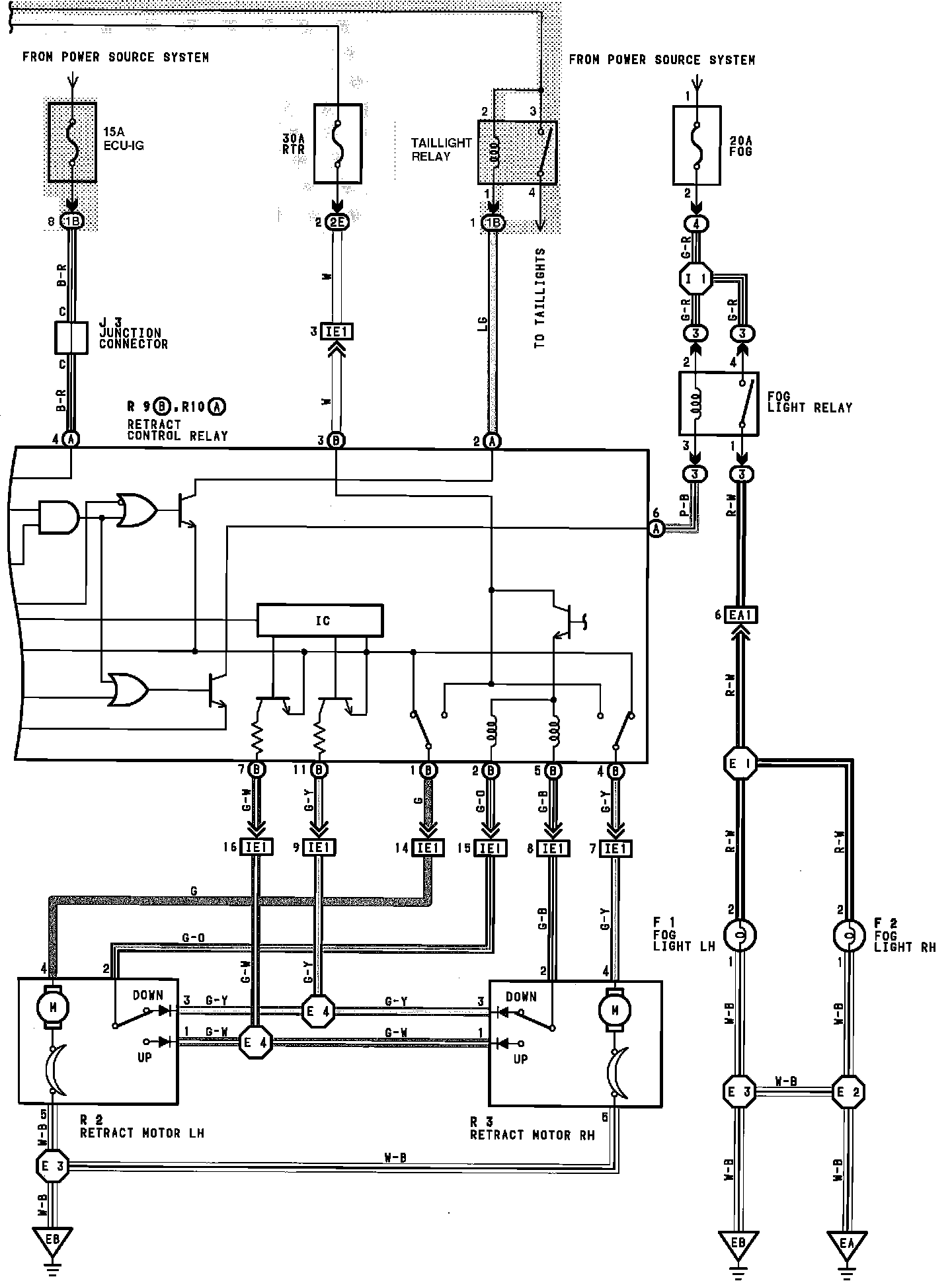

Fog Lights And Headlights - Part 2 Of 2:
