Home >> Toyota >> 1990 >> Celica L4-122 1998cc 2.0L DOHC Turbo (3S-GTE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radiator Cooling Fan Motor >> With Manual A/C

With Manual A/C

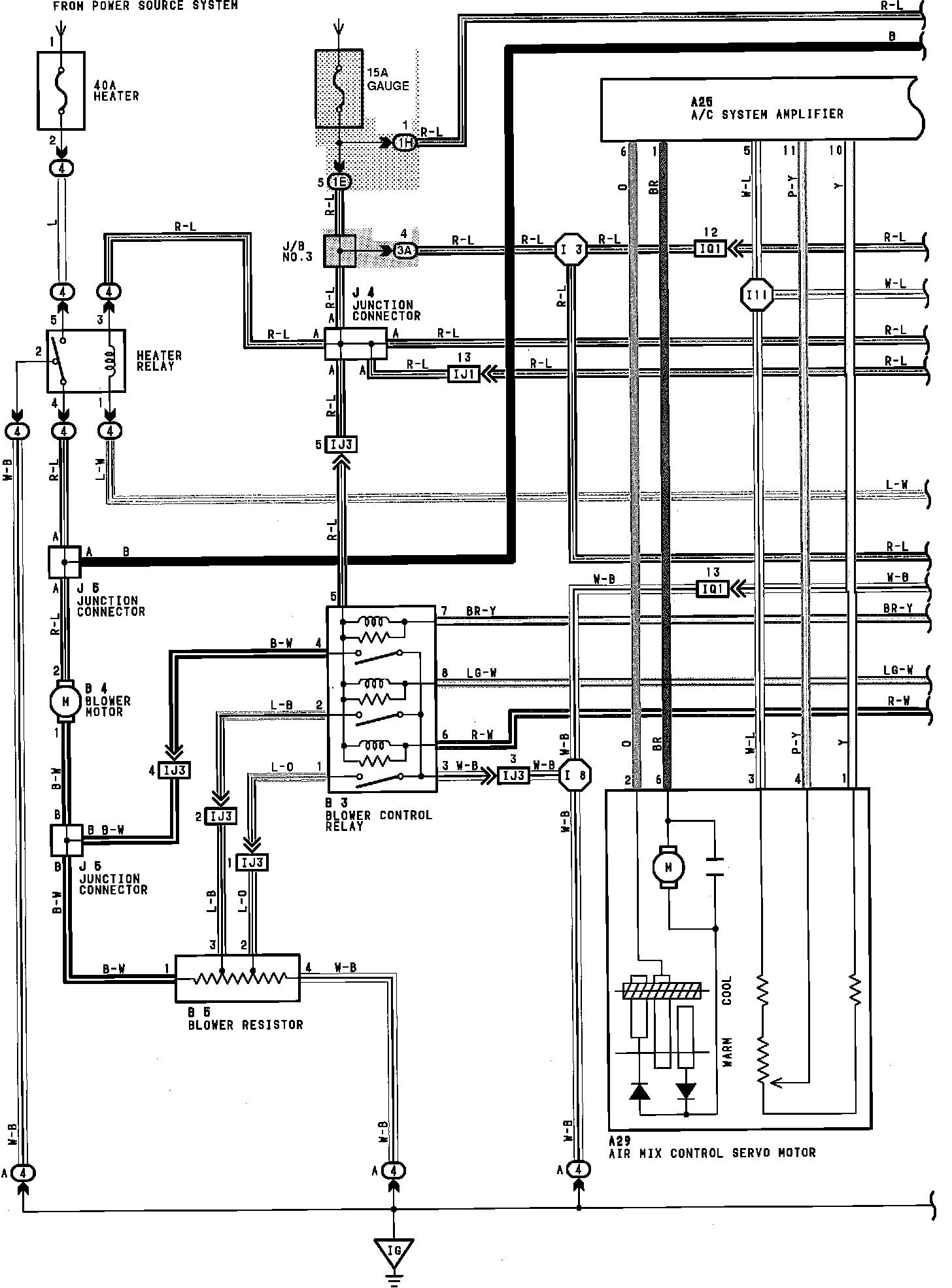

Radiator Fan And Air Conditioning (Manual, For Push Type Of Blower Control Sw):

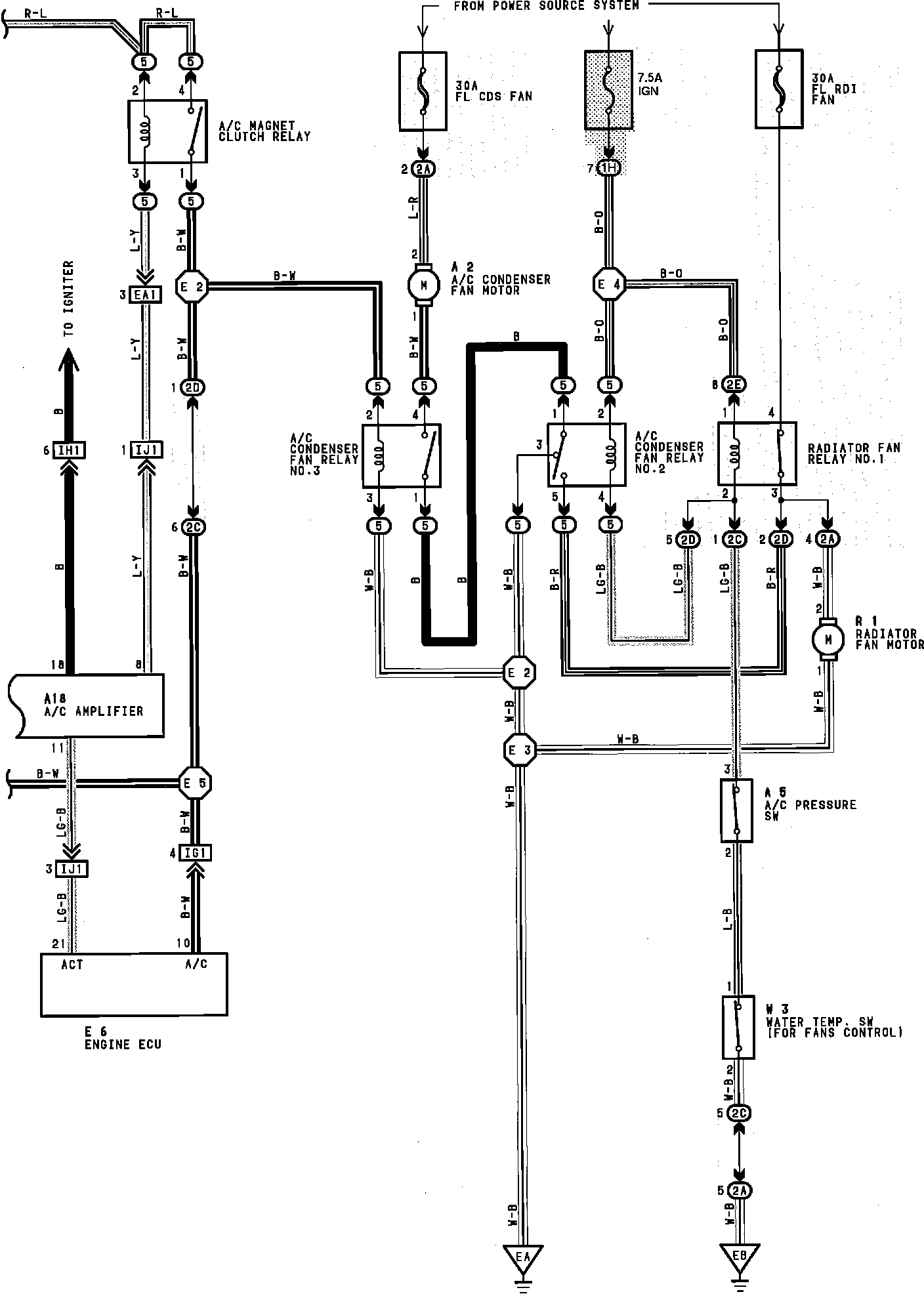

Radiator Fan And Air Conditioning (Manual, For Push Type Of Blower Control Sw):

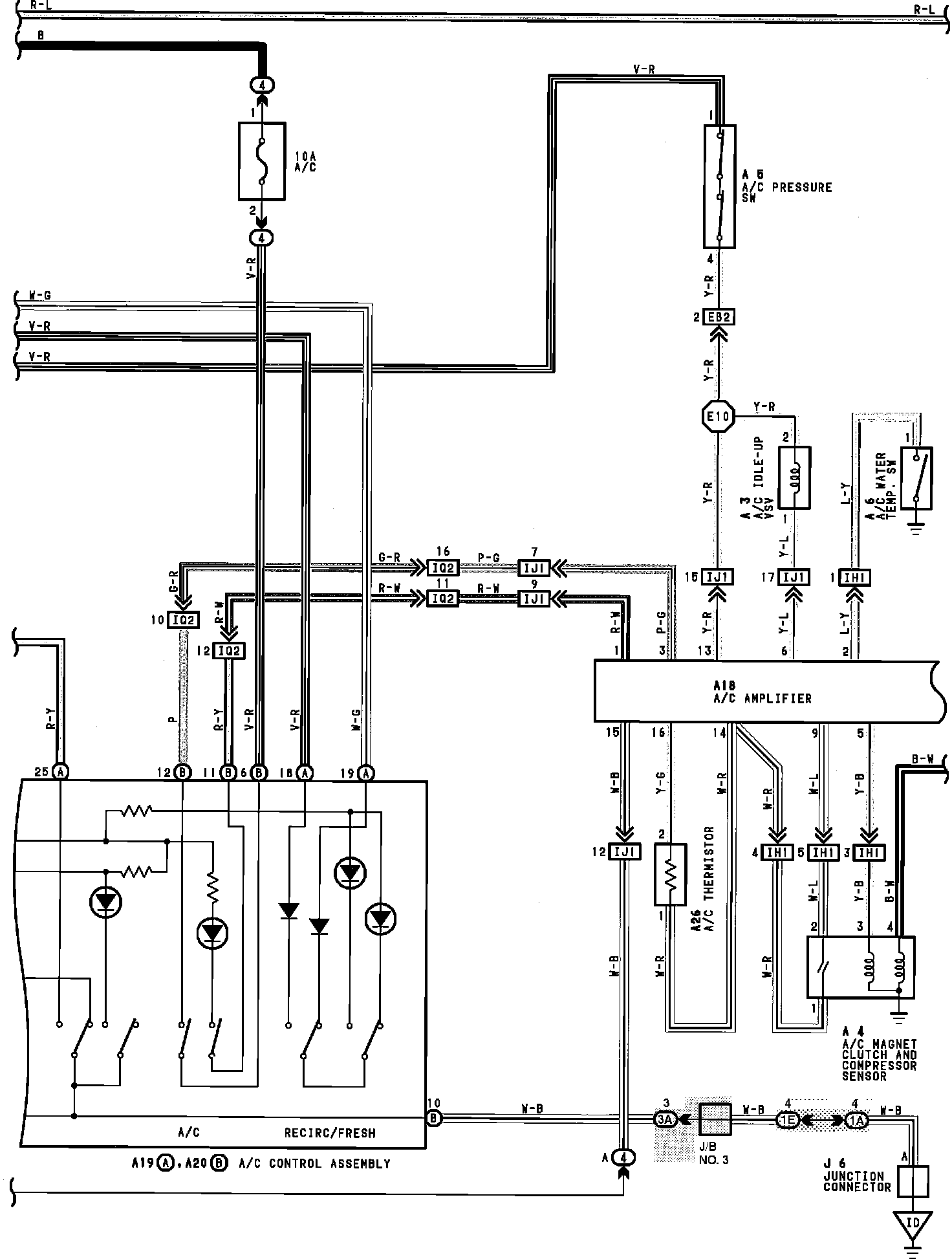

Radiator Fan And Air Conditioning (Manual, For Push Type Of Blower Control Sw):

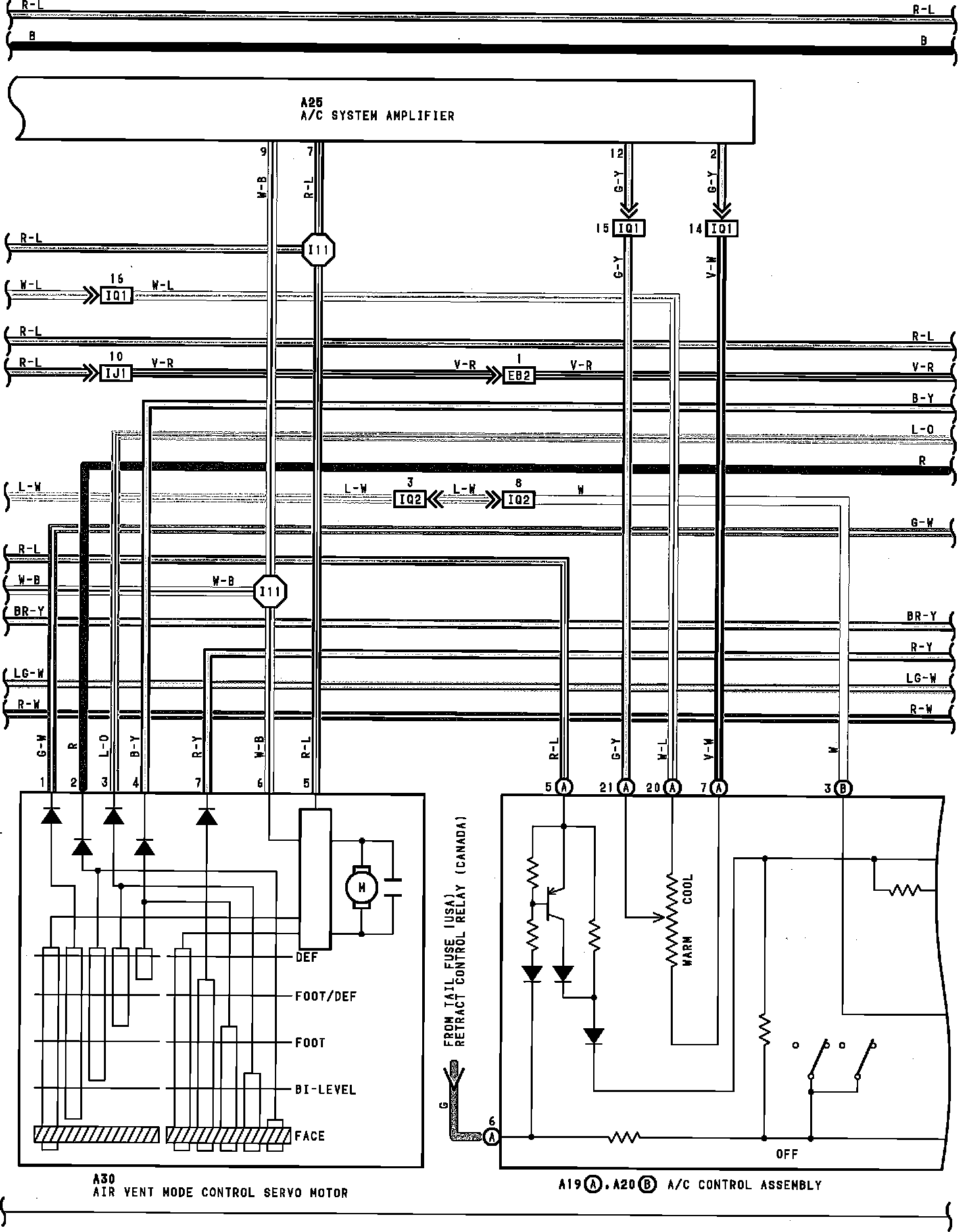

Radiator Fan And Air Conditioning (Manual, For Push Type Of Blower Control Sw):



Radiator Fan And Air Conditioning (Manual, For Push Type Of Blower Control Sw):
