Engine Compartment
Engine Compartment

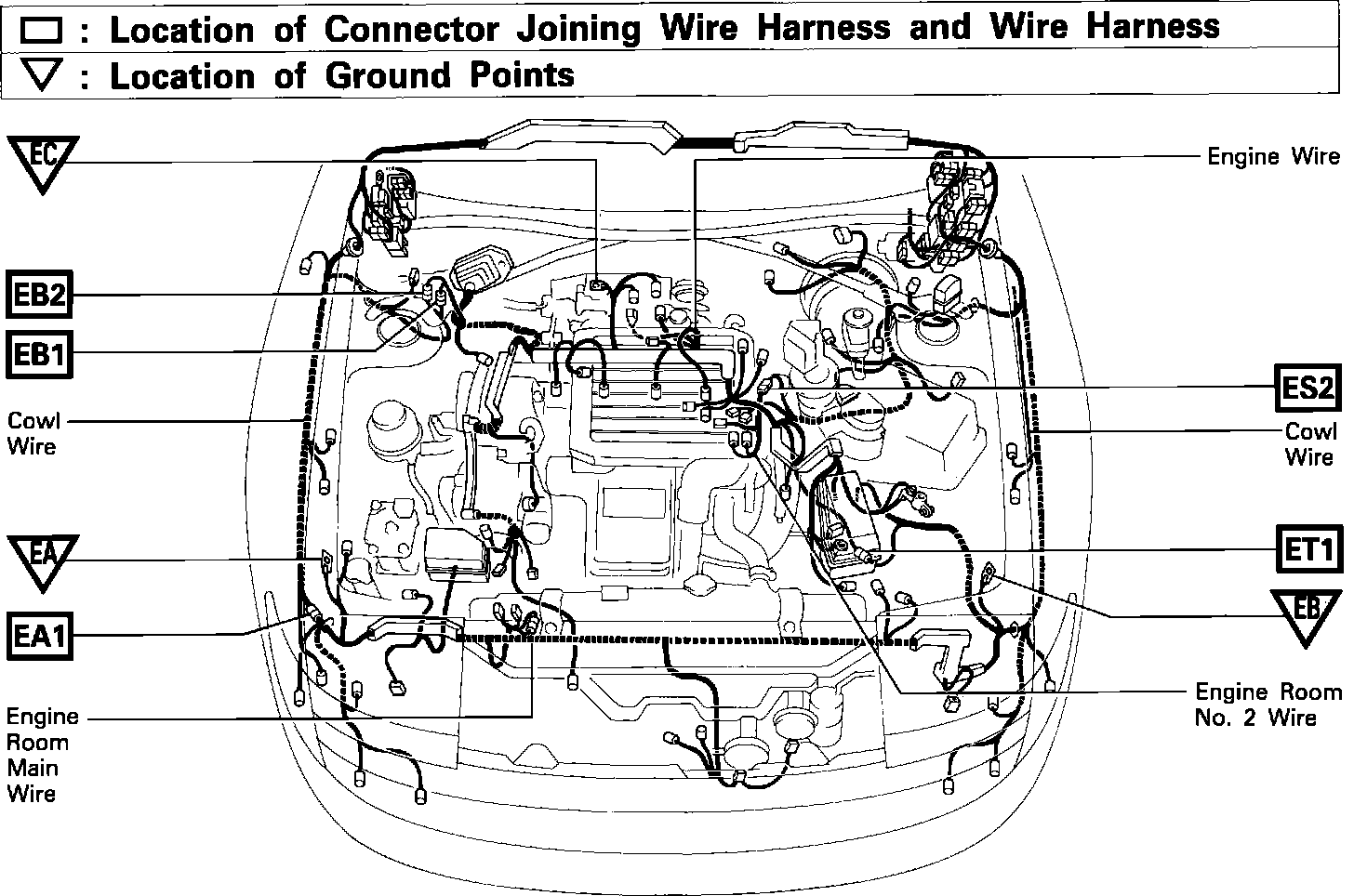

Locations Of Connector Joining Wire Harness, Wire Harness And Ground Points:
