Torque Specifications

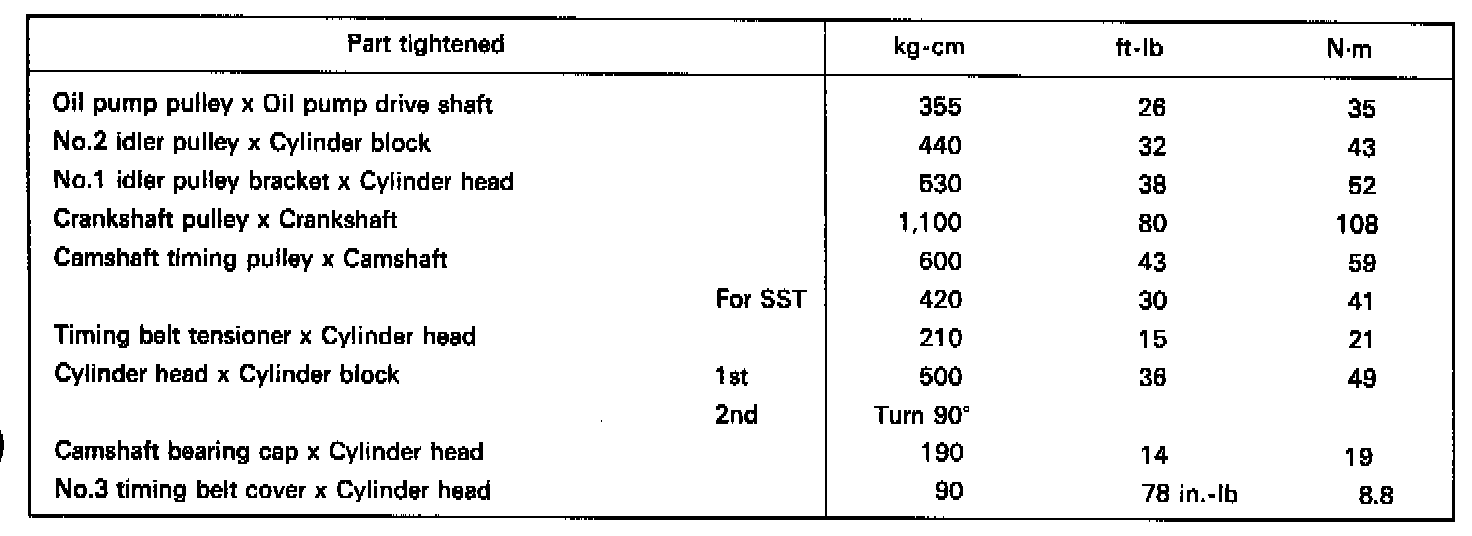

3S-GTE Torque Specifications (1 Of 2):

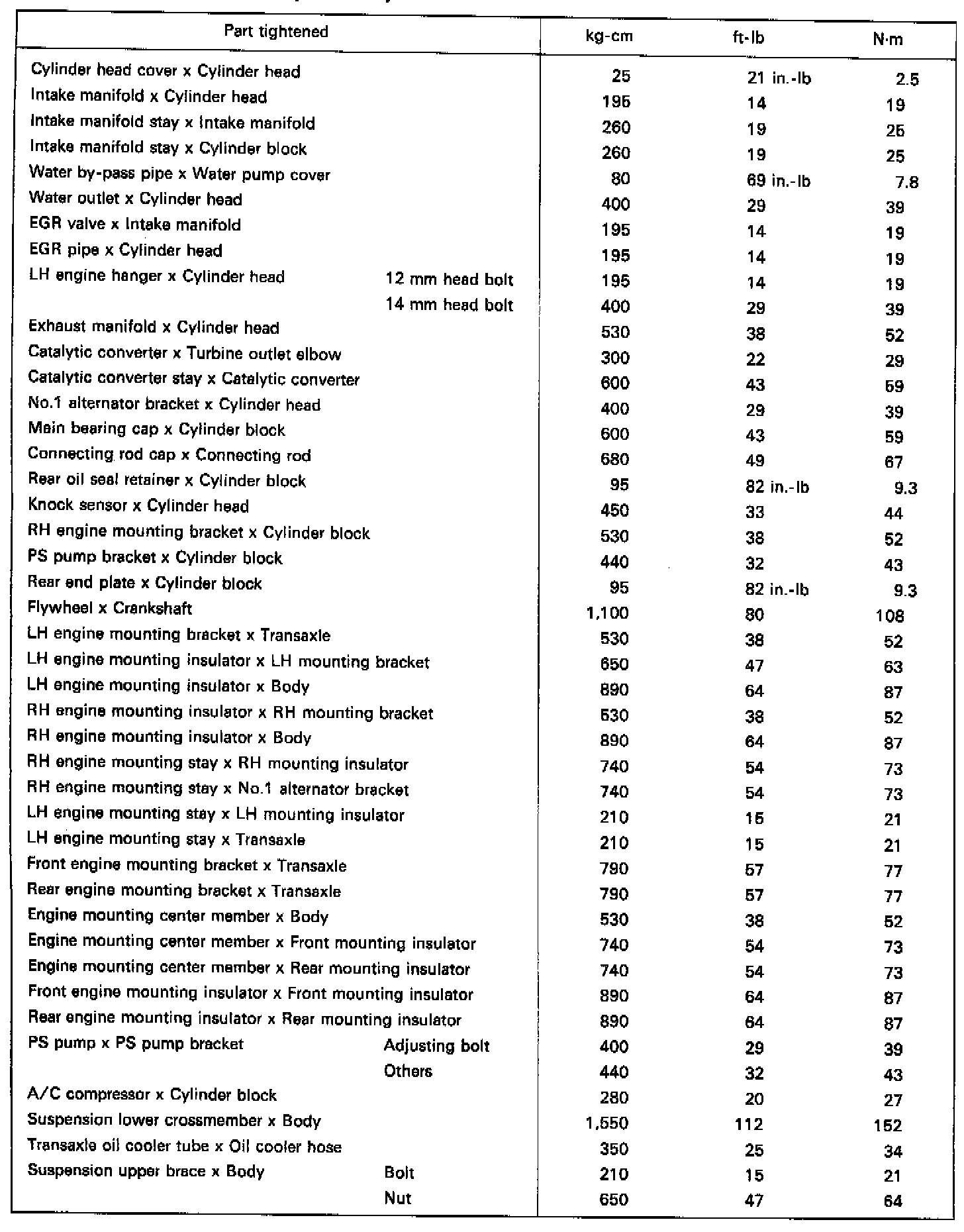

3S-GTE Torque Specifications (2 Of 2):

Torque Specifications

Fig. 6 Intake & Exhaust Camshaft Bearing Cap Bolt Loosening Sequence.:

Camshaft Bearing Cap Removal Sequence

Fig. 10 Intake & Exhaust Camshaft Bearing Cap Bolt Tightening Sequence.:

Camshaft Bearing Cap Torque Sequence

Fig. 7 Cylinder Head Bolt Loosening Sequence.:

Cylinder Head Removal Sequence

Fig. 8 Cylinder Head Bolt Tightening Sequence.:

Cylinder Head Torque Sequence

Crankshaft Main Bearing Cap Torque Sequence

M/T Flywheel Torque Sequence
