Instrument Panel and Center Console

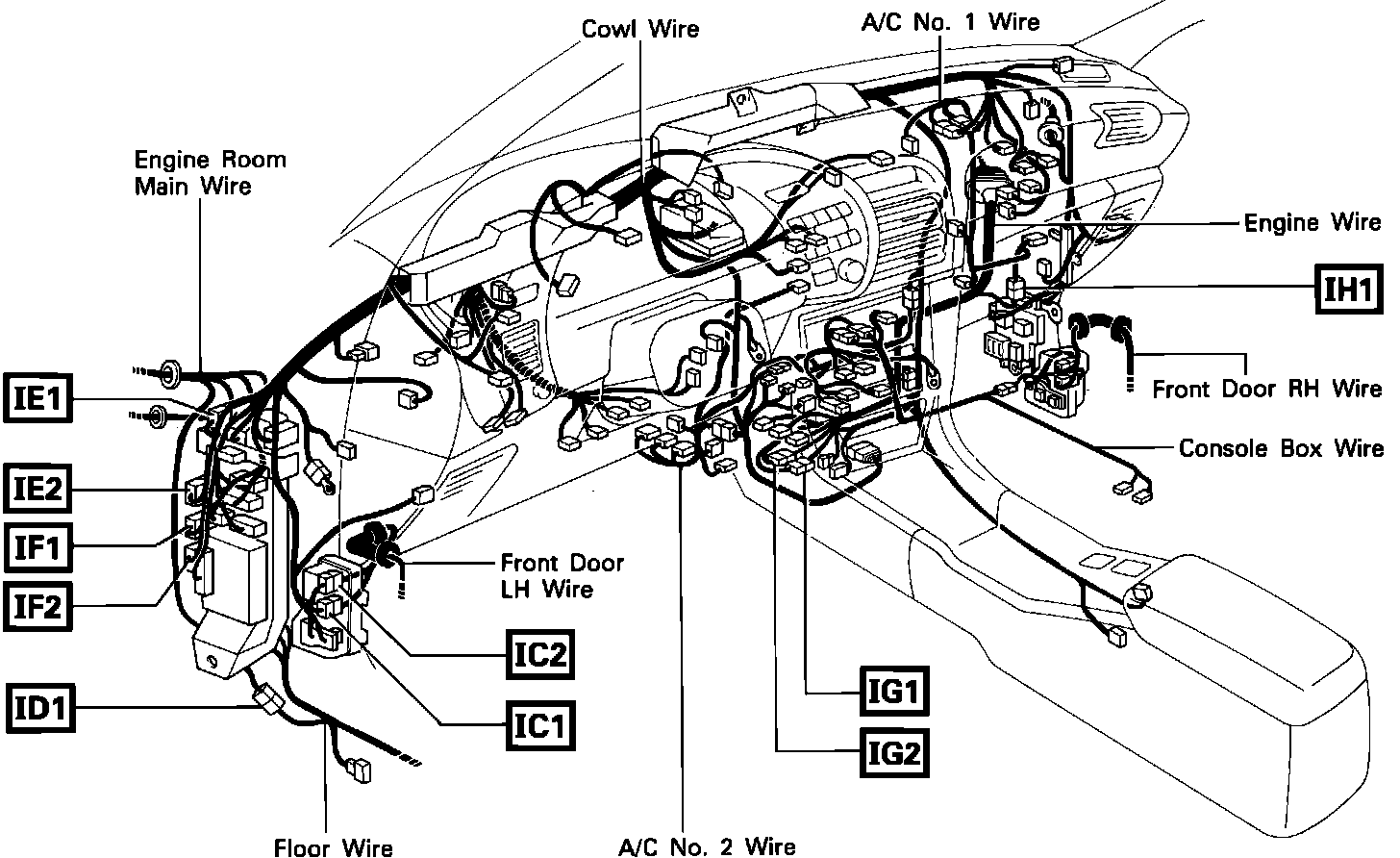

Location Of Connector Joining Wire Harness And Wire Harness:

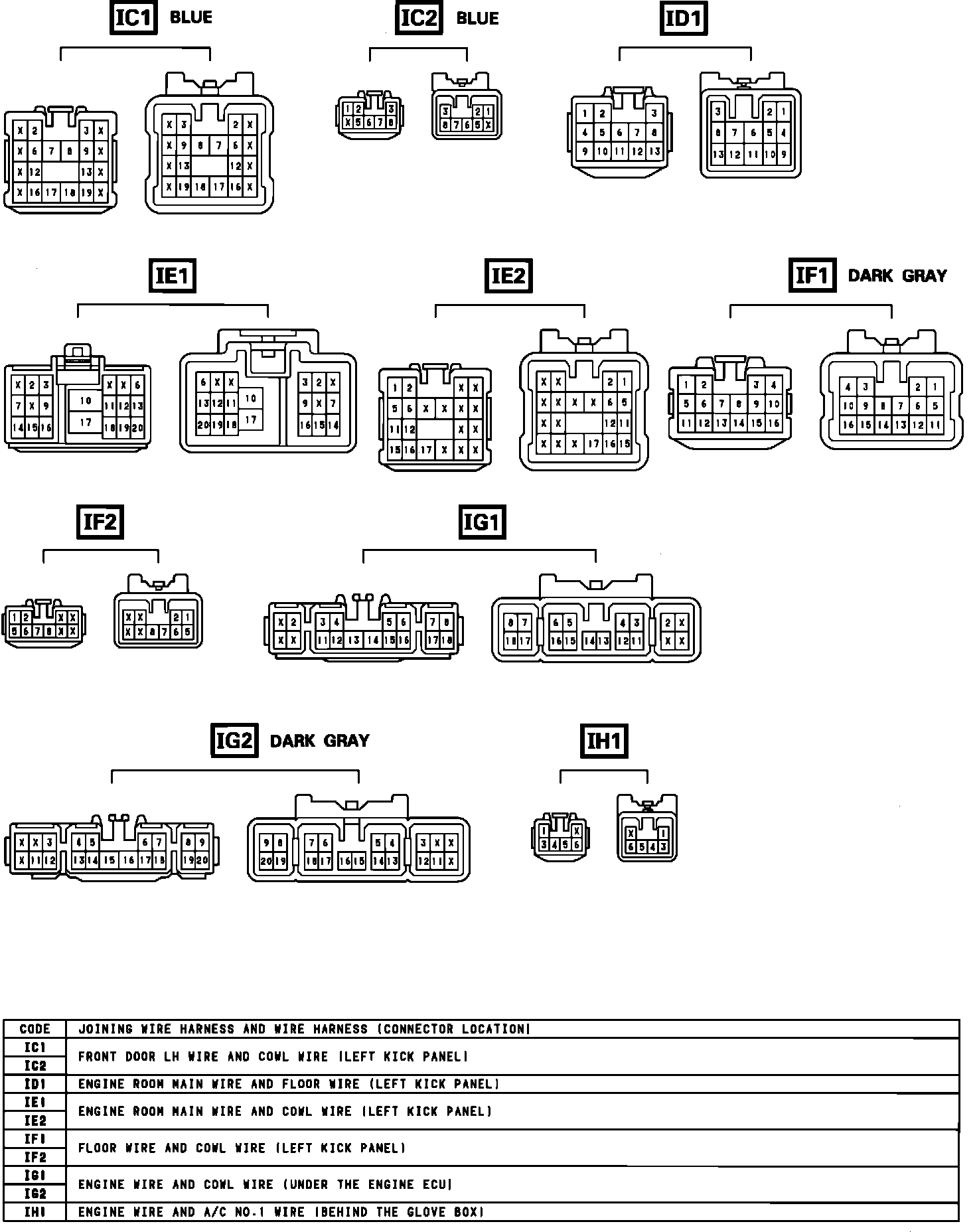

Connector Joining Wire Harness And Wire Harness:

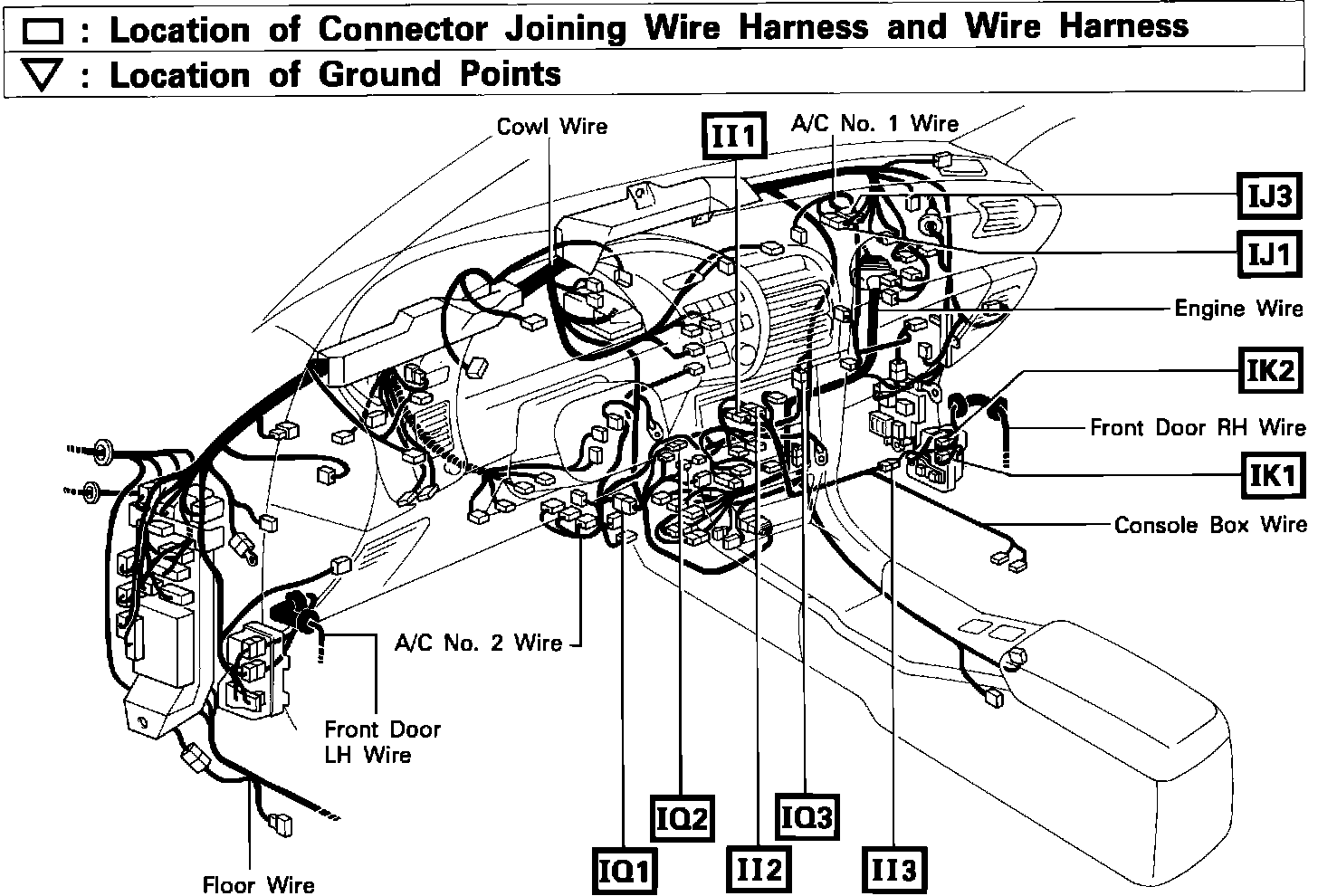

Locations Of Connector Joining Wire Harness, Wire Harness And Ground Points:

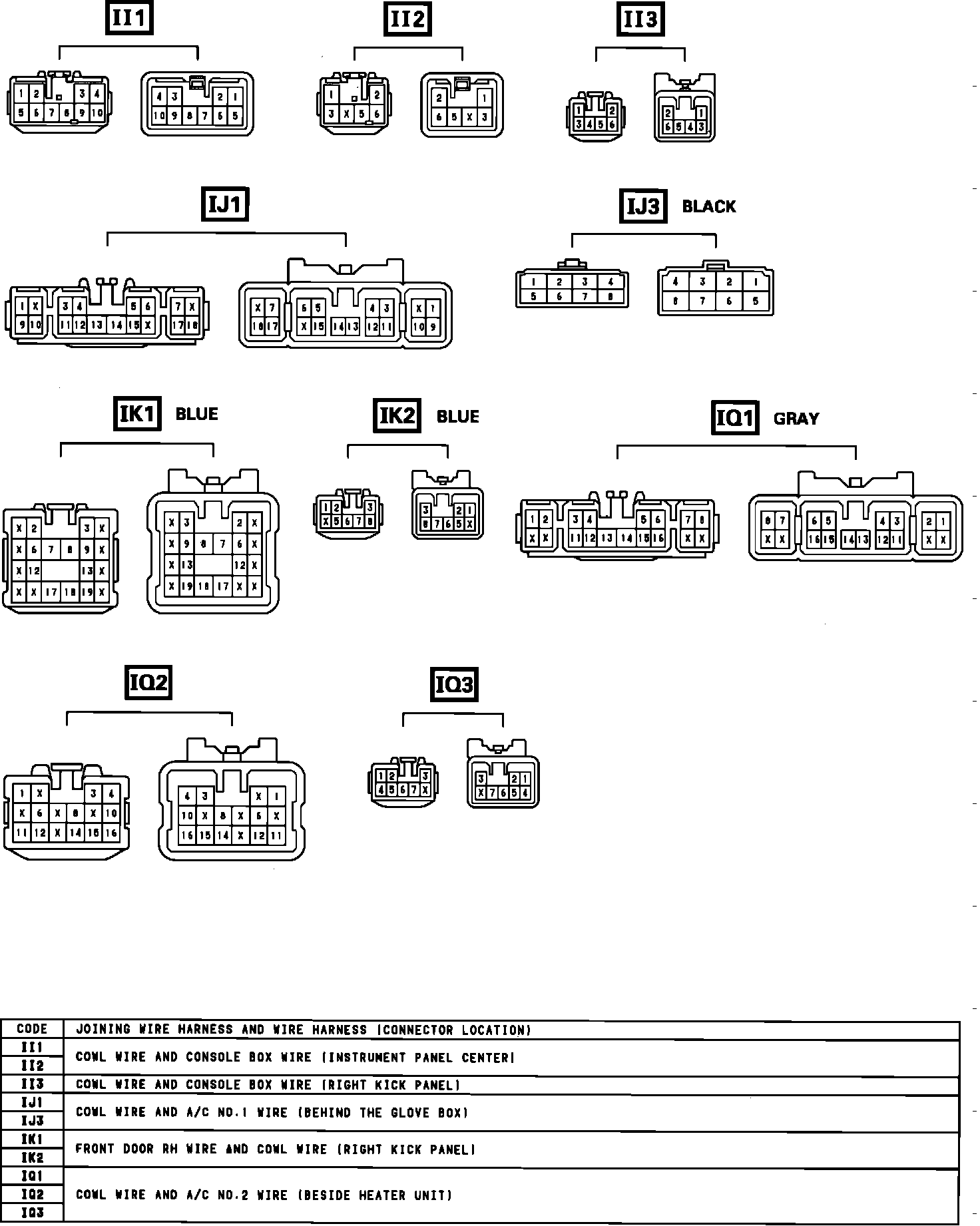

Connector Joining Wire Harness And Wire Harness:
