Number 2

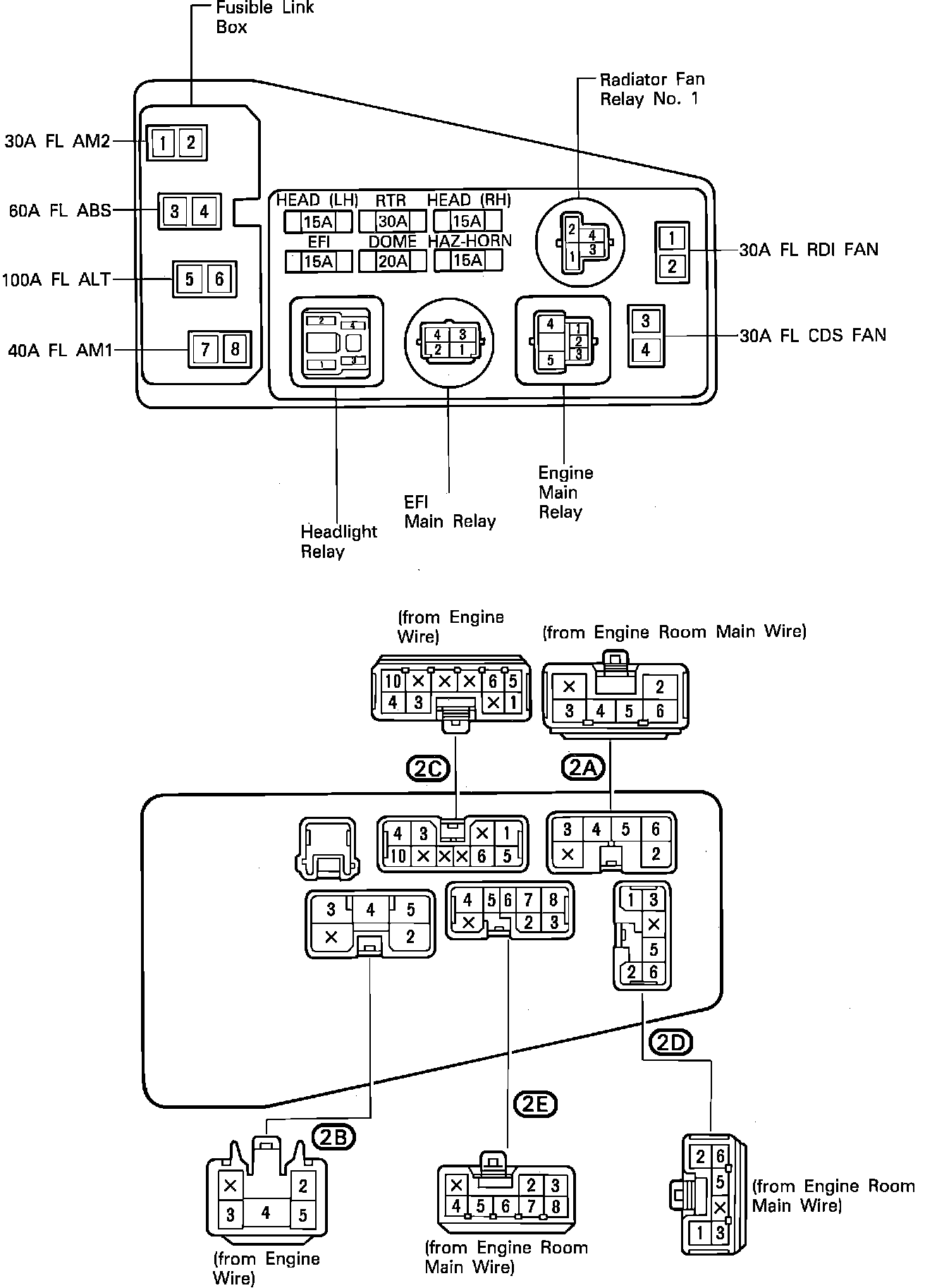

Fuse Panel: Junction Block No. 2 (Inner Circuit):



Fuse Panel: Junction Block No. 2 (Near The Battery):
