Ground Points
>>
BH, BI, BK, BL, ID, Ie, If and Ig
BH, BI, BK, BL, ID, Ie, If and Ig

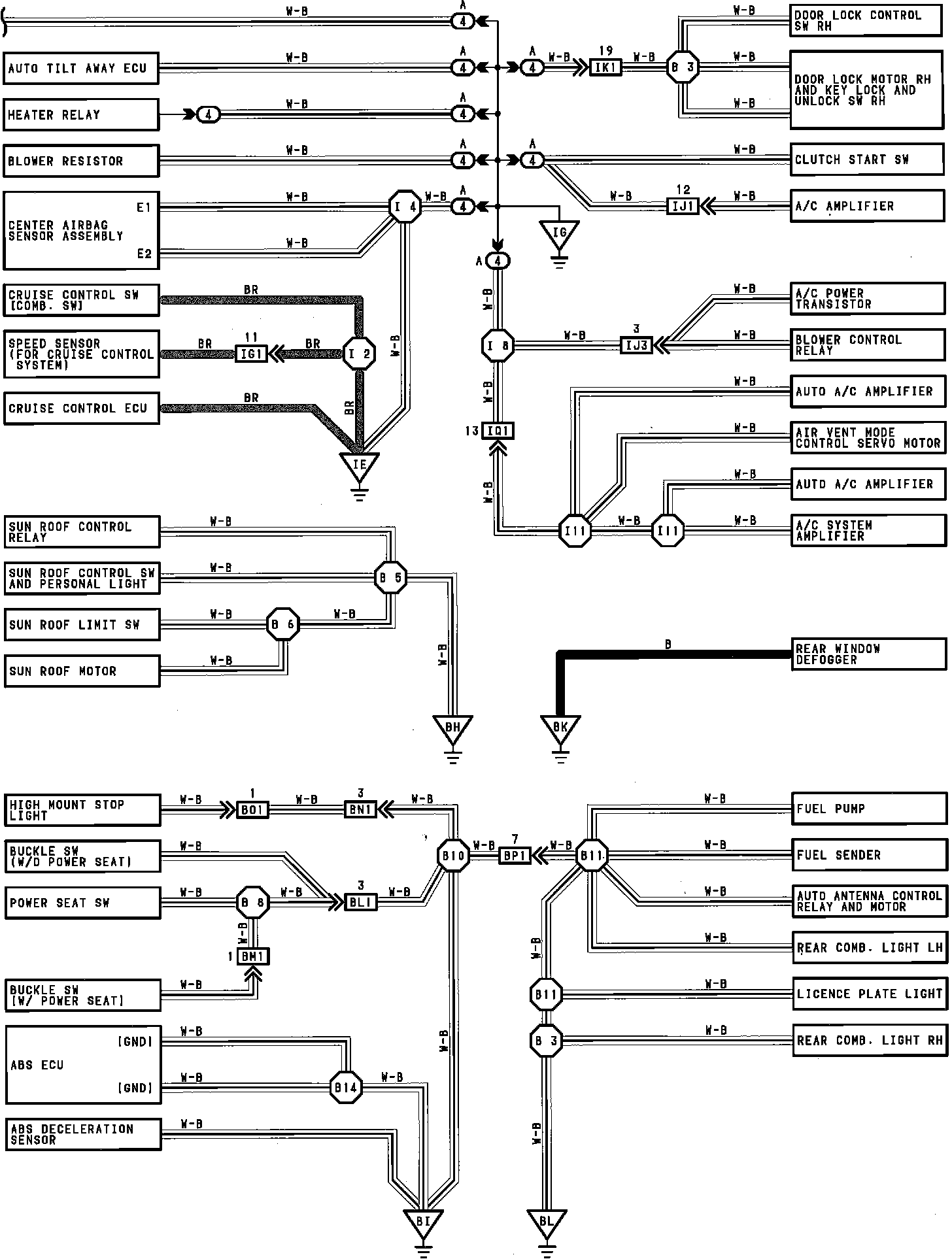

Ground Distribution:

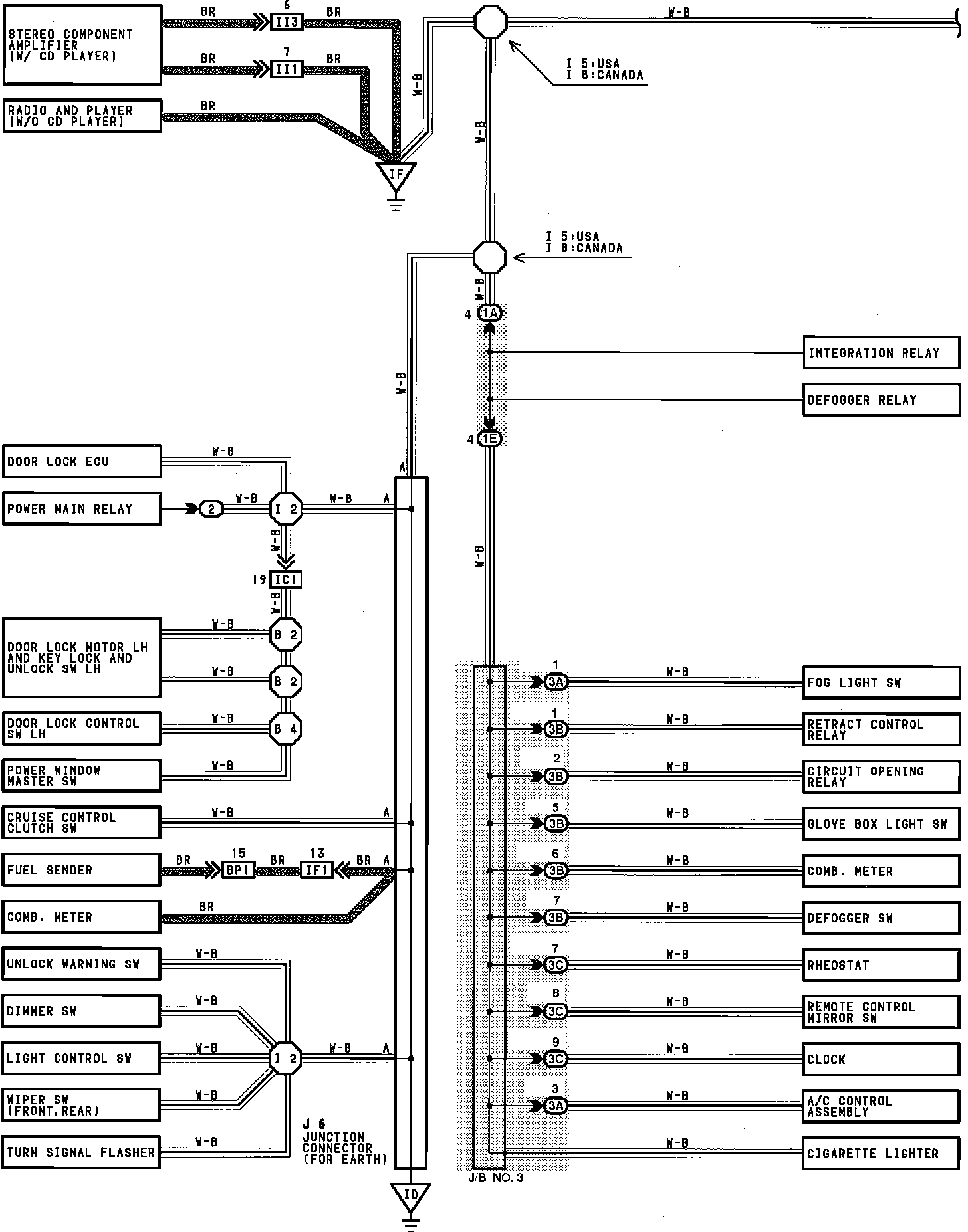

Ground Distribution:
