Component Inspection

1. Disconnect the ISC valve connector.

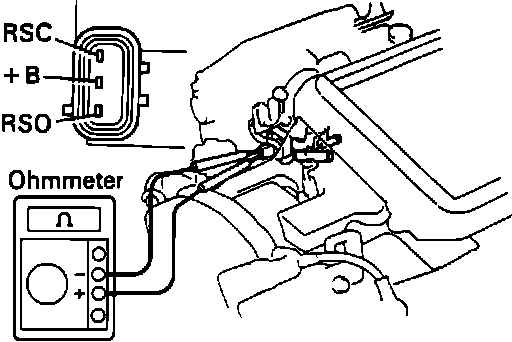

2. Using an Ohmmeter, measure the resistance between terminal +B and terminals RSC and RSO.

Testing ISC Valve Resistance:

3. Reading should be 17.7 - 23.9 ohms. If not as specified, replace the ISC valve.
4. Reconnect the ISC valve connector
