EGR Gas Temperature Sensor (California Only)
EGR Gas Temperature Sensor (California Only)

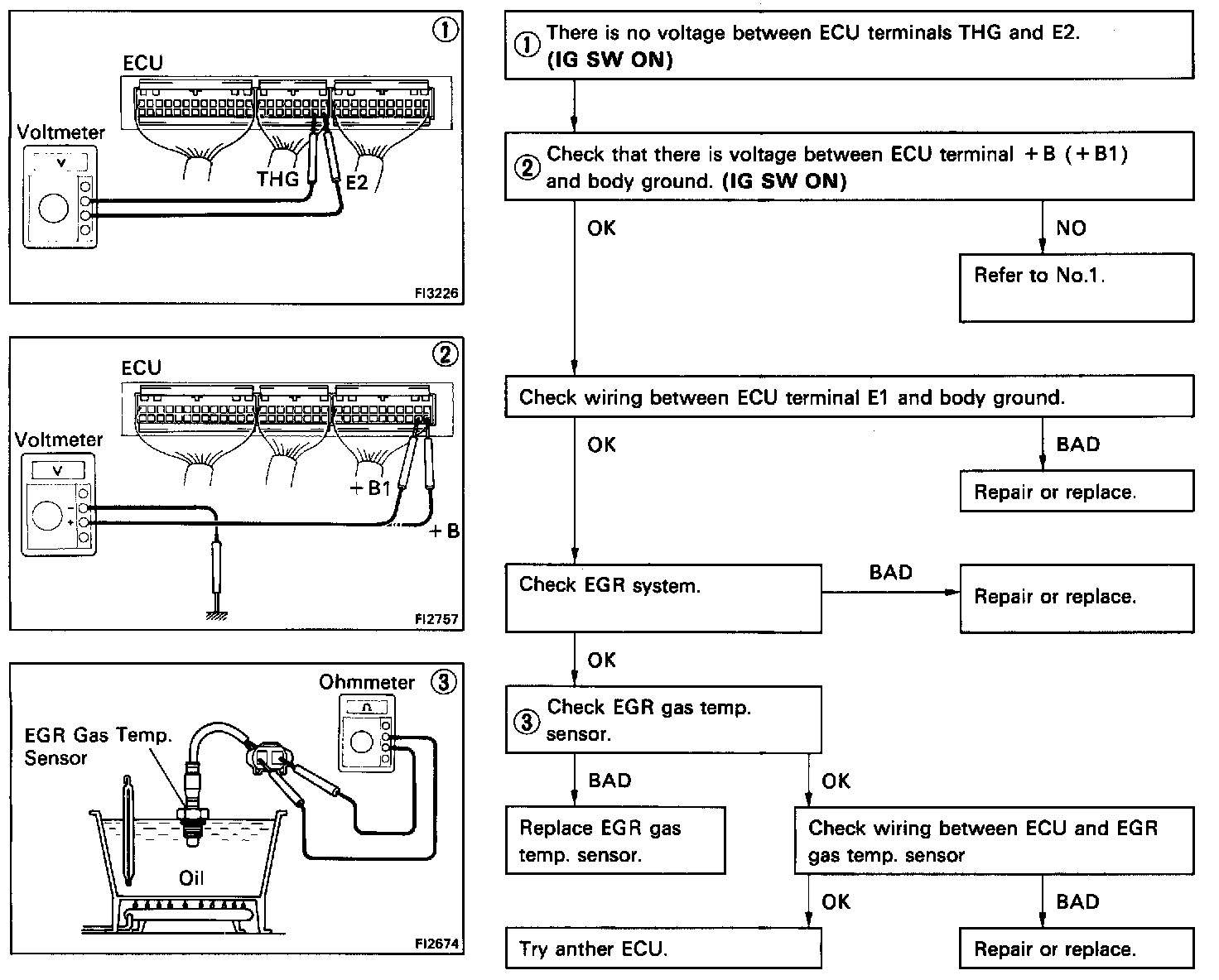

CHART -
EGR
/TEMP. SENSOR TEST
Part 1 Of 2:
Part 2 Of 2:
