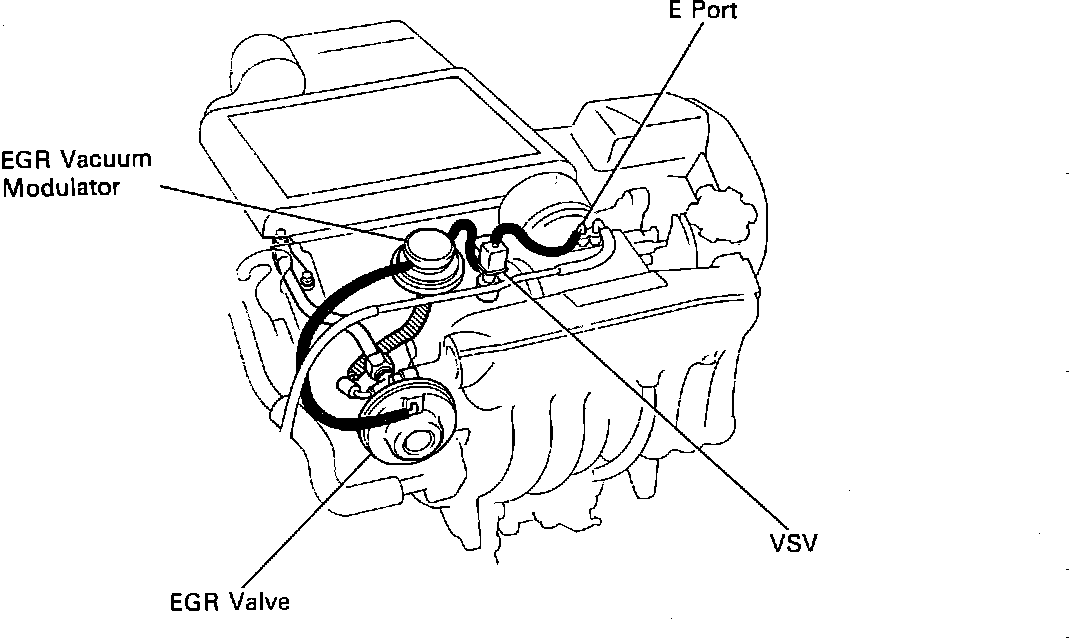

Exhaust Gas Recirculation: Locations

Exhaust Gas Recirculation System:

EGR Valve: Rear, RH side of engine
Vacuum Modulator: Top, RH side of engine
Vacuum Switching Valve (VSV): Top, center of engine
