Select Lever For Servicing

- Ordinarily, there is no need for the ordinary customer to operate anything.
- However, to operate 2 wheels out of the four, the following switches have been installed.

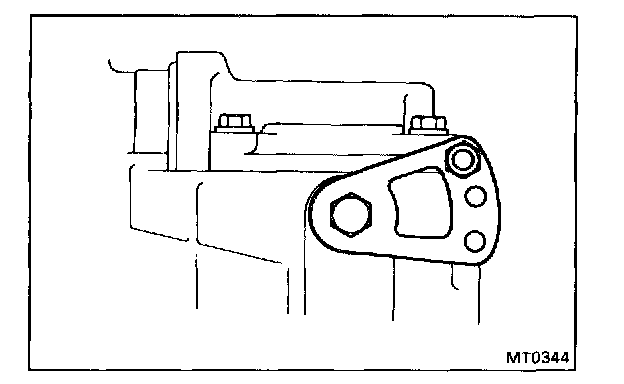

VISCOUS MODE




This is the mode for use during normal driving. After finishing inspection, be sure to return the lever to this mode and attach the lock bolt.

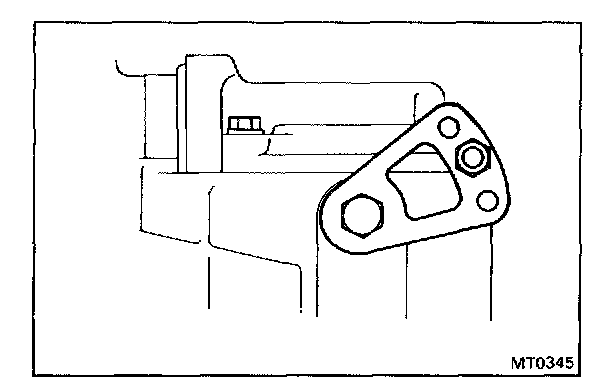

VISCOUS FREE MODE




This mode cuts off the driving force transmitted from the center differential to the control coupling, and makes the center differential free.

NOTE: Never use this during normal driving.

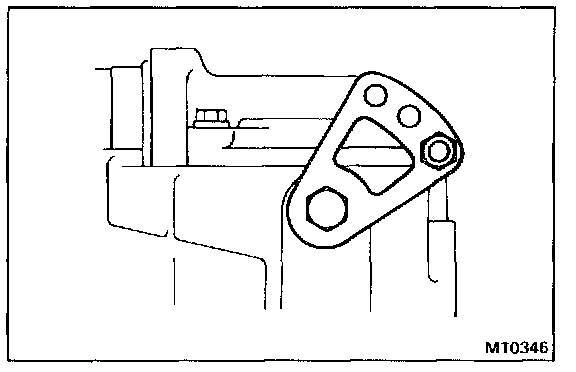

FF MODE




This mode cuts off the driving force transmitted from the center differential to the transfer, and locks the center differential.
However, when the lever is shifted to this mode, the driving force is transmitted only to the front wheels.

NOTE: Never use this during normal driving. It will have a bad effect on the transaxle.
