Disassembly of Output Shaft Assembly

1. MEASURE FIRST AND SECOND GEAR THRUST CLEARANCE

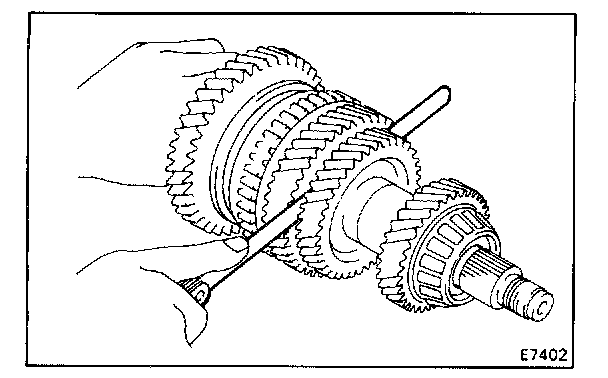

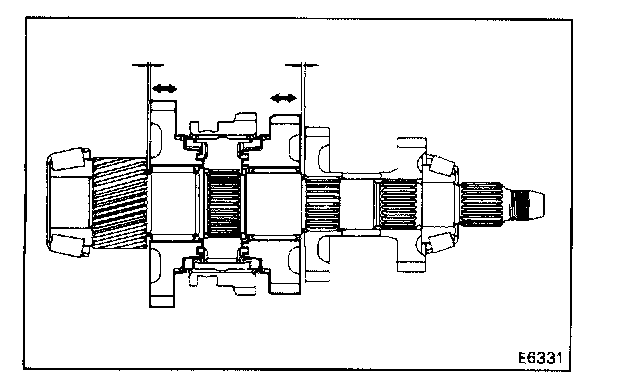

Using a feeler gauge, measure the thrust clearance.

Standard clearance:
1st gear 0.10 - 0.35 mm (0.0039 - 0.0138 in.)
2nd gear 0.10 - 0.45 mm (0.0039 - 0.0177 in.)

Maximum clearance:
1st gear 0.40 mm (0.0157 in.)
2nd gear 0.50 mm (0.0197 in.)




2. CHECK OIL CLEARANCE OF FIRST AND SECOND GEAR

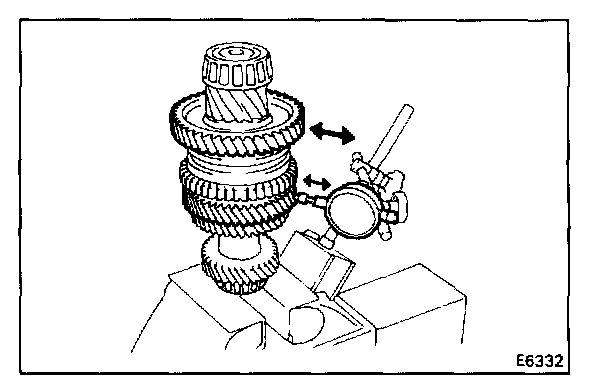

Using a dial indicator, measure the oil clearance between the gear and shaft.

Standard clearance:
1st gear 0.009 - 0.051 mm
(0.0004 - 0.0020 in.)
2nd gear 0.009 - 0.053 mm
(0.0004 - 0.0020 in.)

Maximum clearance: 0.080 mm (0.003 in.)

If the clearance exceeds the limit, replace the gear, needle roller bearing or shaft.




3. REMOVE OUTPUT SHAFT REAR BEARING. FORTH DRIVEN GEAR AND SPACER

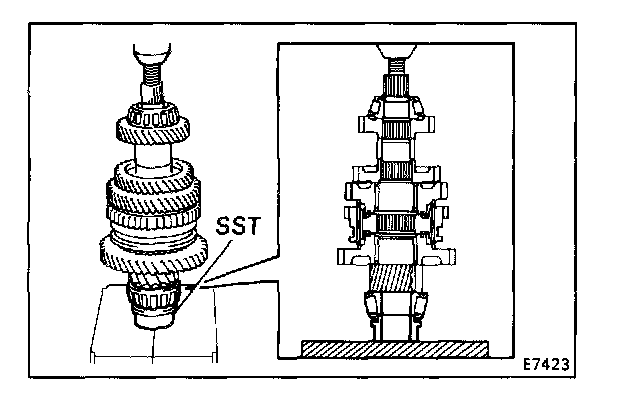

a. Using a press, remove the bearing and 4th driven gear.
b. Remove the spacer




4. REMOVE THIRD DRIVEN GEAR AND SECOND GEAR

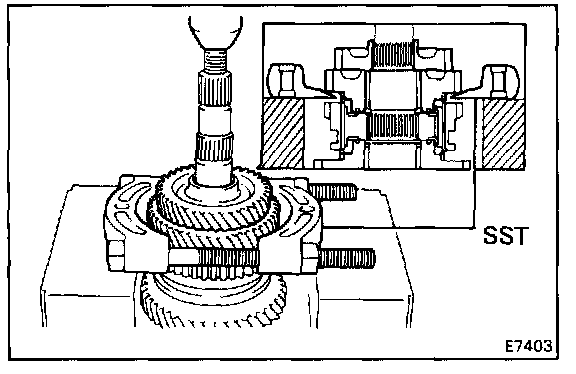

Using SST and a press, remove the 3rd driven gear and 2nd gear.
SST 09950-00020
5. REMOVE NEEDLE ROLLER BEARINGS, SPACER AND SYNCHRONIZER RING




6. REMOVE SNAP RING

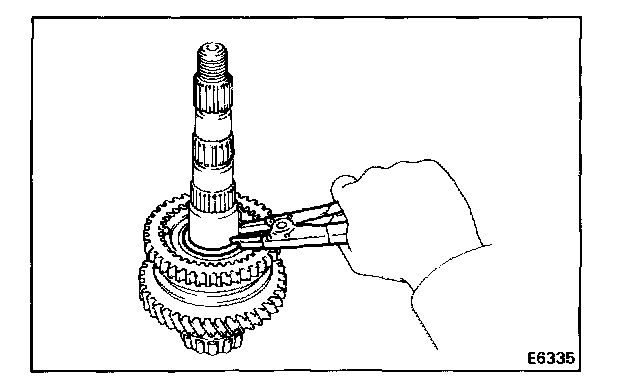

Using snap ring pliers, remove the snap ring.




7. REMOVE NO.1 HUB SLEEVE ASSEMBLY AND FIRST GEAR

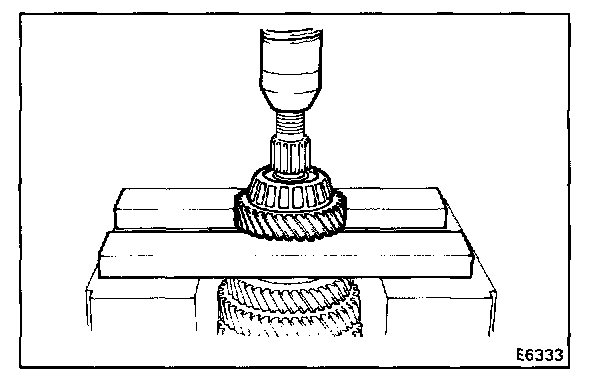

Using a press, remove No.1 hub sleeve and 1st gear.
8. REMOVE SYNCHRONIZER RING AND NEEDLE ROLLER BEARING




9. IF NECESSARY, REPLACE OUTPUT SHAFT FRONT BEARING

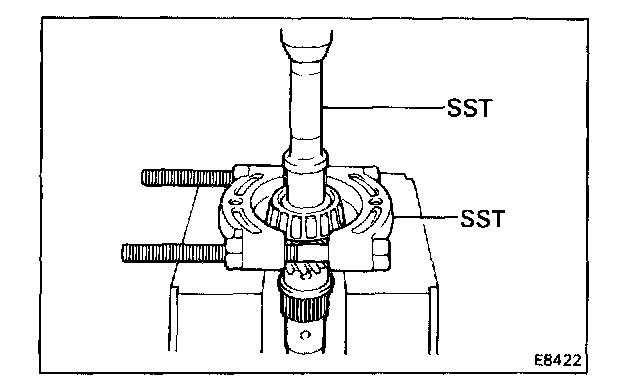

a. Using SST and a press, remove the bearing.
SST 09307-12010, 09950-00020




b. Using SST and a press, install a new bearing.
SST 09316-60010 (09316-00070)
