Main Point of Removal and Installation

1. REMOVE TRANSAXLE ASSEMBLY

HINT: When removing transaxle from engine, remove as the following procedure since cylinder block rib contacts transfer case.

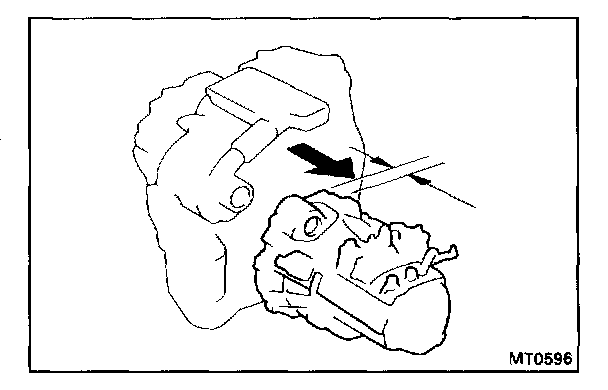

a. Pull straight until there are space of 60 - 80 mm (2 - 3 in.) between engine and transaxle case

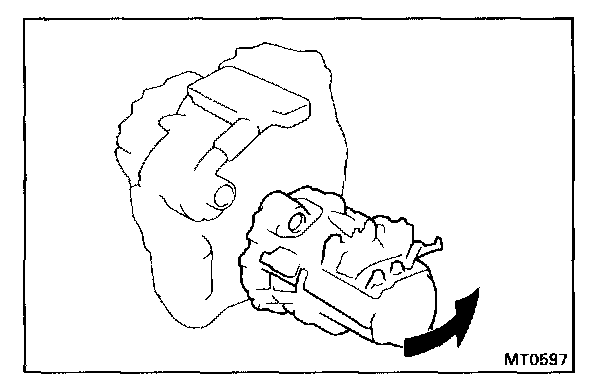

b. Move the transmission case cover to the arrow in the illustration.

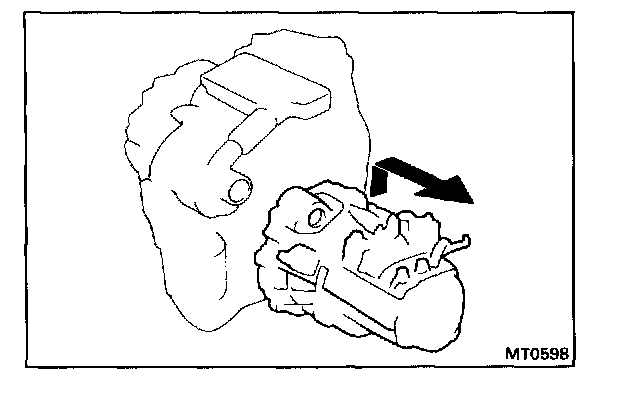

c. While holding transfer output slightly, pull out whole transaxle.

2. INSTALL TRANSAXLE ASSEMBLY FOLLOWING REMOVAL SEQUENCE IN REVERSE
