Home >> Toyota >> 1990 >> Celica L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> Circuit Test >> Circuit Test (W/O ECT)

Circuit Test (W/O ECT)

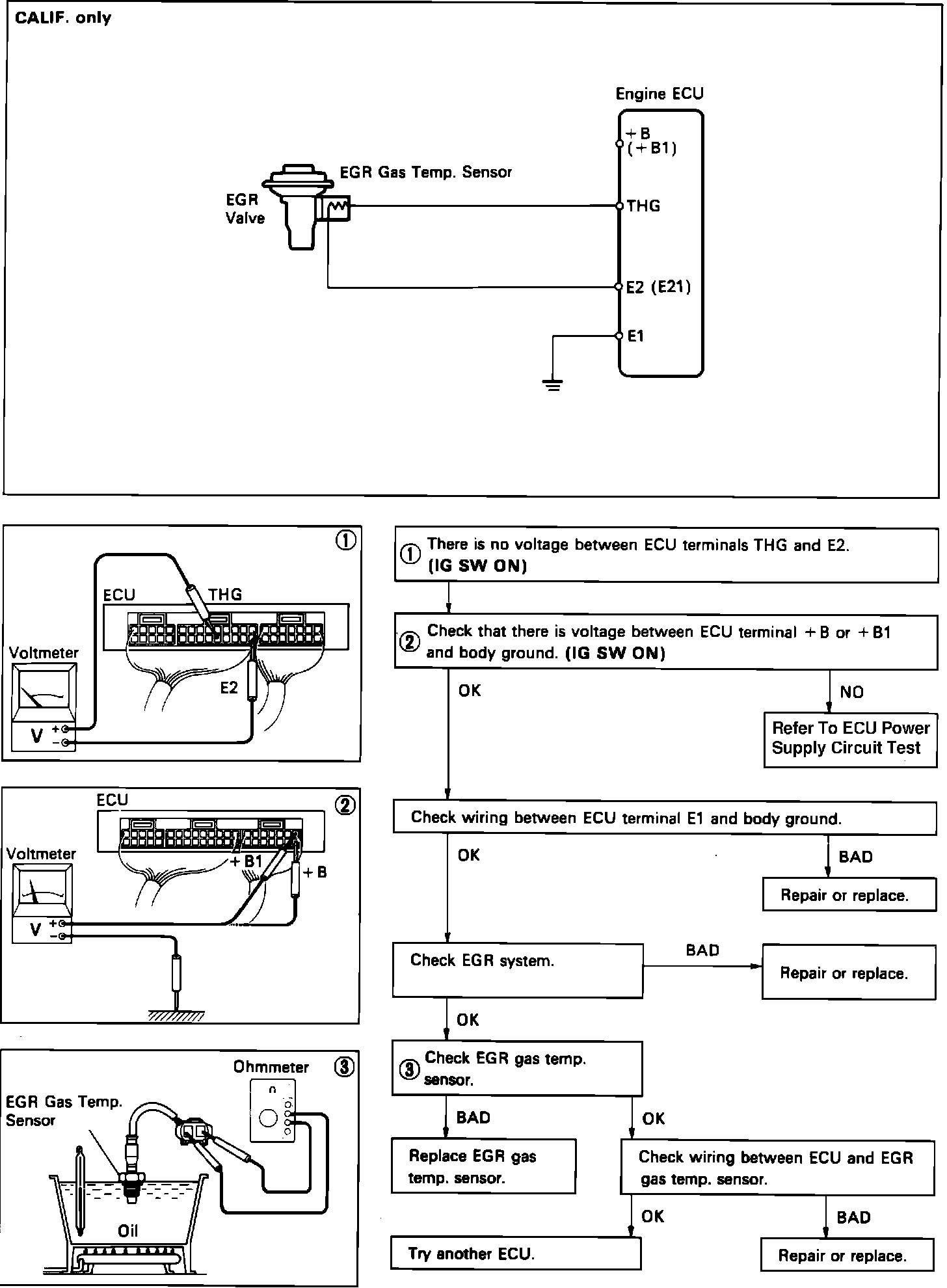

EGR Gas Temperature Sensor Circuit Test (w/o ECT):
