Home
>>
Toyota
>>
1990
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
Vacuum Type
Vacuum Type

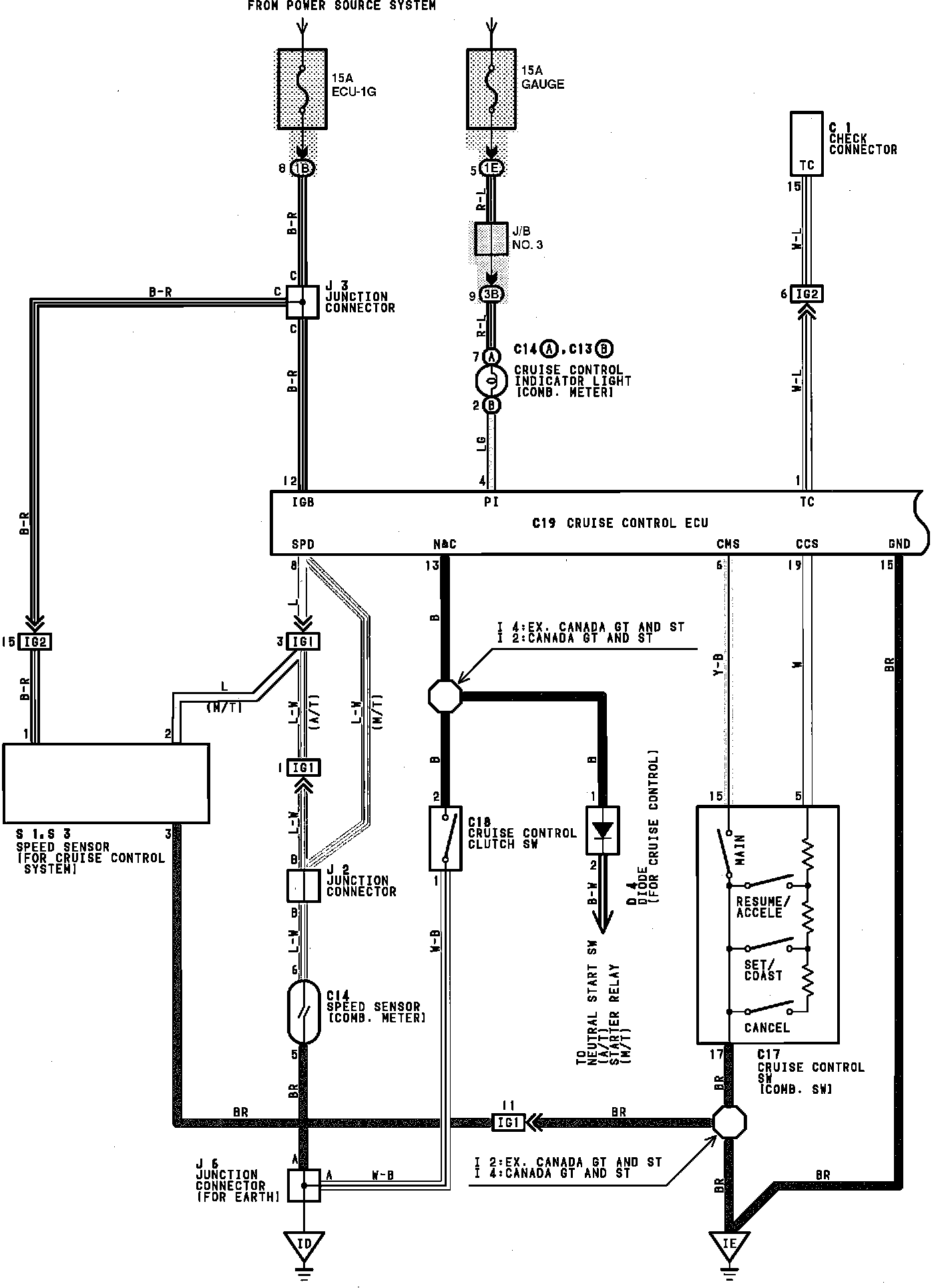

Cruise Control (Vaccum Type):

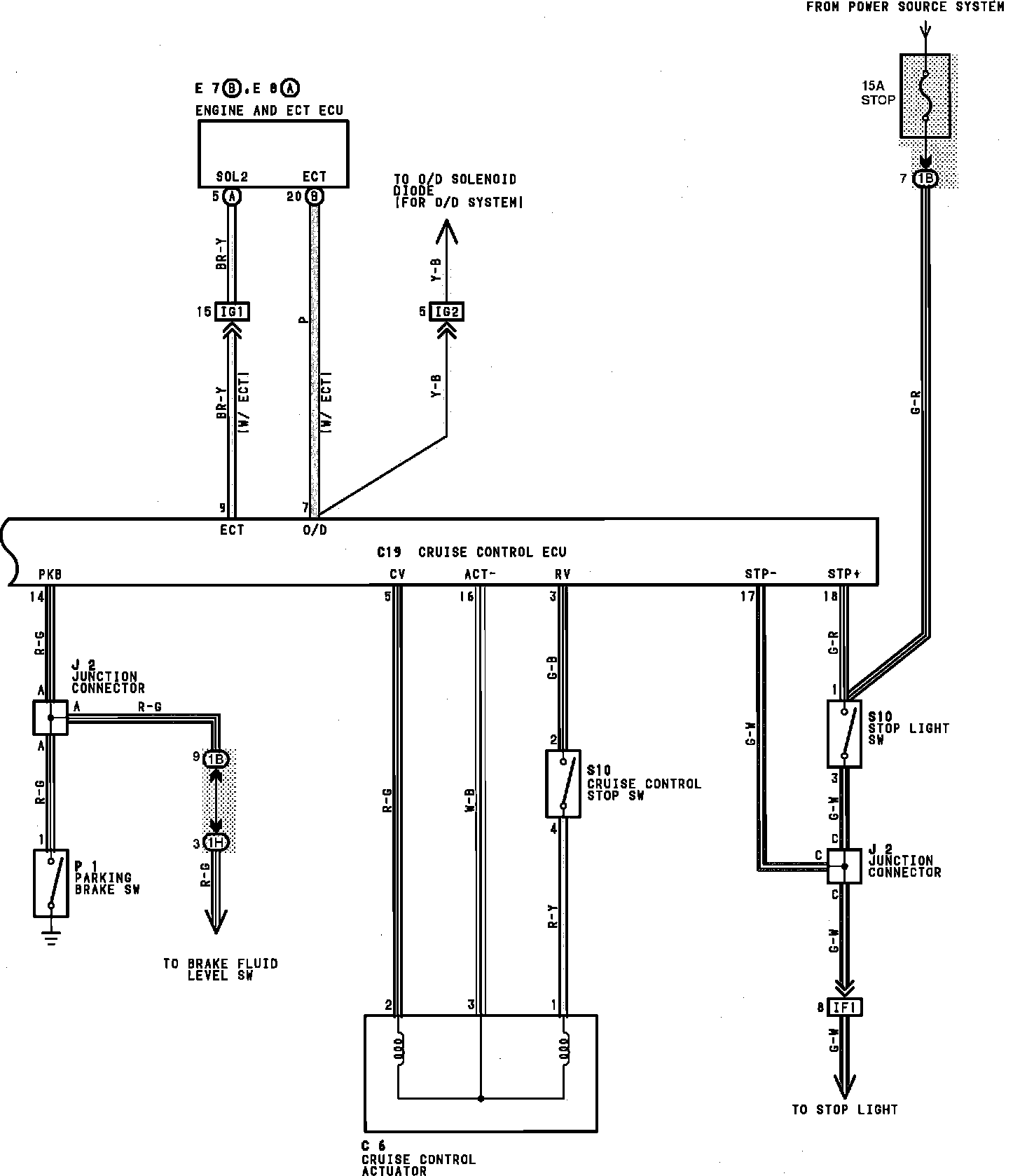

Cruise Control (Vaccum Type):
