Vehicle Speed Sensor

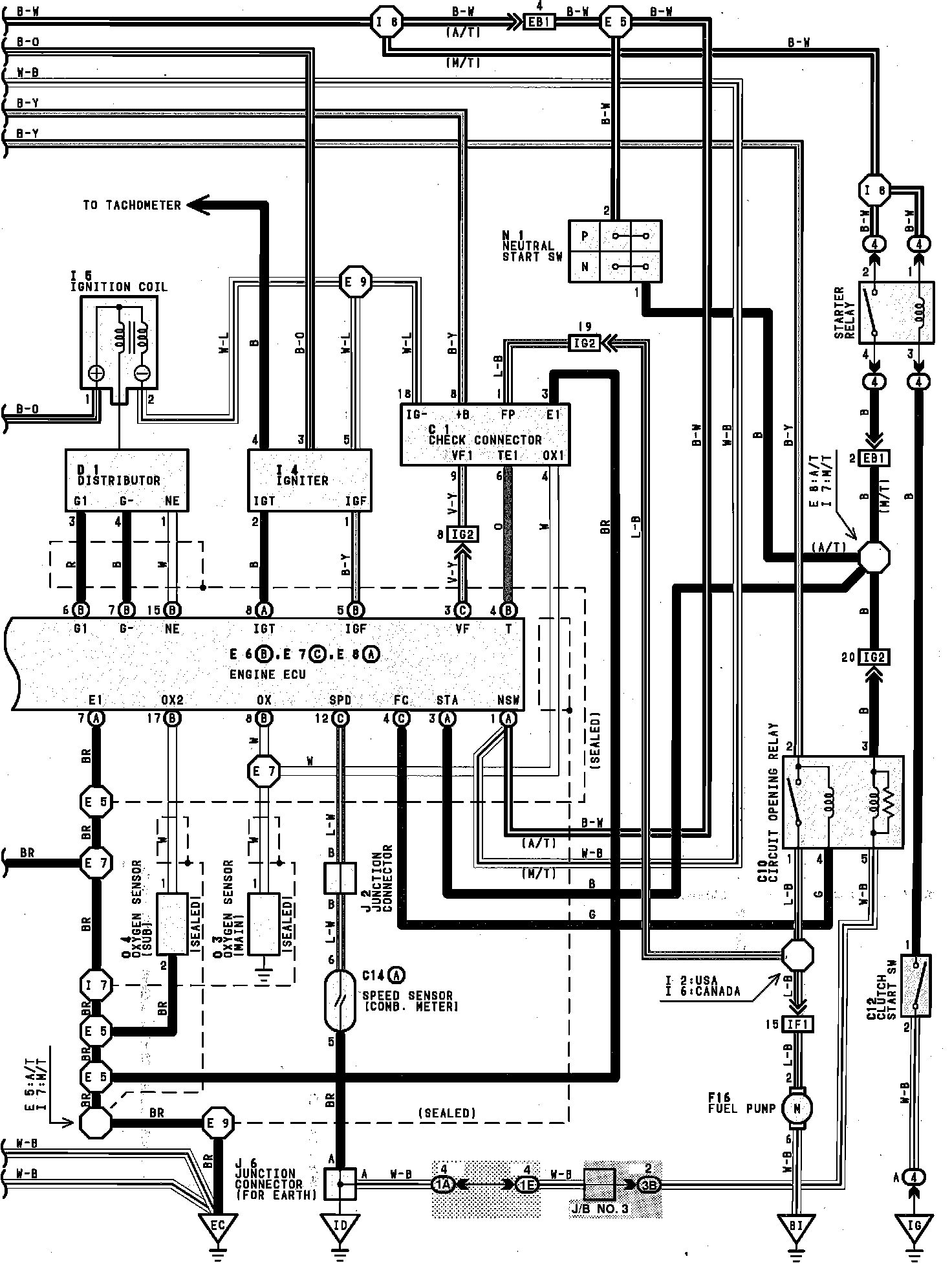

Vehicle Speed Sensor
Engine Controls With Electronic Controlled Transaxle:
Engine Controls Less Electronic Controlled Transaxle:
