Installation

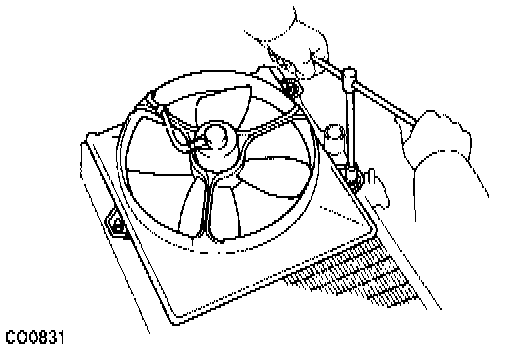

1. Install the cooling fan to the radiator with the three bolts.





2. Install radiator.
a. Place the two lower radiator supports in position on the body.





b. Place the radiator in position, and install the two upper supports with the two bolts.

NOTE: After installation, check that the rubber cushion (A) of the supports are not depressed.

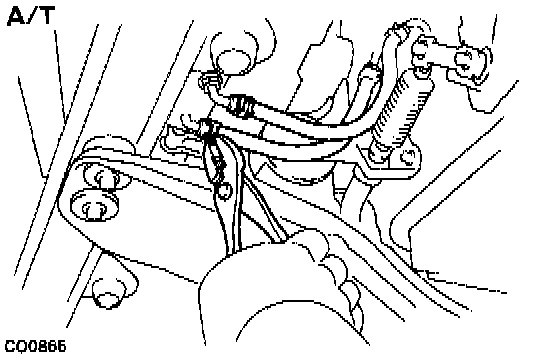

3. (A/T) Connect oil cooler hoses.

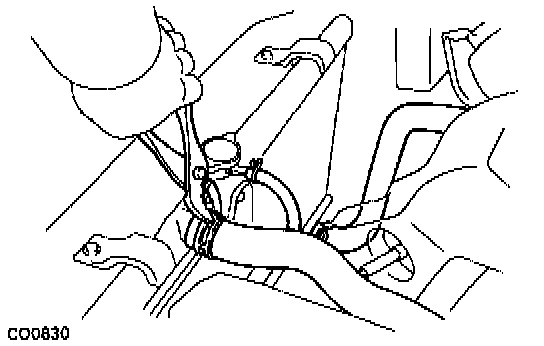

4. Connect radiator hoses.
5. Connect coolant reservoir hose.
6. Connect electric cooling fan connector.

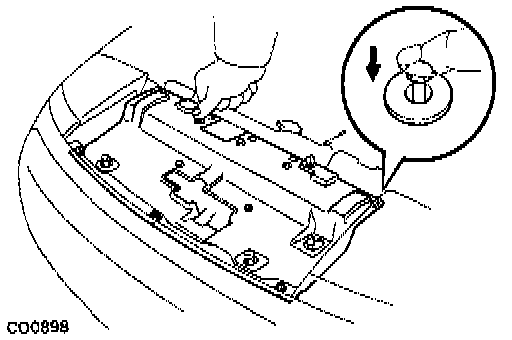

7. Install the upper radiator support seal with the seven clips and three screws.
8. Install engine relay box
9. (with ABS) Install ABS control relay.
10. Connect water temperature switch connector.
11. Connect cable to negative terminal of battery.
12. Fill with engine coolant.
13. Start engine and check for leaks.
14. (A/T) Check automatic transmission (A/T) fluid level.

NOTE: Do not overfill.

15. Install RH engine under cover.
16. (A/T) Install RH and LH engine under covers.
