Piston Ring: Service and Repair

Using a piston ring expander, install the 2 compression rings with the code mark facing upward.

Code mark:
No.1: 1N or T
No.2: 2N or 2T

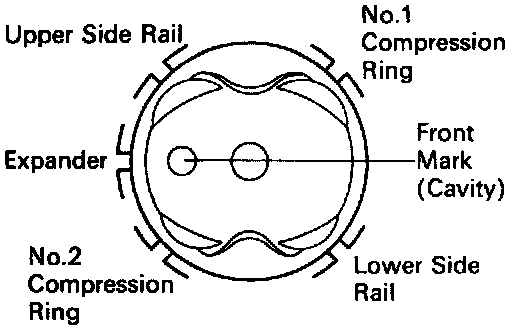

Position the piston rings so that the ring ends are as shown.

NOTICE: Do not align the ring ends.
