Dissemble

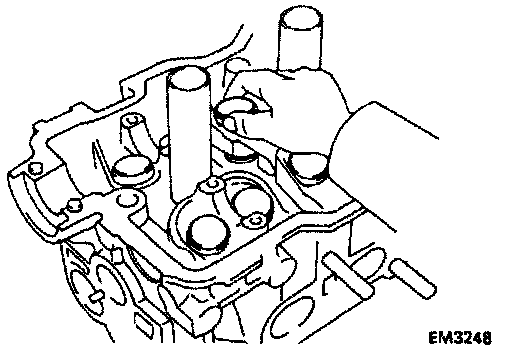

1. Remove valve lifters and shims.

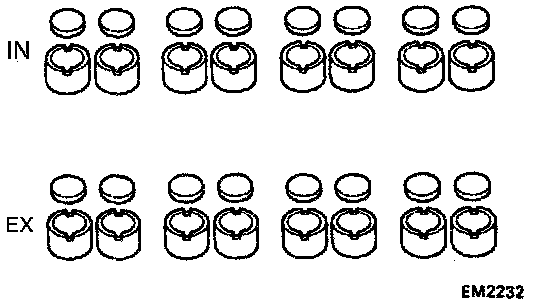

NOTE: Arrange the valve lifters and shims in correct order.

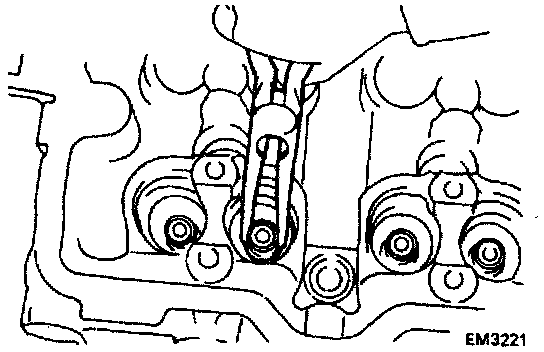

2. Using SST 09202-70010, compress the valve spring and remove the two keepers, the spring retainer, valve spring, valve and spring seat.

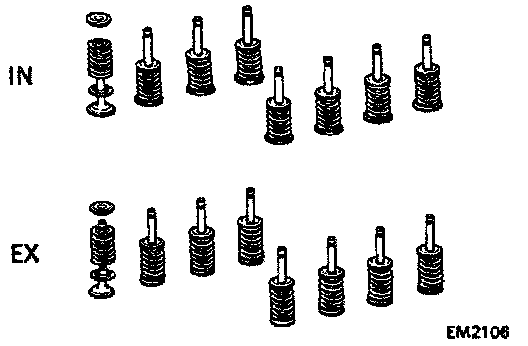

NOTE: Arrange the valves, valve springs, spring seats and spring retainers in correct order.





3. Using needle-nose pliers, remove the oil seal.
