Blower Motor Resistor: Testing and Inspection

Inspect blower resistor continuity.

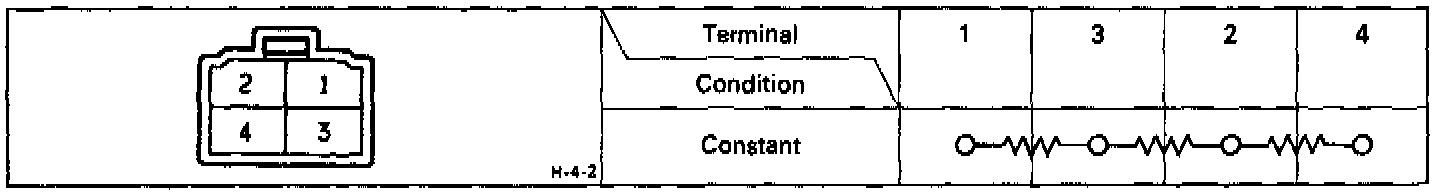

With Auto A/C: Dial Type Blower Speed Control Switch.

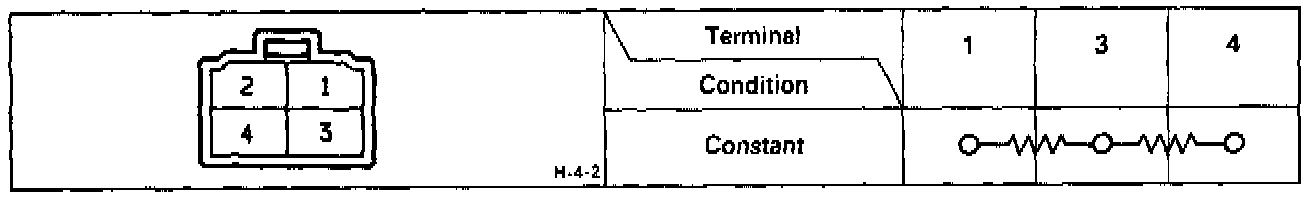

With Auto A/C: Push Type Blower Speed Control Switch.

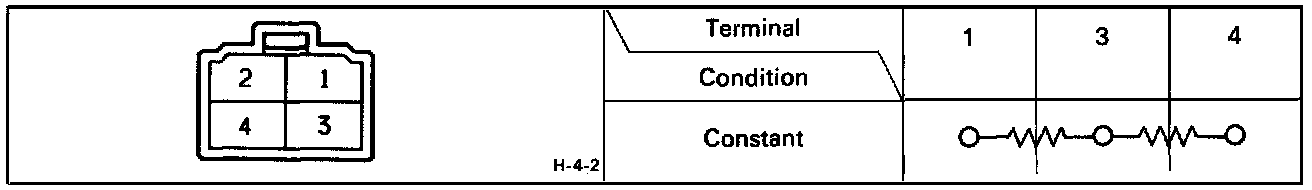

Without Auto A/C

If continuity is not as specified, replace the blower resistor.
