Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Taillight (Part 1 Of 2):

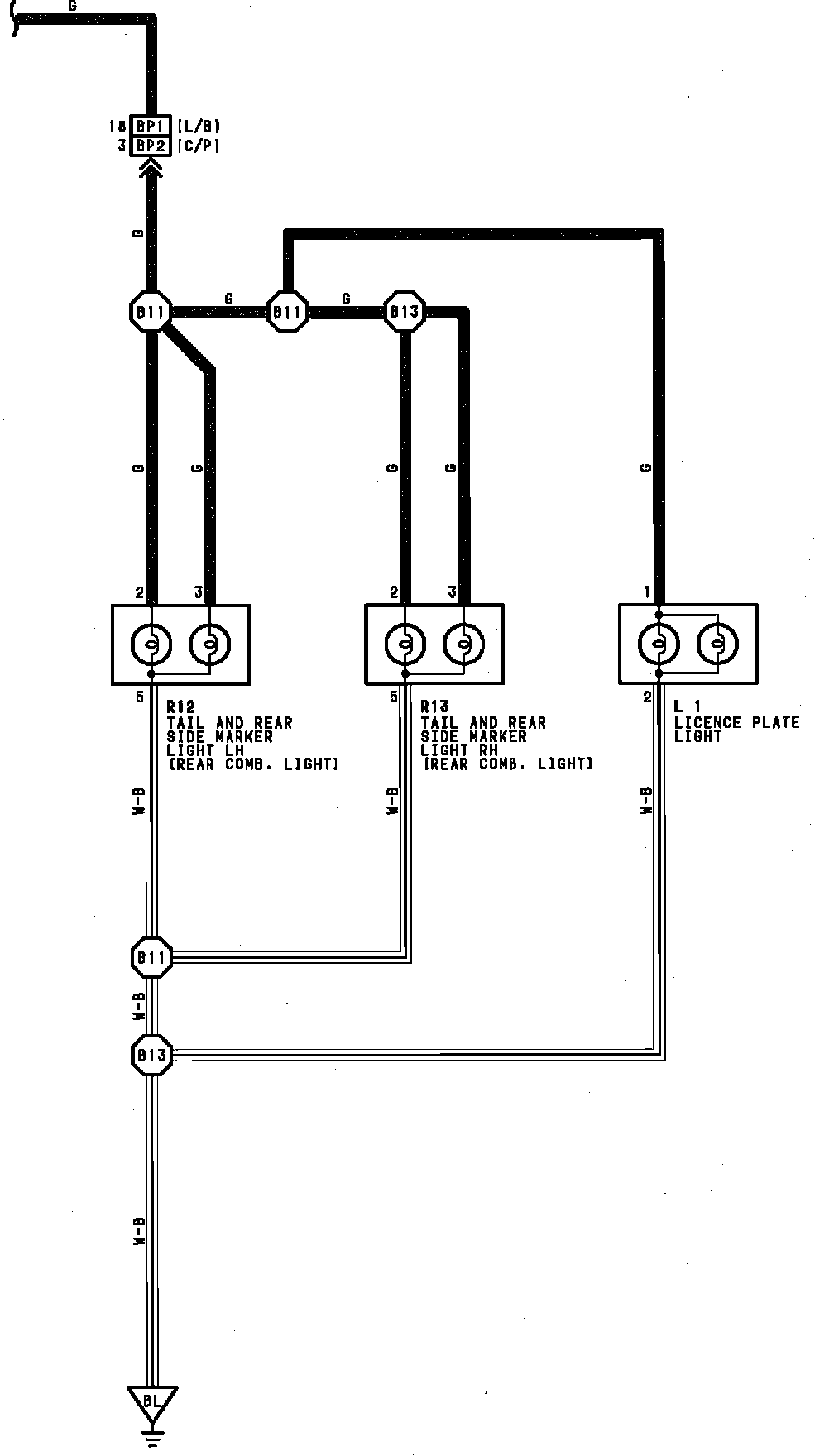

Taillight (Part 2 Of 2):
