Home >> Toyota >> 1990 >> Celica L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Testing and Inspection >> Component Troubleshooting >> Circuit Test (W/O ECT)

Circuit Test (W/O ECT)

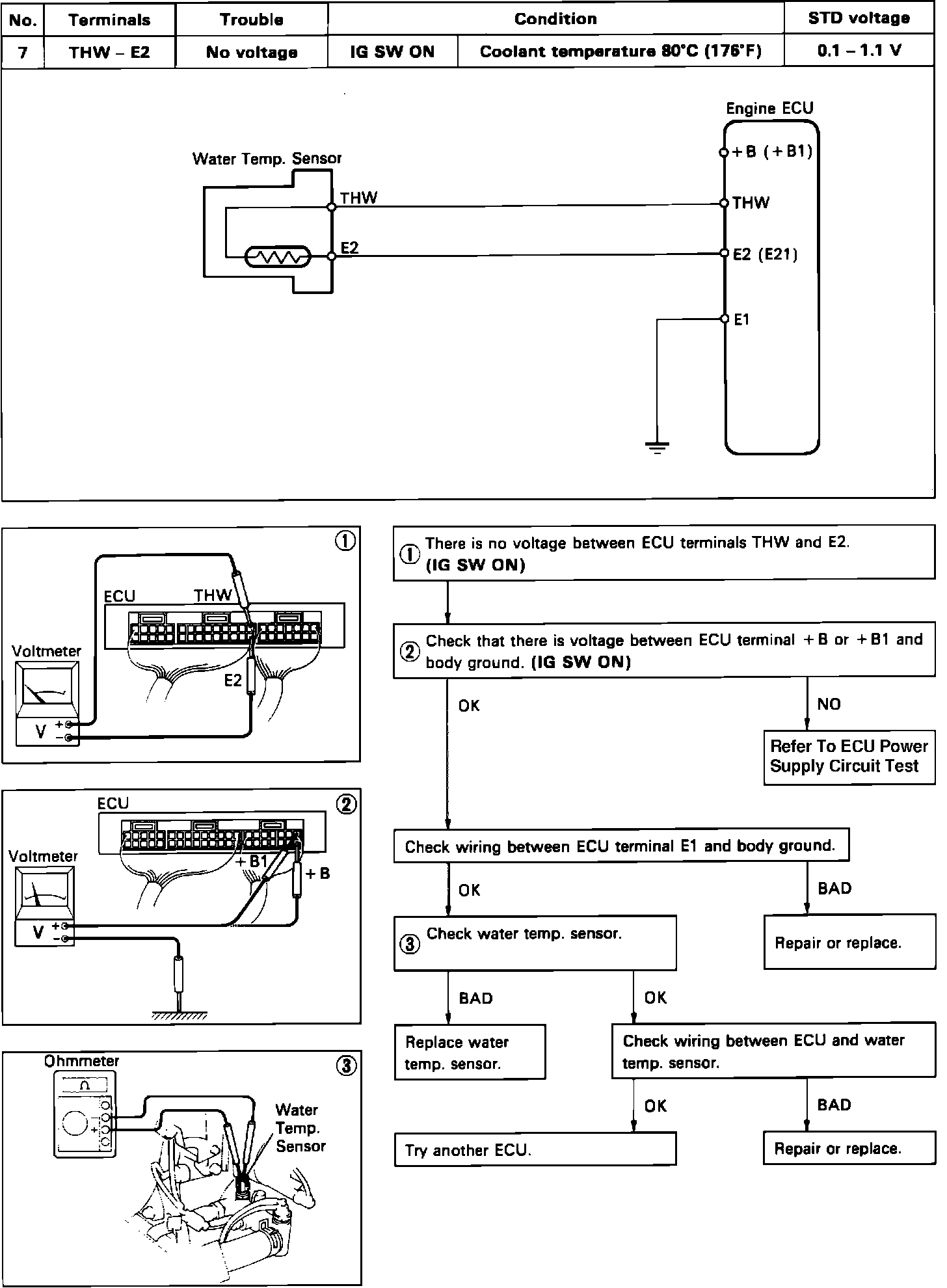

Water Temperature Sensor Circuit Test (w/o ECT):
