Less Electronically Controlled Transaxle (ECT)

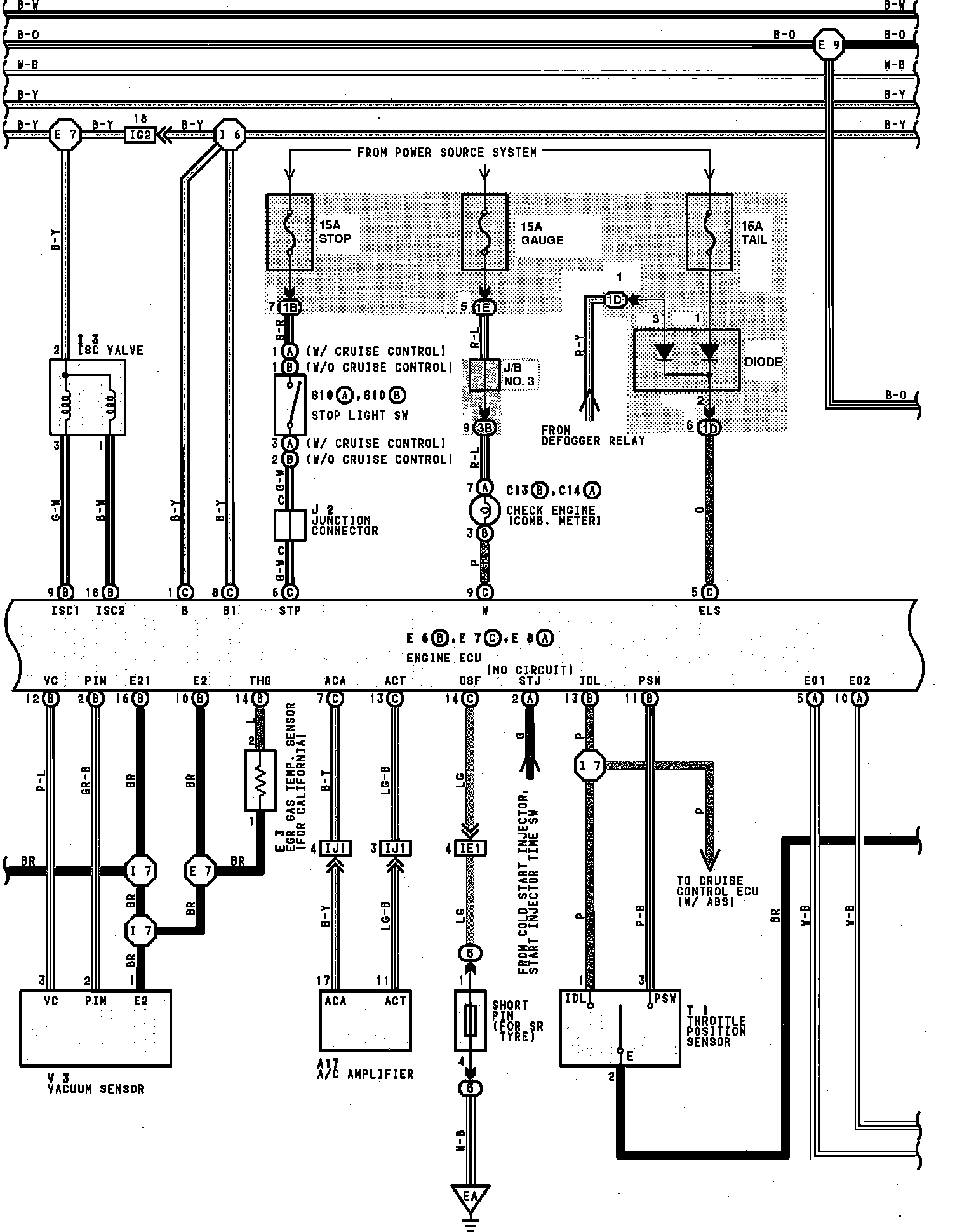

Engine Controls Less Electronic Controlled Transaxle:

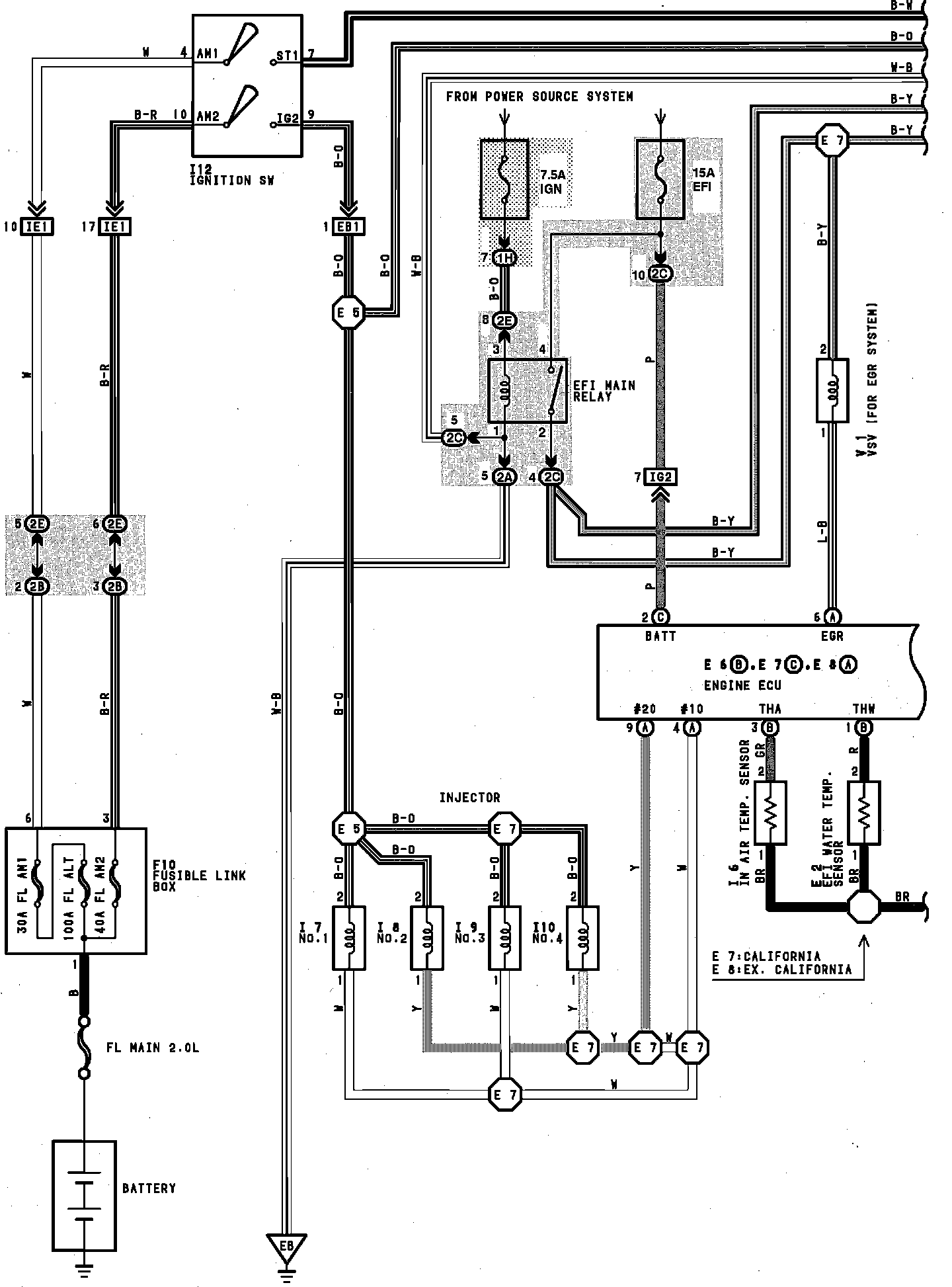

Engine Controls Less Electronic Controlled Transaxle:



Engine Controls Less Electronic Controlled Transaxle:
