Component Inspection

1. Disconnect the ISC valve connector.

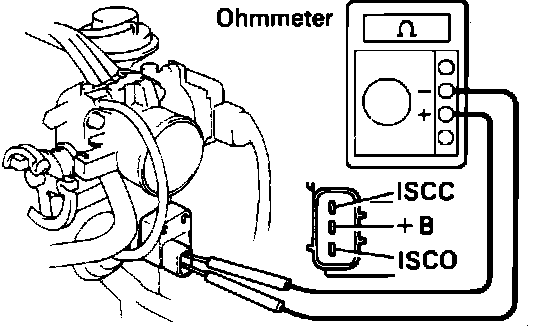

2. Using an Ohmmeter, measure the resistance between terminal +B and terminals ISCC and ISCO.

Checking ISC Valve Resistance:

3. Reading should be 19.3 - 22.3 ohms. If not as specified, replace the ISC valve.
4. Reconnect the ISC valve connector
