Home >> Toyota >> 1990 >> Celica L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Speed/Throttle Actuator - Electronic >> Testing and Inspection >> Component Troubleshooting >> Circuit Test (W/ ECT)

Circuit Test (W/ ECT)

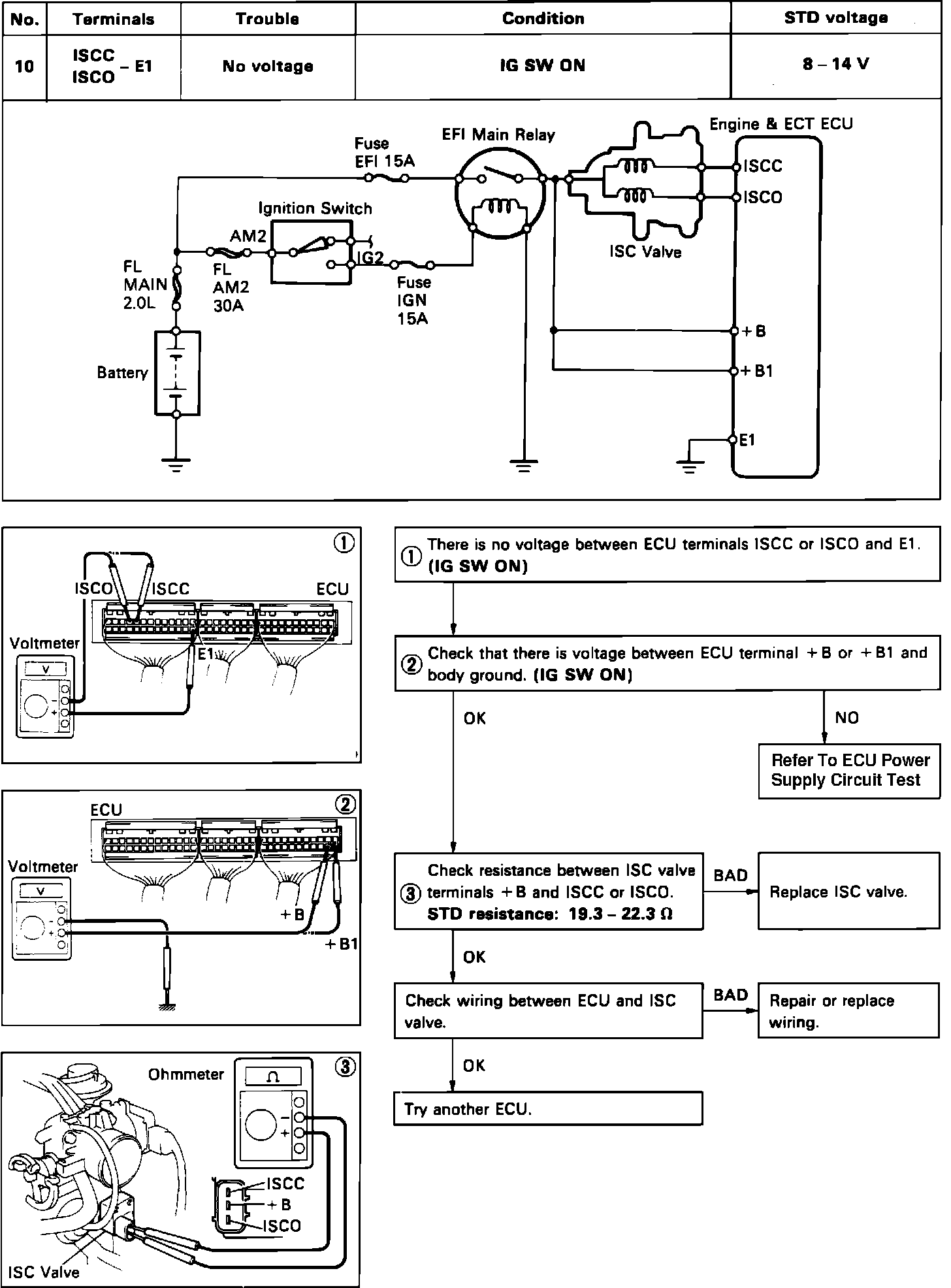

ISC Valve Circuit Test (w/ ECT):
