THG / EGR Gas Temp. Sensor (California Only)
THG / EGR Gas Temp. Sensor (California Only)
THG / EGR GAS TEMP. SENSOR (California Only)

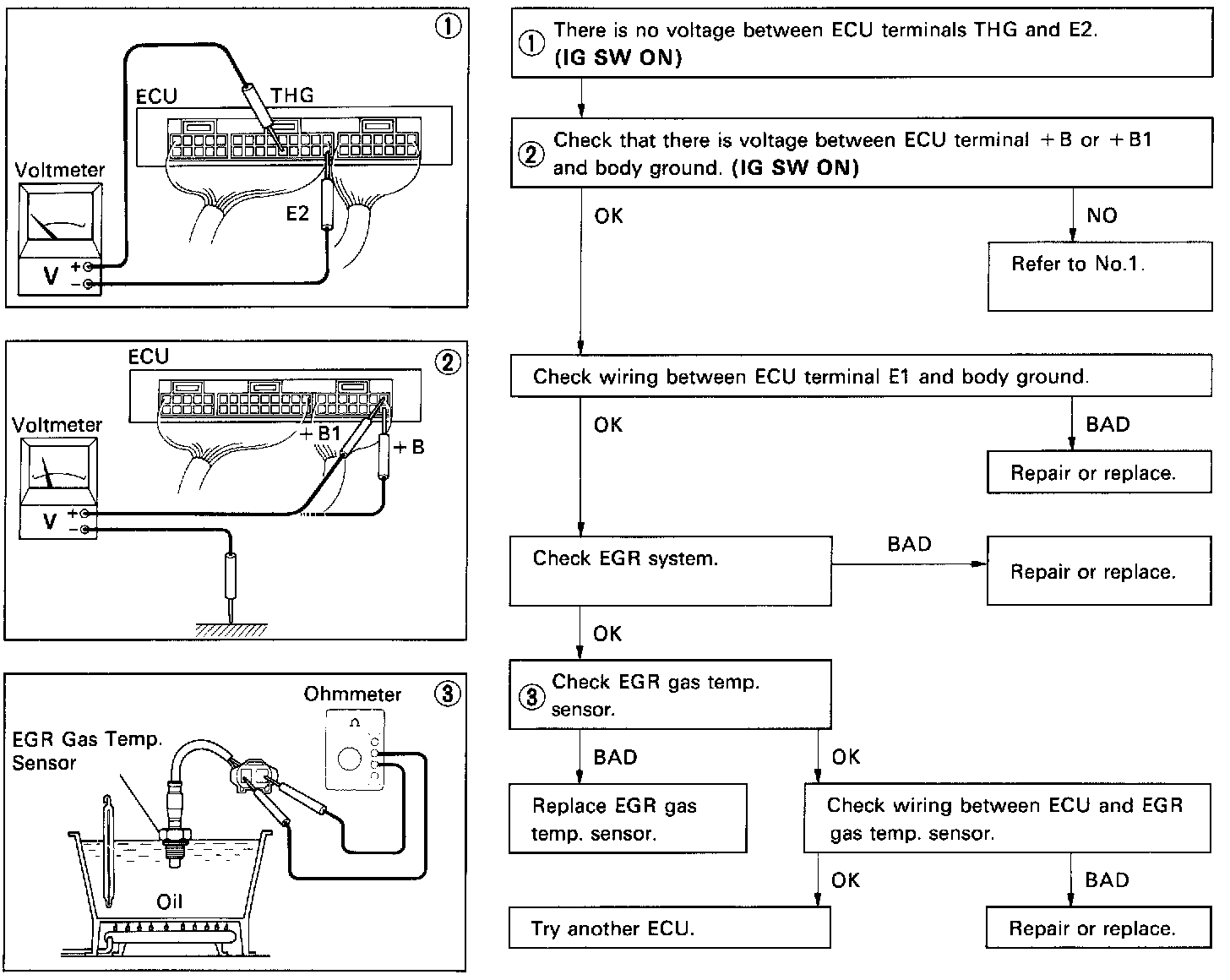

Part 1 Of 2:

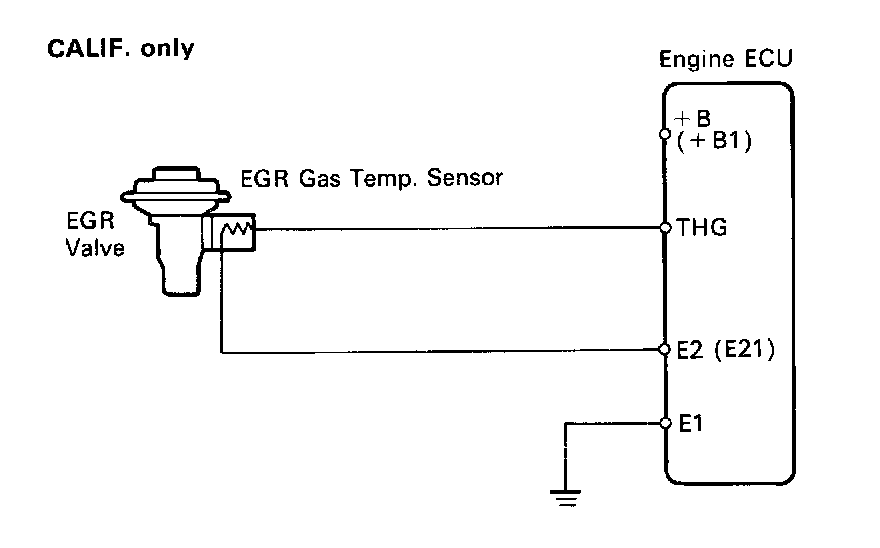

Part 2 Of 2:
