Without ECT

ELECTRONIC FUEL INJECTION (EFI) SYSTEM CHECK PROCEDURE





NOTE:
- Perform all voltage measurements with the connectors connected.
- Verity that the battery voltage is 11 V or more when the ignition switch is at "ON".

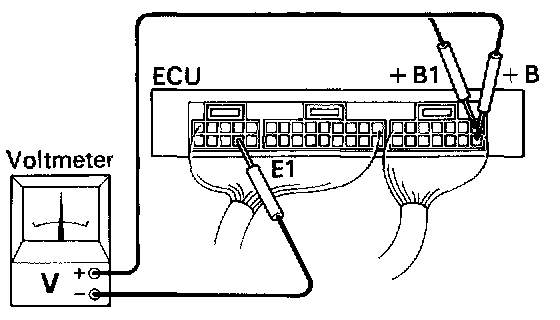

Using a voltmeter with high impedance (10 k-ohms/V minimum), measure the voltage at each terminal of the wiring connectors.

IDENTIFICATION OF ECU CONNECTORS, STANDARD VOLTAGES

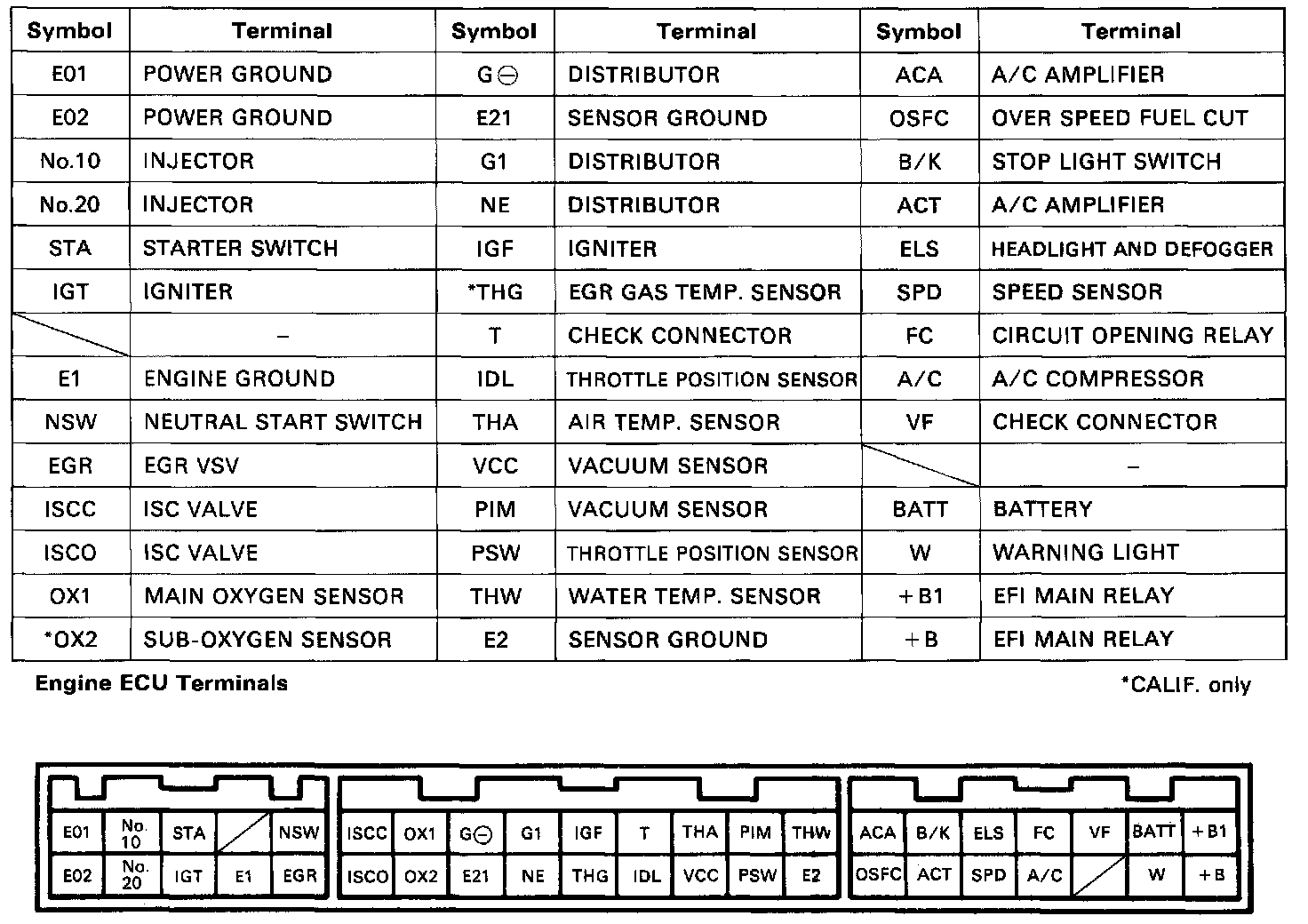

Terminals Of ECU:

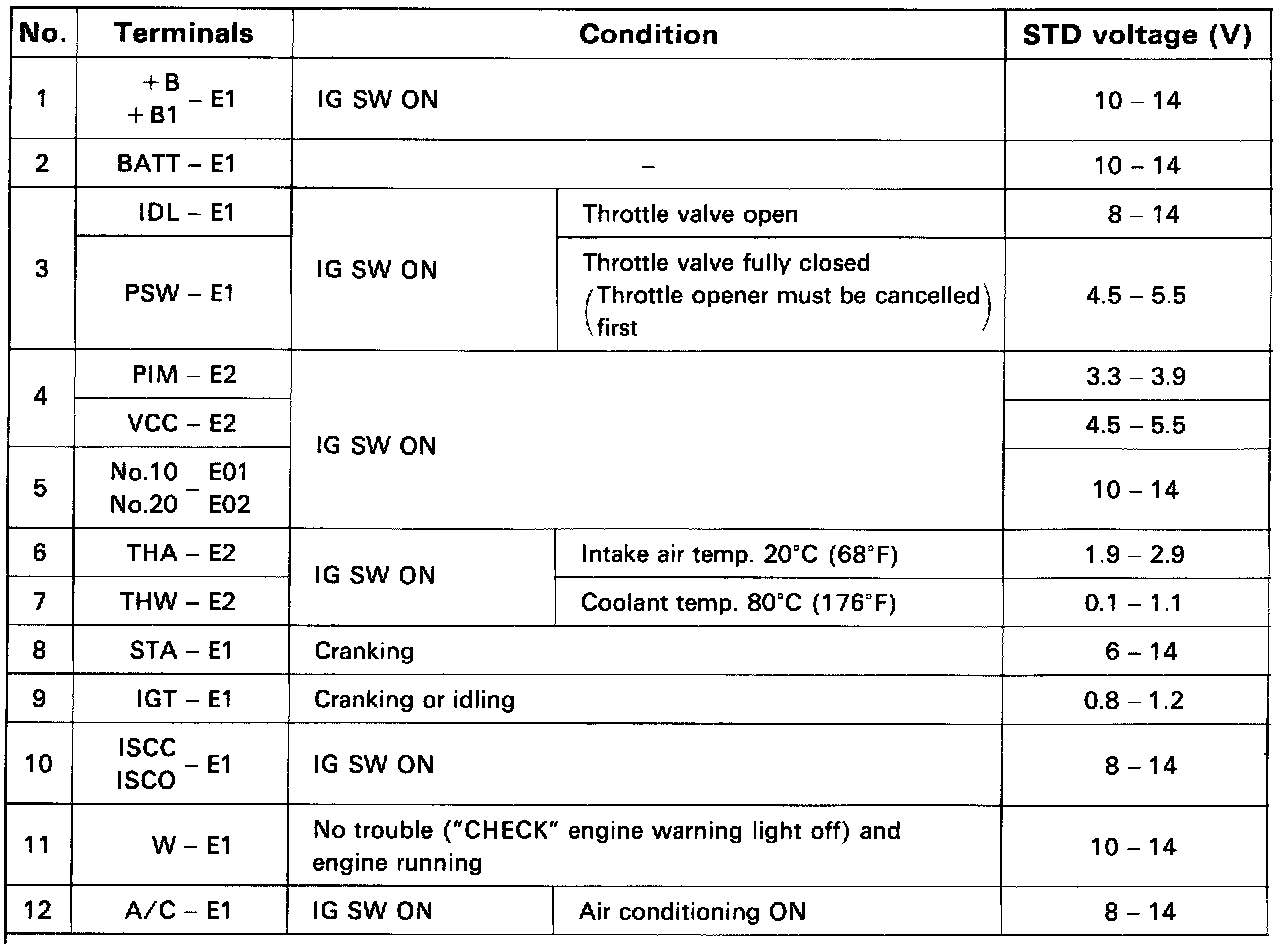

Voltages At ECU Wiring Connectors:

HINT: If any voltages are out of specification, refer to Chart No. as indicated for evaluation.

Component Tests and General Diagnostics
