Vacuum Delay Valve: Description and Operation

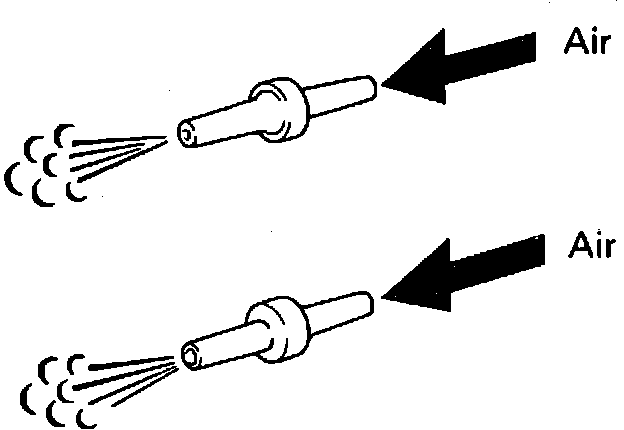

Fig. 32 Testing EVAP Purge Jet:

1. Remove Jet from vacuum line between BVSV and canister.
2. Blow air through each side of Jet and check for blockage. Fig. 32
3. If a problem is found, replace Jet.
