Fan Relay Number 1
Fan Relay Number 1

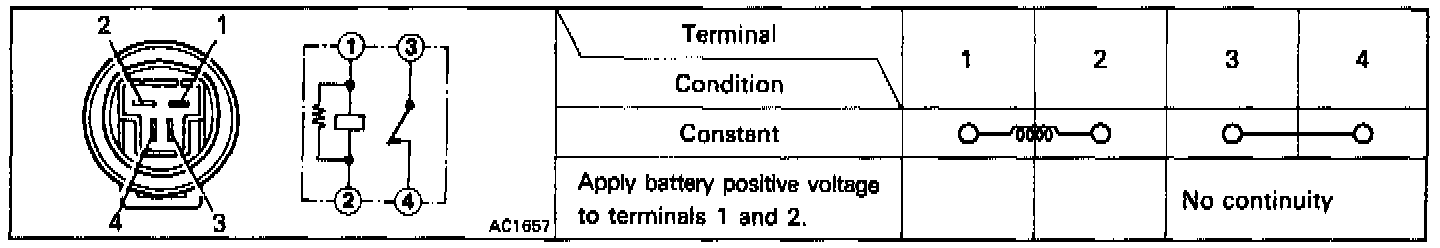

Inspect fan relay No. 1 continuity.
If continuity is not as specified, replace the relay.
