System Specifications

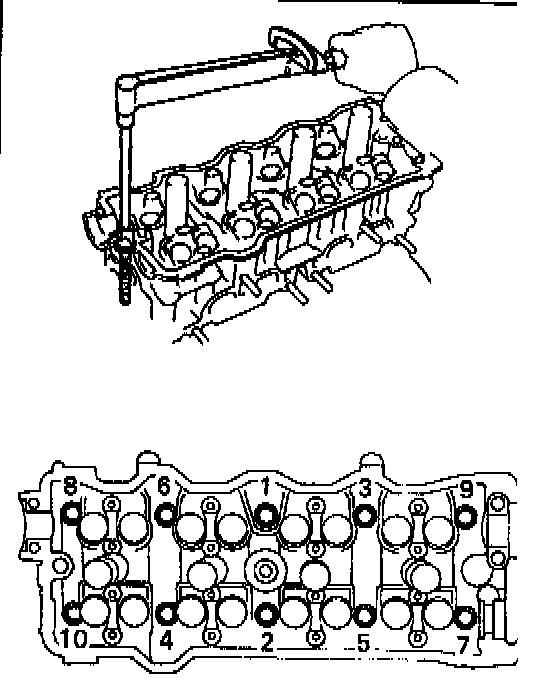

Cylinder Head Torque Sequence
Tightening Torque:
Step 1 ..... 64 Nm (47 ft lb)

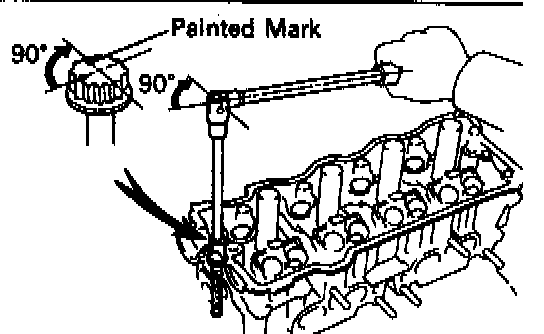

Step 2 ..... turn additional 90°
Component specifications not listed above are found under Engine Specifications. Mechanical Specifications
