Diesel Data: Automotive Repair

Home >> Toyota >> 1990 >> Celica L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering and Suspension >> Alignment >> Alignment Specifications

Alignment Specifications

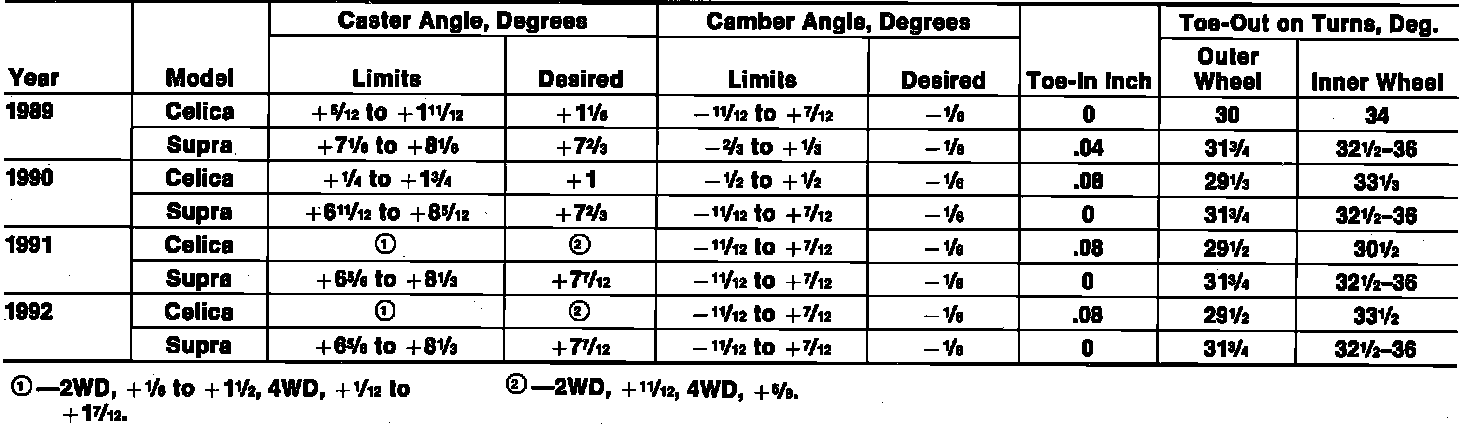

Front Wheel Alignment Specifications:

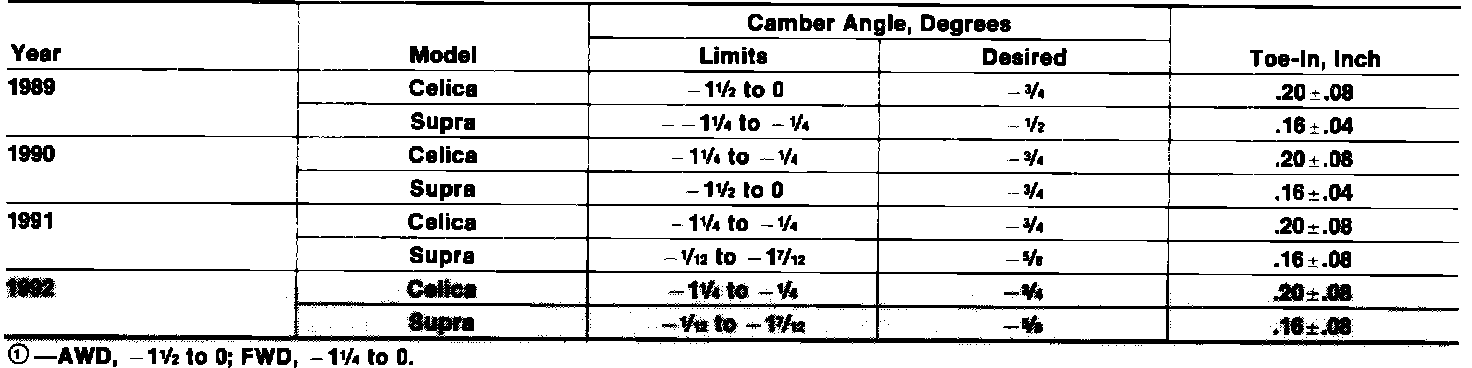

Rear Wheel Alignment Specifications:
