Intermediate Shaft

Intermediate Shaft:

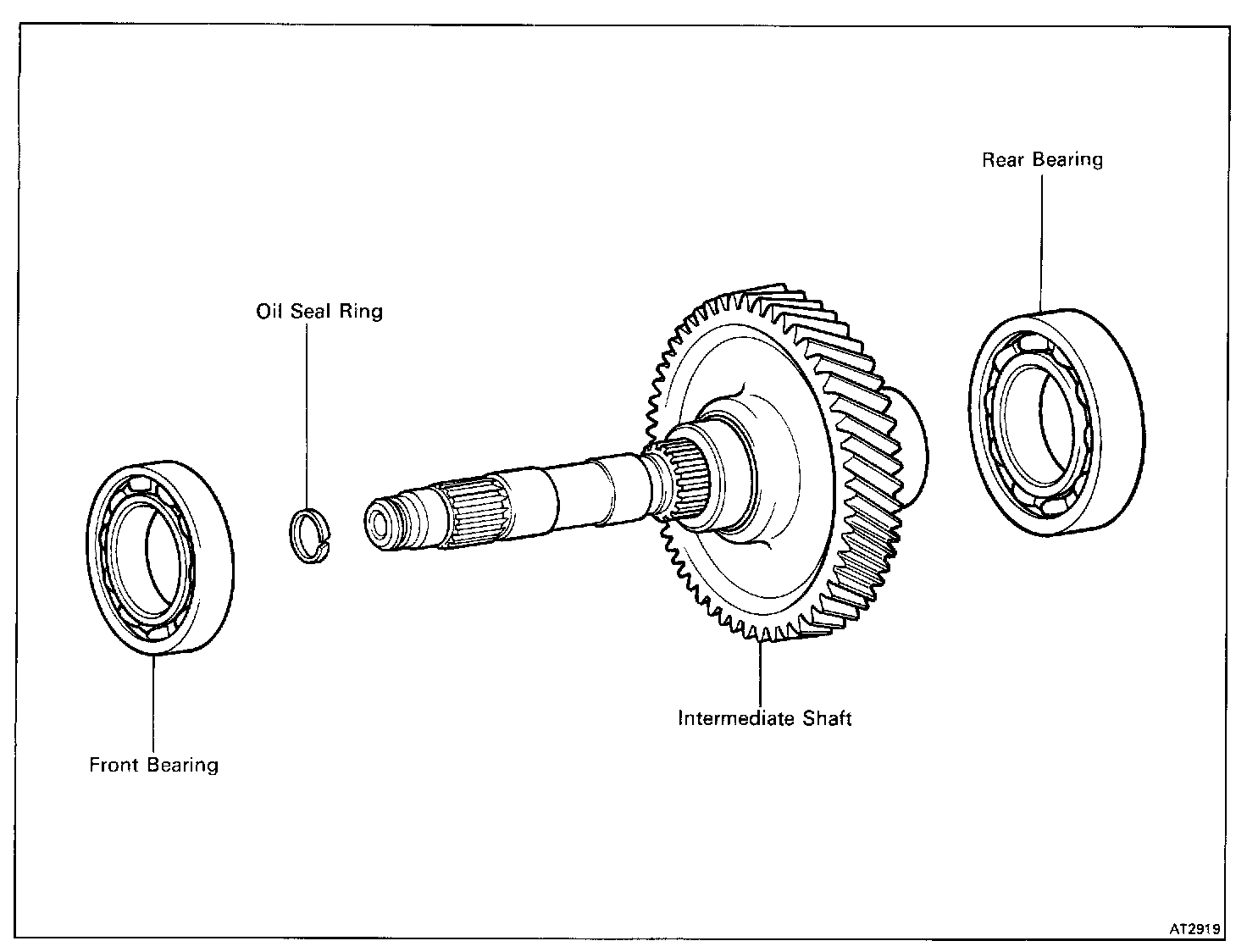

COMPONENTS

DISASSEMBLY OF INTERMEDIATE SHAFT




1. REMOVE INTERMEDIATE SHAFT FRONT BEARING

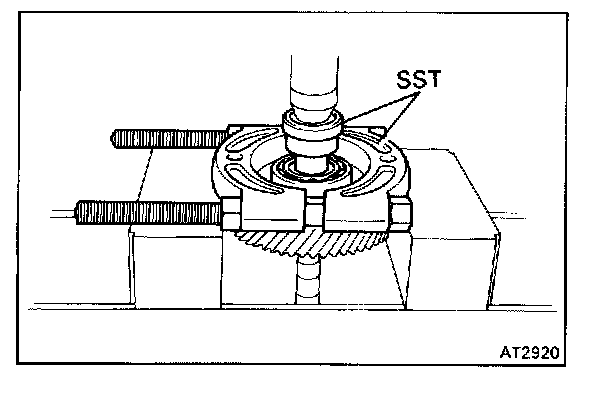

Using SST and press, press out the bearing.

SST 09555 - 55010




2. REMOVE INTERMEDIATE REAR BEARING

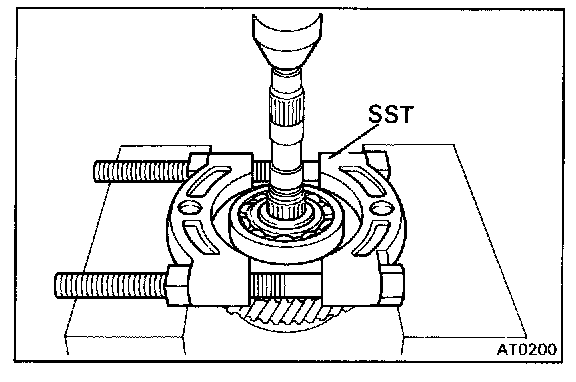

Using SST and press, press out the bearing.

SST 09350-32014 (09351-32090) and 09555 - 55010

ASSEMBLY OF INTERMEDIATE SHAFT

1. INSTALL INTERMEDIATE SHAFT FRONT BEARING

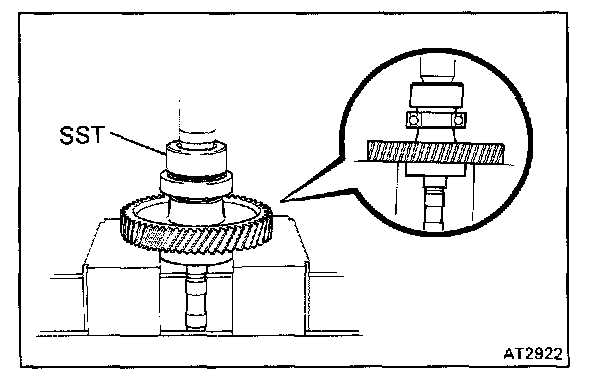

a. Using SST and press, press in a new bearing

SST 09350 - 32014 (09351 - 32120)

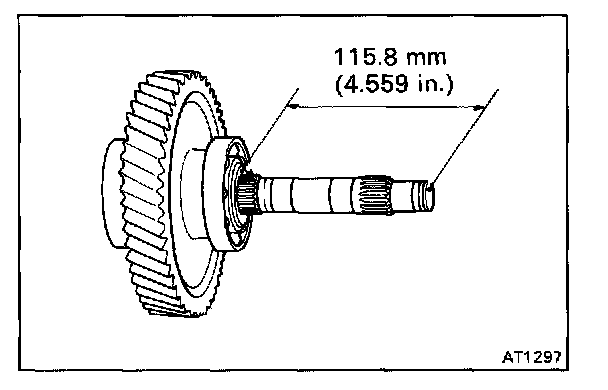

b. Check that the distance from the gear flange end to the intermediate shaft end should be 115.8 mm (4.559 in.).




2. INSTALL INTERMEDIATE SHAFT REAR BEARING

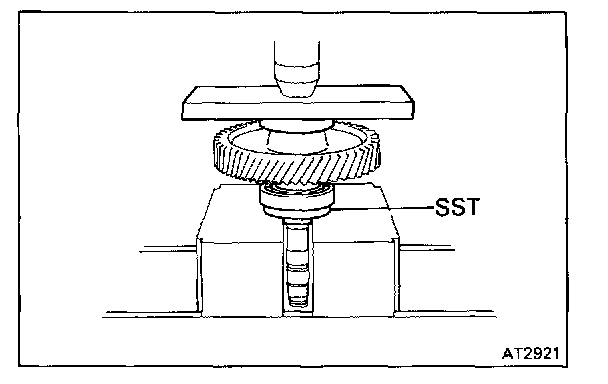

Using SST and press, press in a new bearing.

SST 09350 - 32014 (09351 - 32150)
