Manual Shifting Test (A241E)

MANUAL SHIFTING TEST (A241E)






HINT: With this test, it can be determined whether the trouble lies within the electrical circuit or is a mechanical problem in the transaxle.

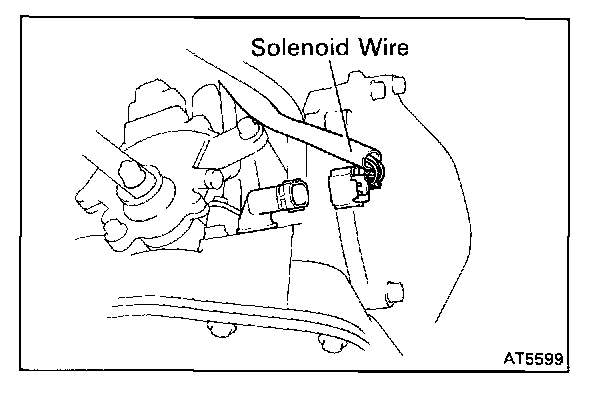

1. DISCONNECT SOLENOID WIRE




2. INSPECT MANUAL DRIVING OPERATION

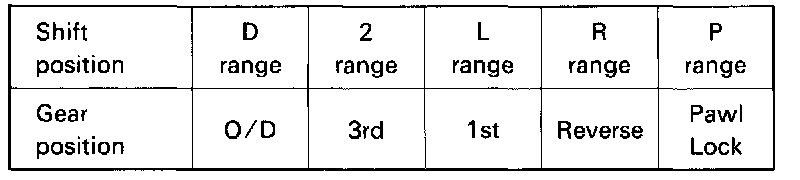

Check that the shift and gear positions correspond with the table.

HINT: If the L, 2 and D range gear positions are difficult to distinguish, perform the following road test.

- While driving, shift through the L, 2 and D ranges.
Check that the gear change corresponds to the shift position.

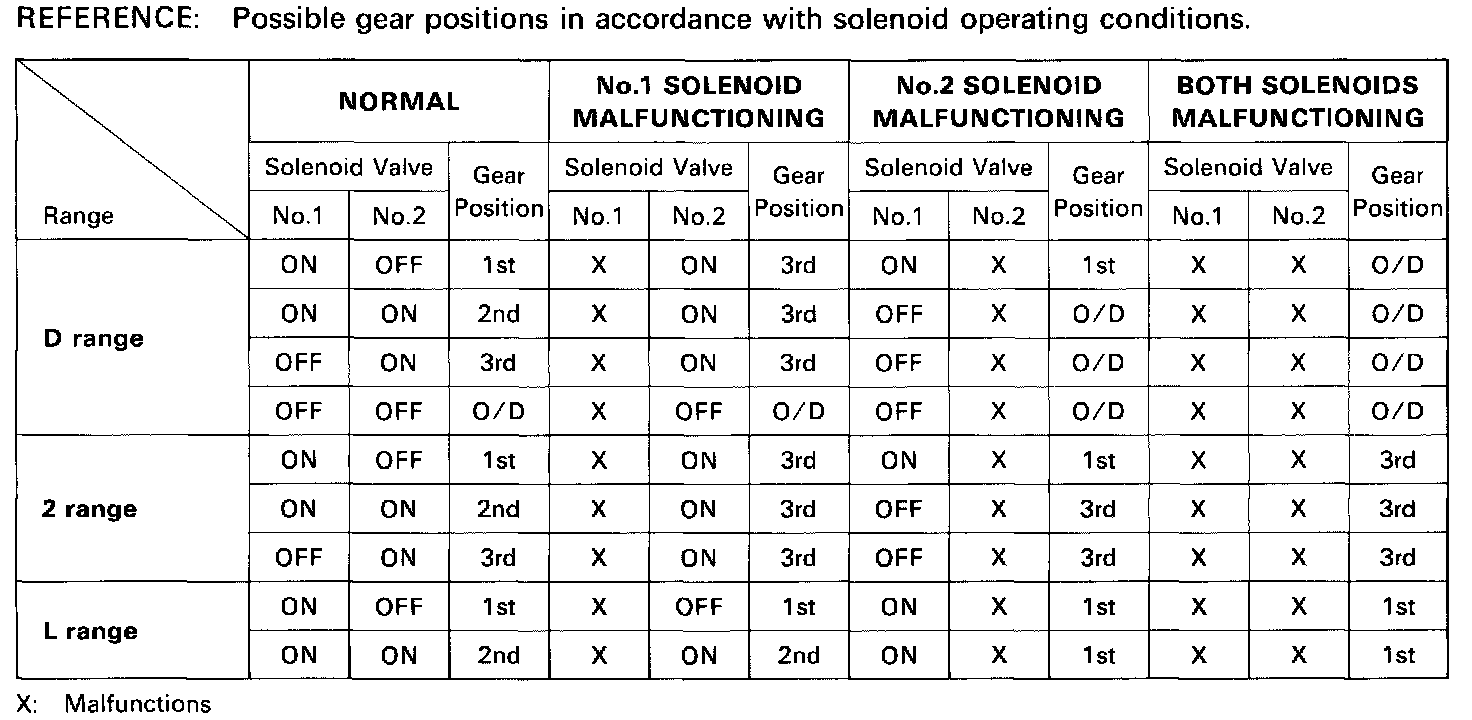

If any abnormality is found in the above test, the problem lies in transaxle itself.

3. CONNECT SOLENOID WIRE




4. CANCEL OUT DIAGNOSTIC CODE Testing and Inspection
