Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Service and Repair
>>
Removal and Installation
Removal and Installation

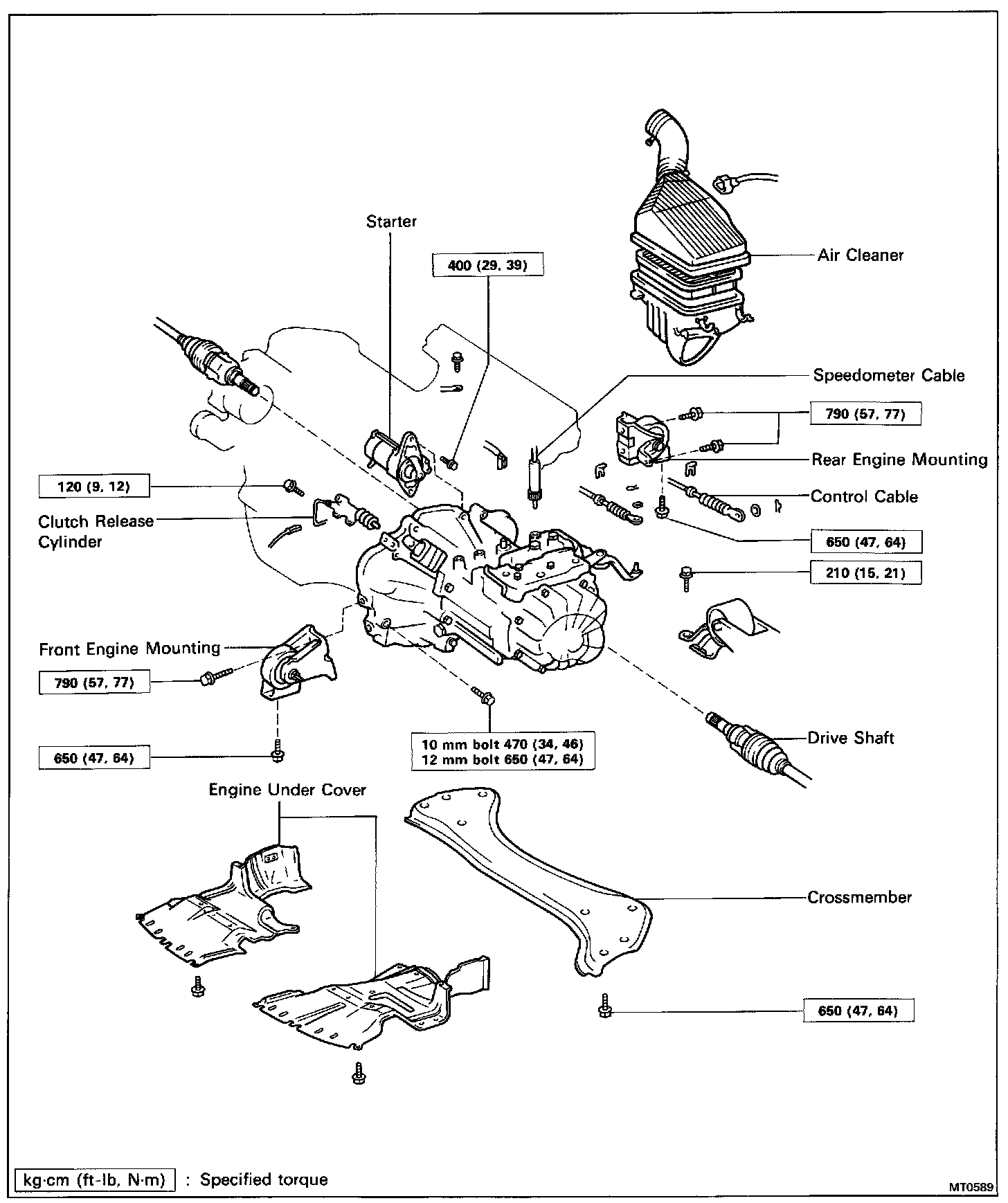

Remove and install the parts as shown.
HINT:
Oil capacity C52 and S53
2.6 liters (2.7 US qts, 2.3 Imp. qts)
