Celica L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
ABS (Antilock Brake System)
>>
ABS Diagnosis System
ABS Diagnosis System

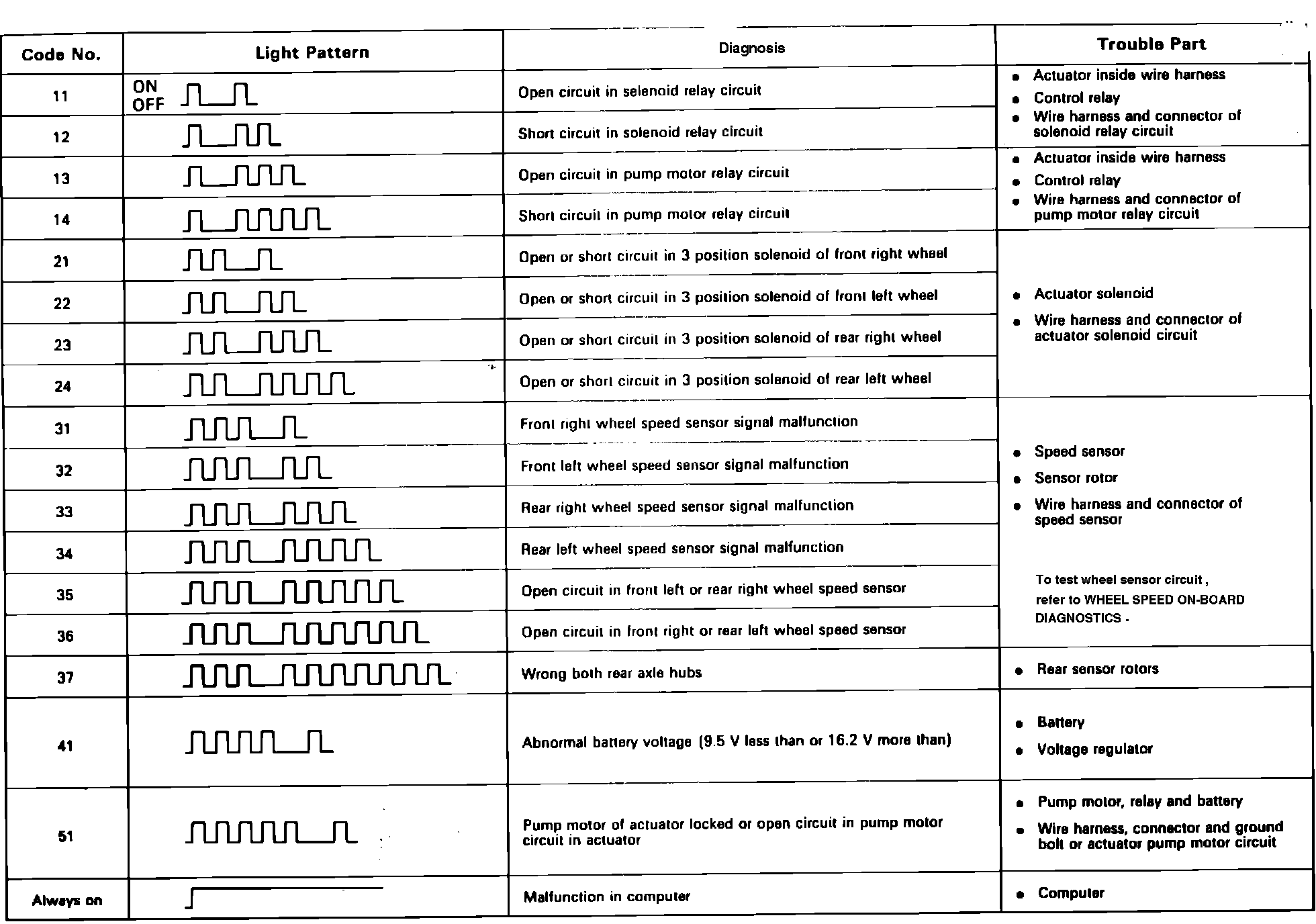

Diagnostic Codes (2-WD):

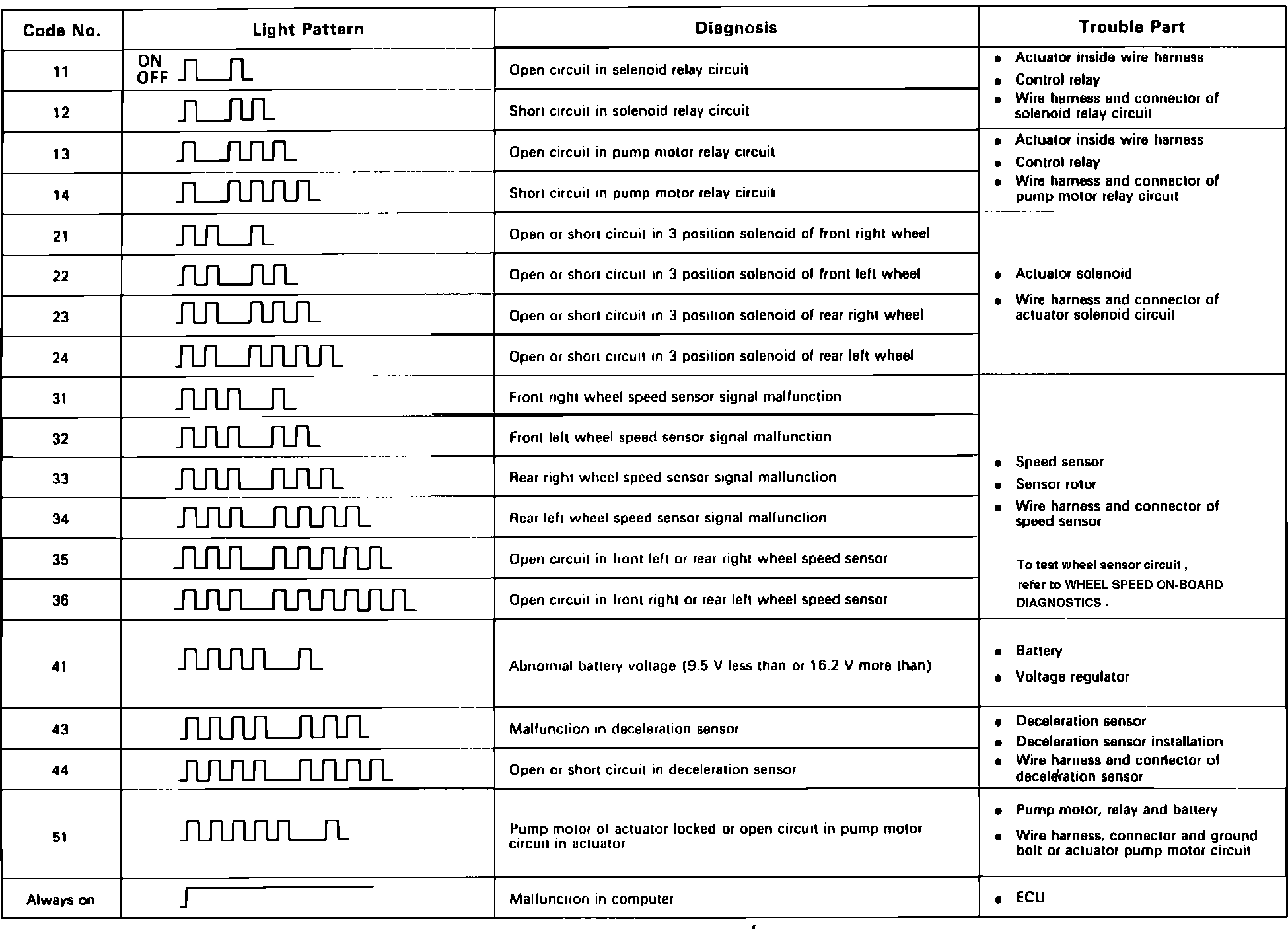

Diagnostic Codes (4-WD):
