Celica L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Connector Identification
Connector Identification

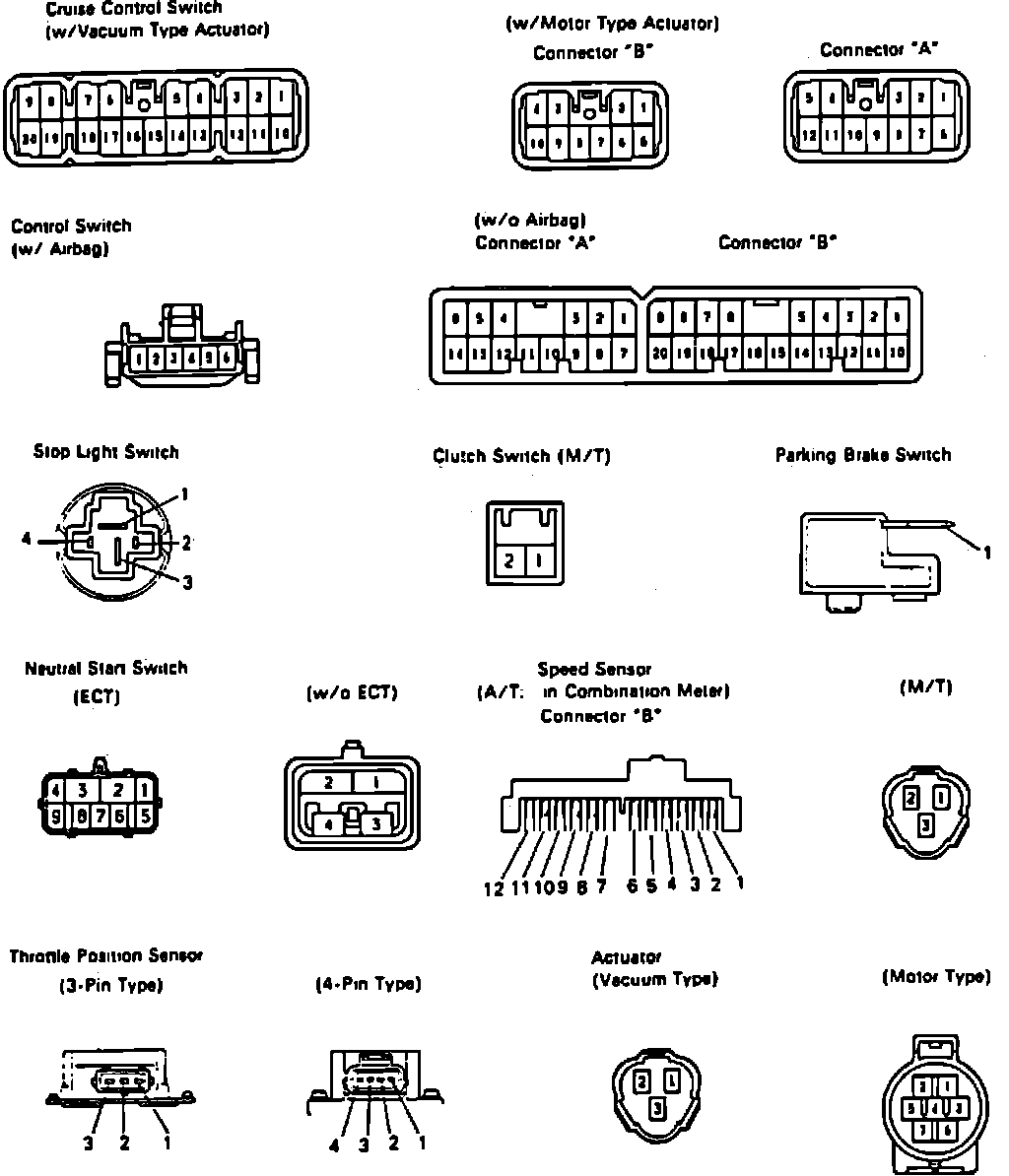

Fig. 35 Connector Identification:
