Diagrams
>>
Electrical Diagrams
Electrical Diagrams

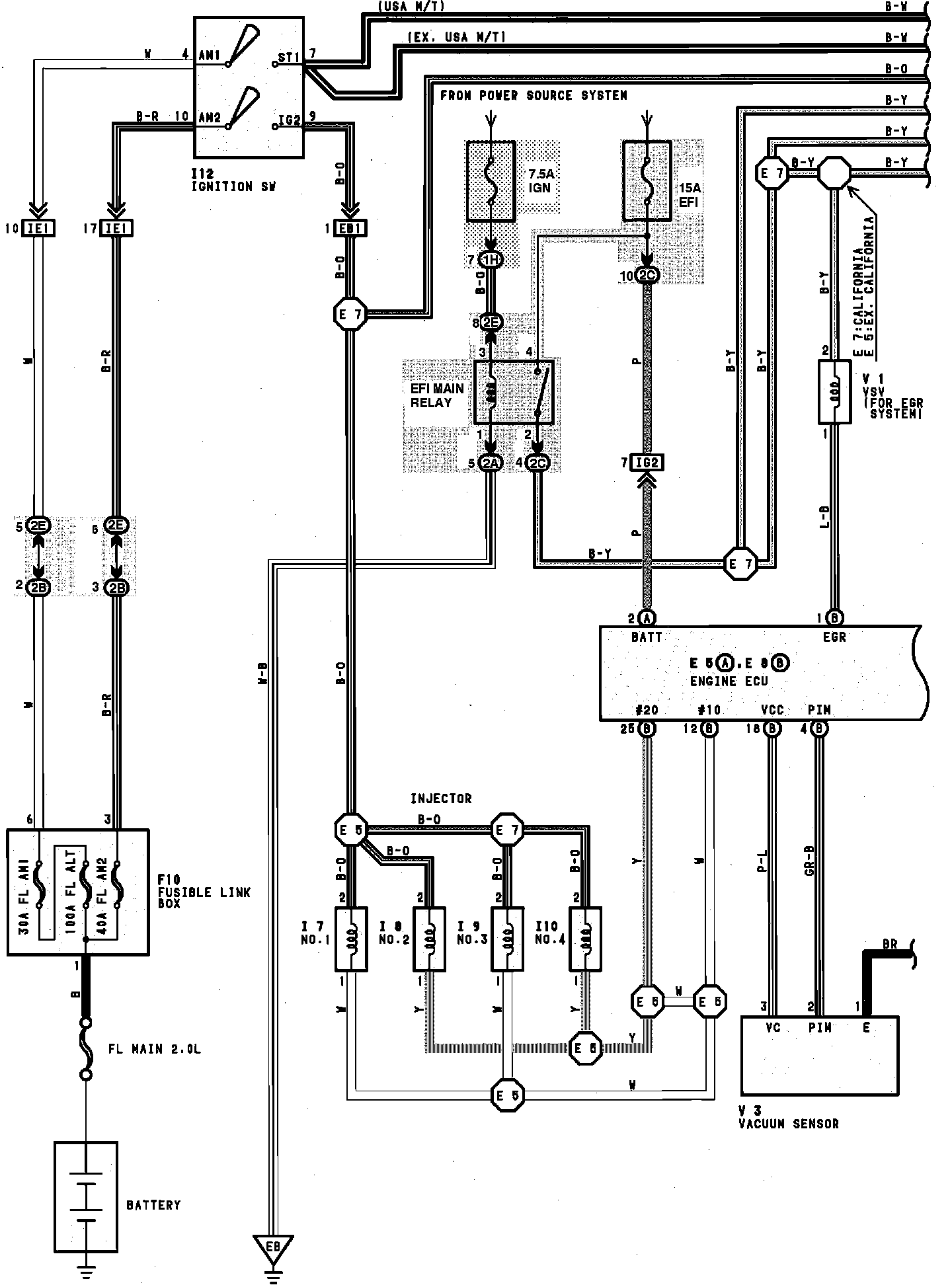

Engine Controls:

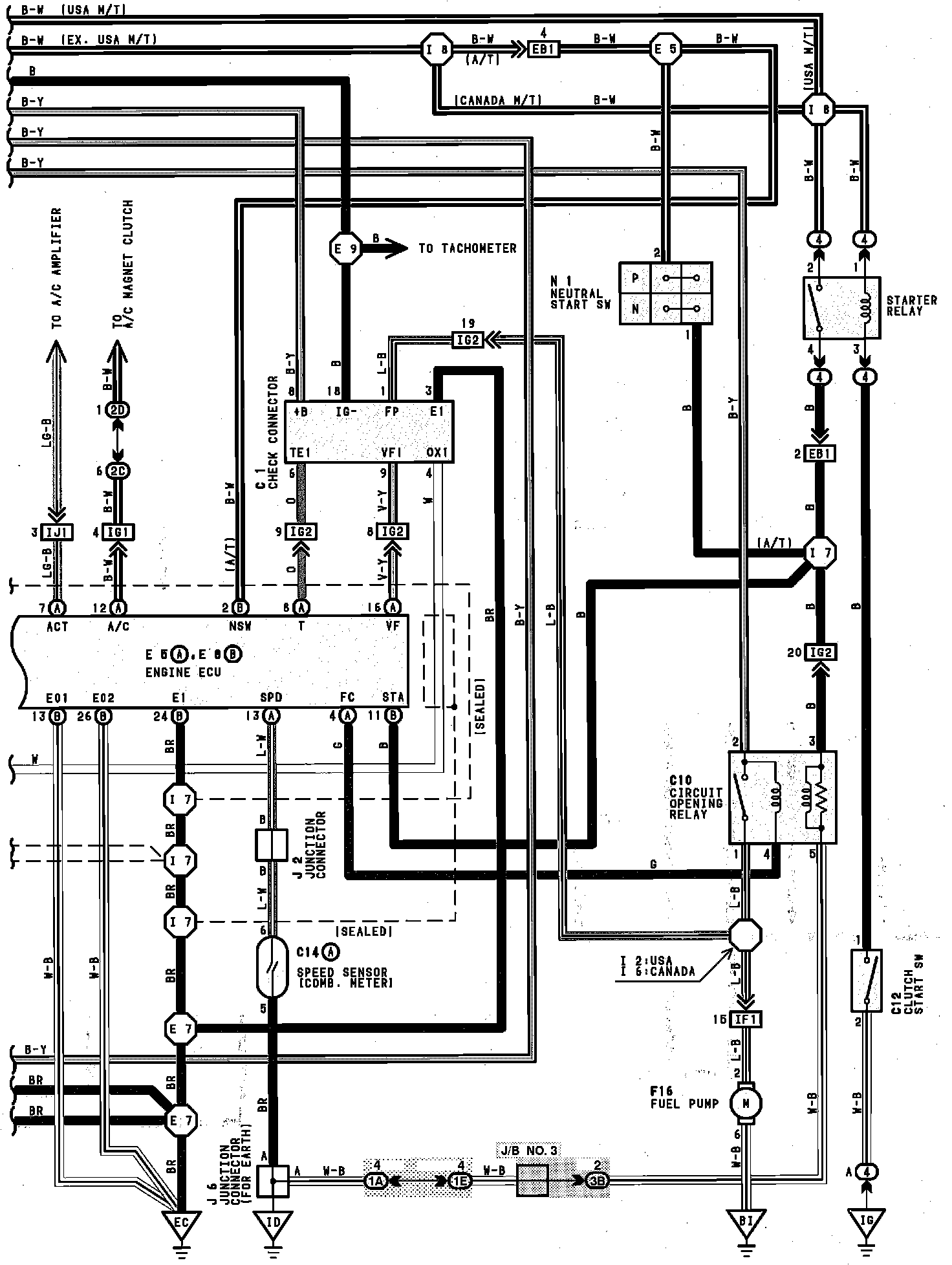

Engine Controls:
Engine Controls:
