Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Celica L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Computers and Control Systems
>>
Manifold Pressure/Vacuum Sensor
>>
Testing and Inspection
>>
Component Troubleshooting
Component Troubleshooting

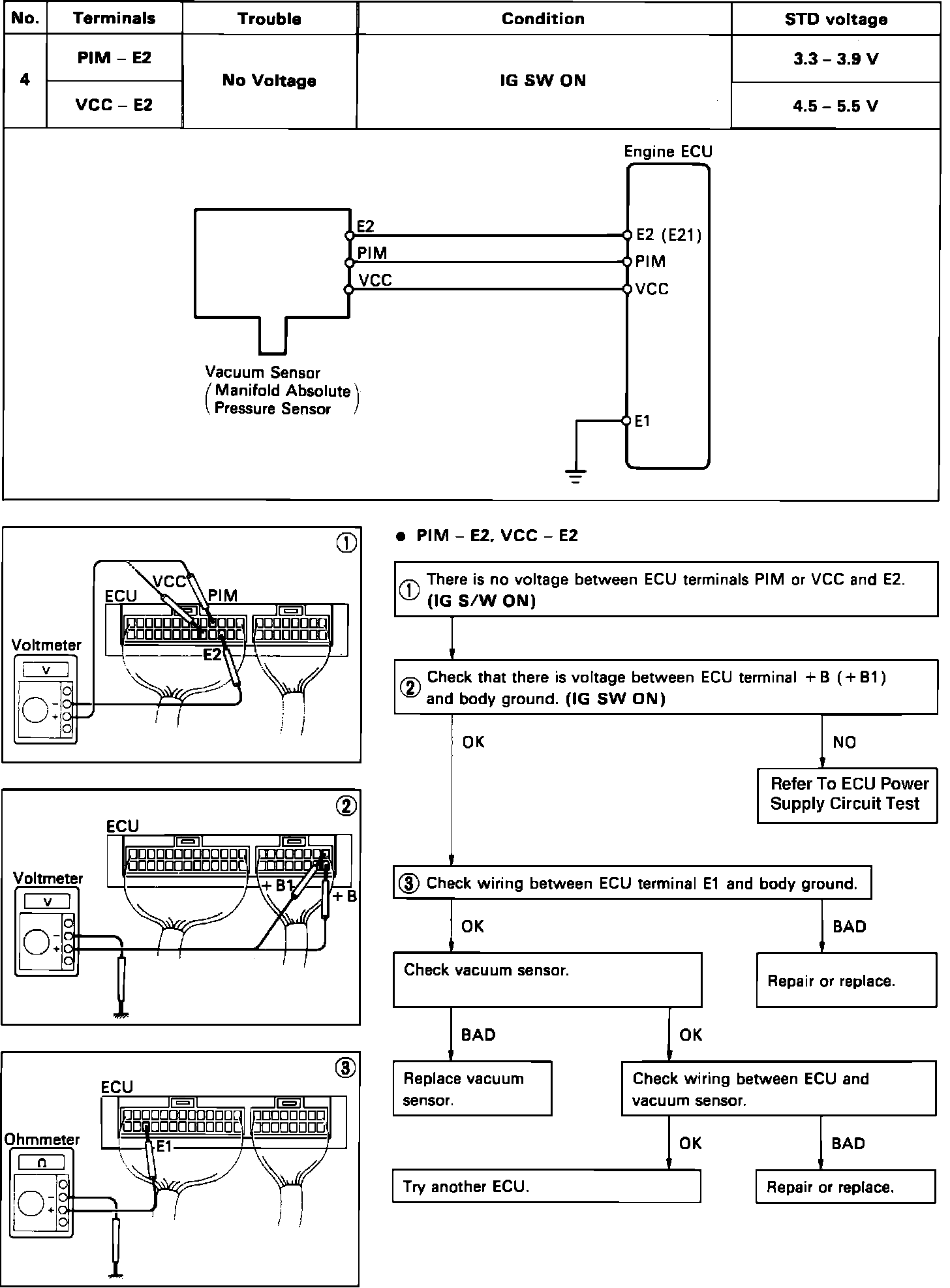

MAP Sensor Circuit Test:
