Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Celica L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Engine
>>
Compression Check
Compression Check

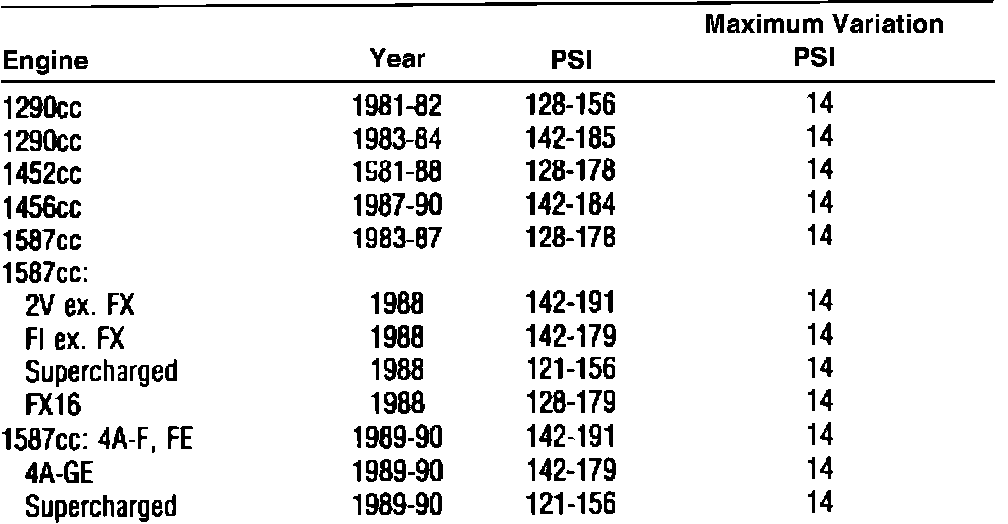

Fig. 3 Compression Pressure Specifications:
