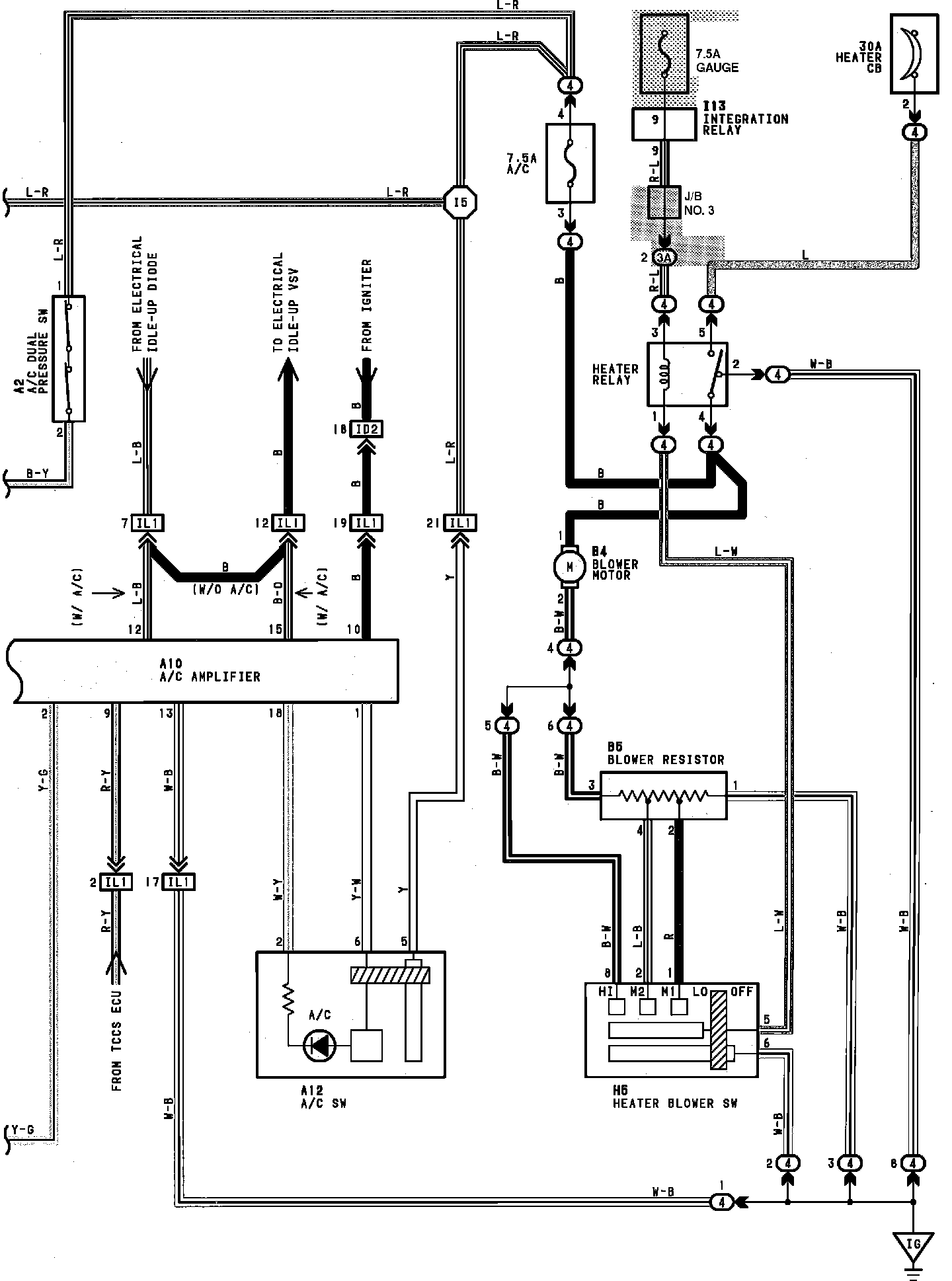

Air Conditioner & Heater Wiring Circuit

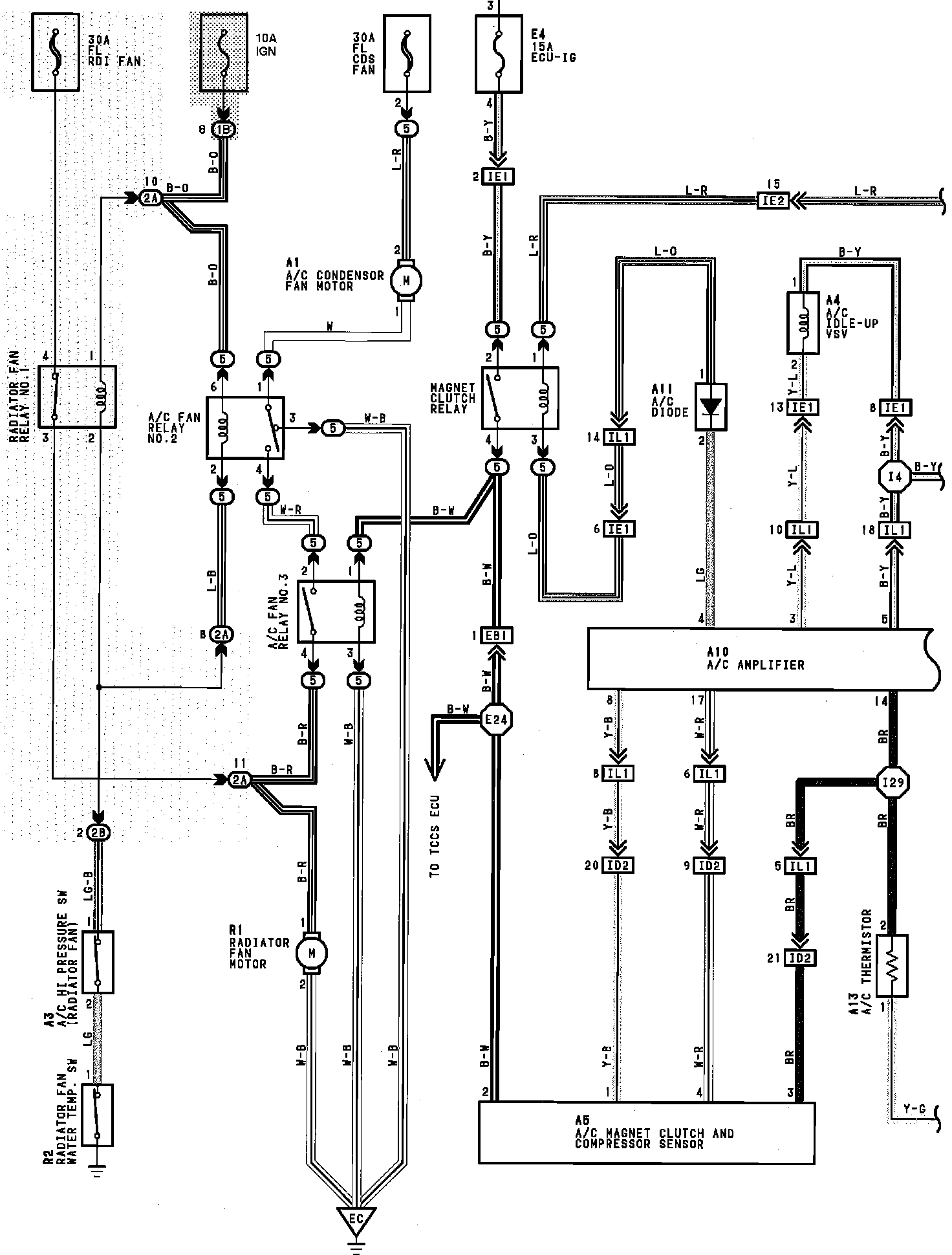

Radiator Fan And Air Conditioning (4A-GE):



Radiator Fan And Air Conditioning (4A-GE):
