Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Idle Up Control Valve
Idle Up Control Valve

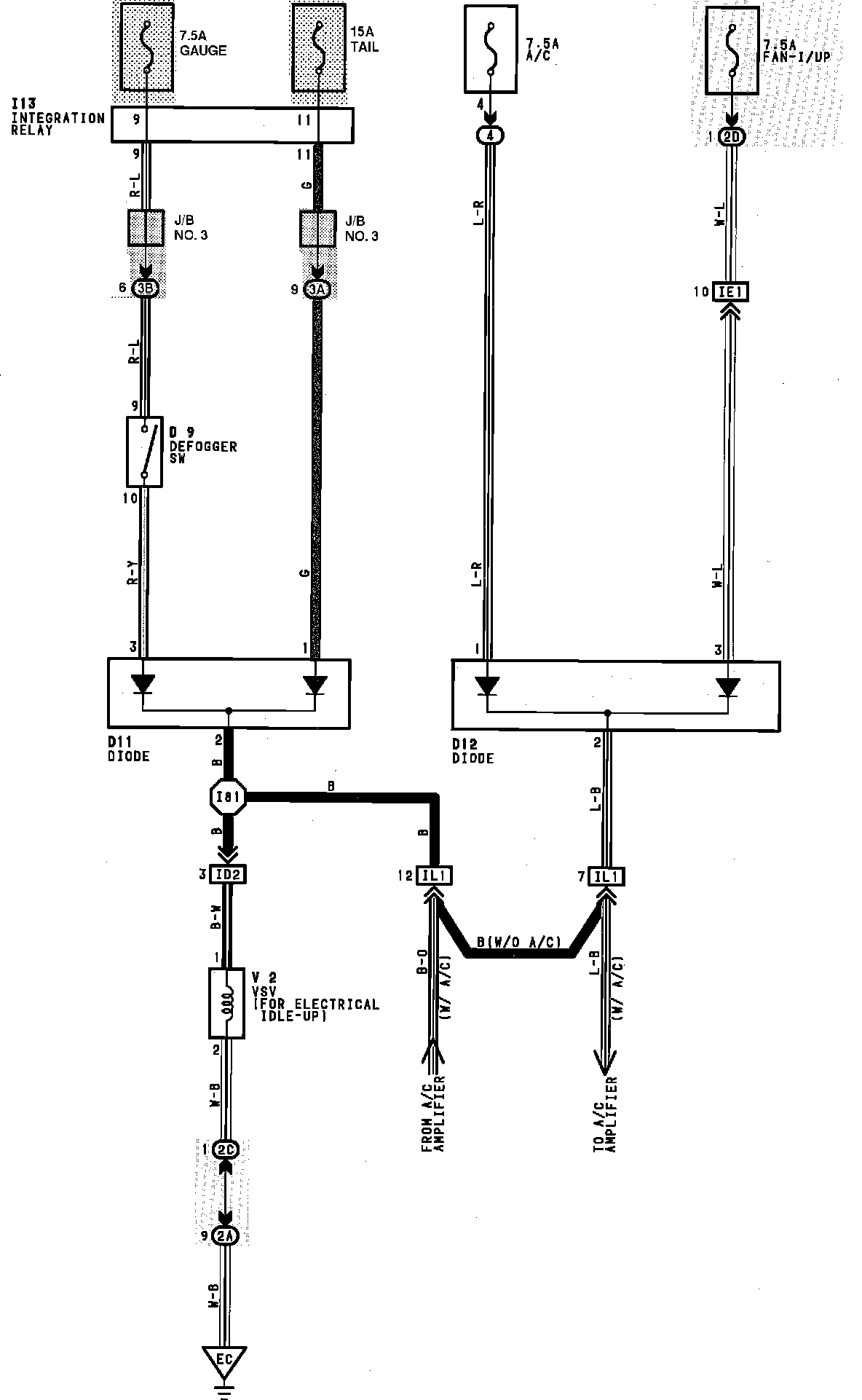

Electrical Idle-Up (4A-GE Engine):
