System Diagram

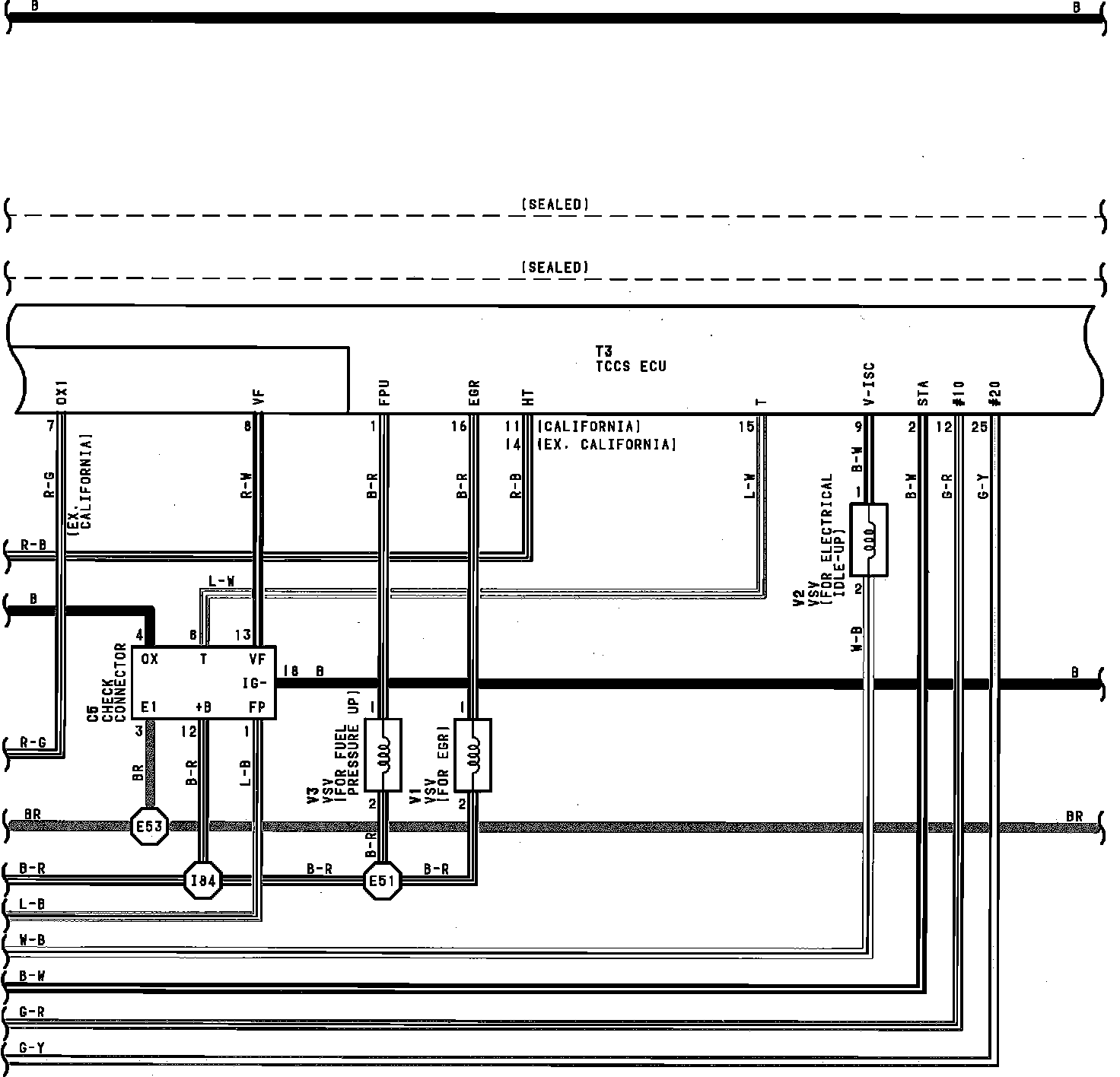

Engine Controls (4A-GE Engine):

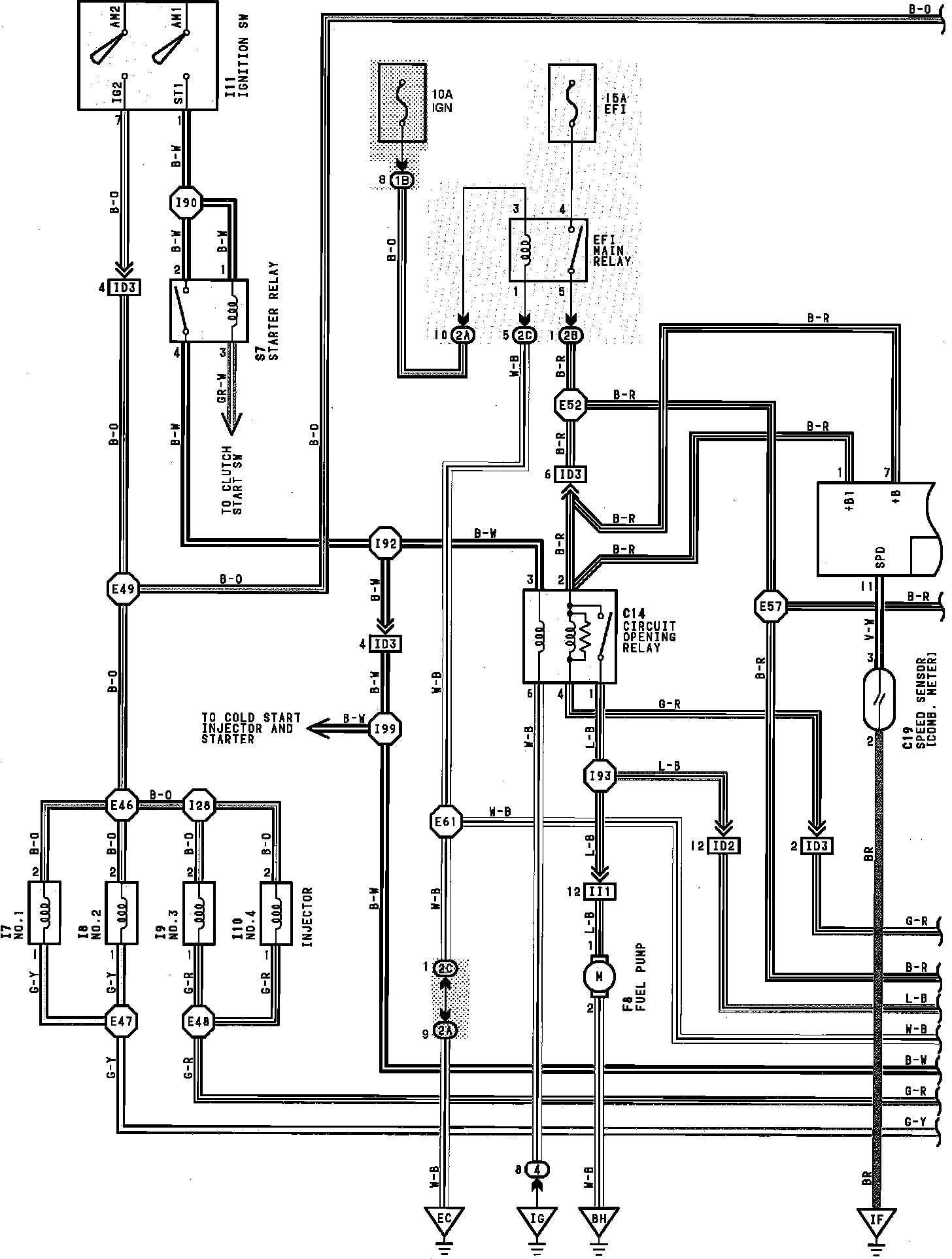

Engine Controls (4A-GE Engine):

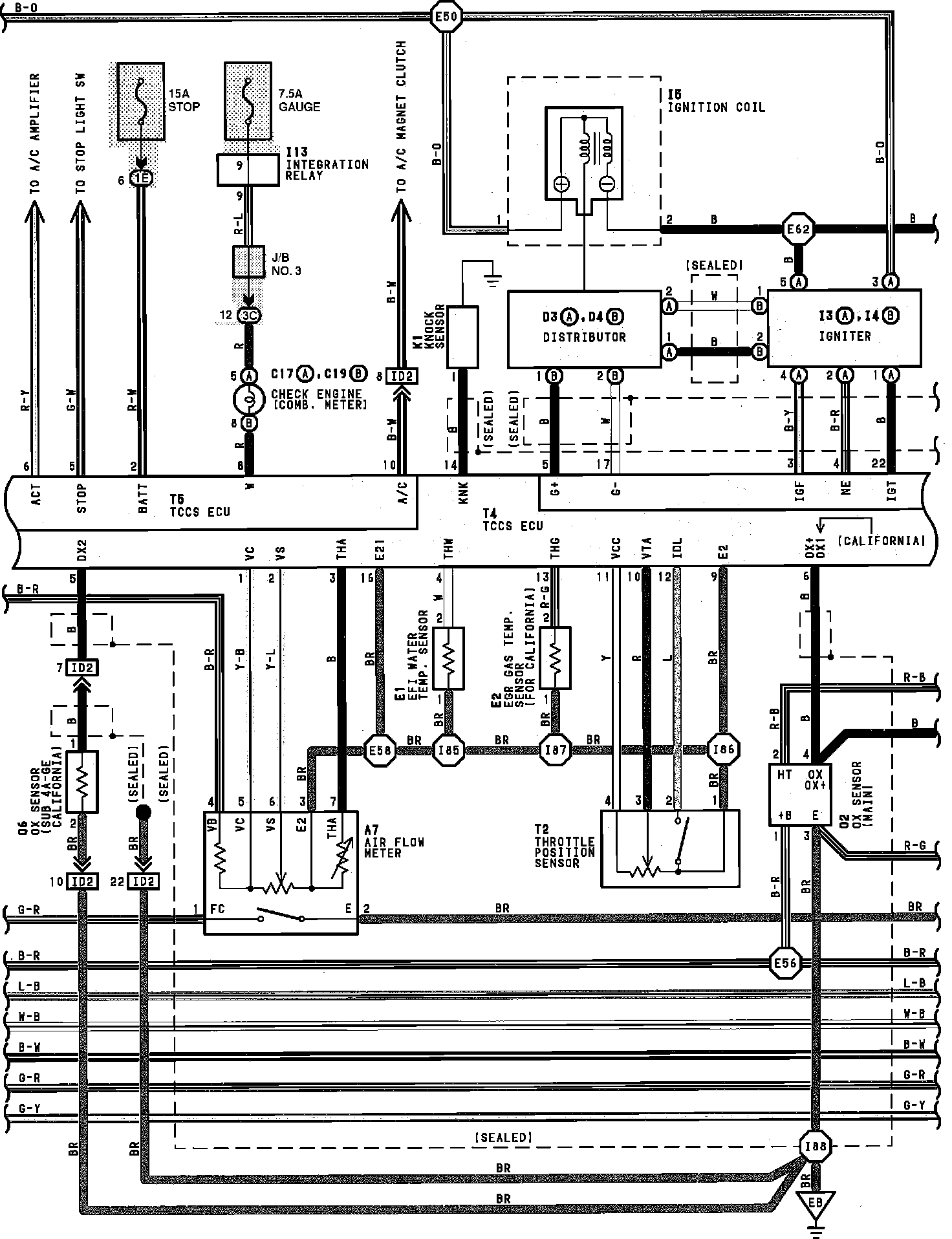

Engine Controls (4A-GE Engine):

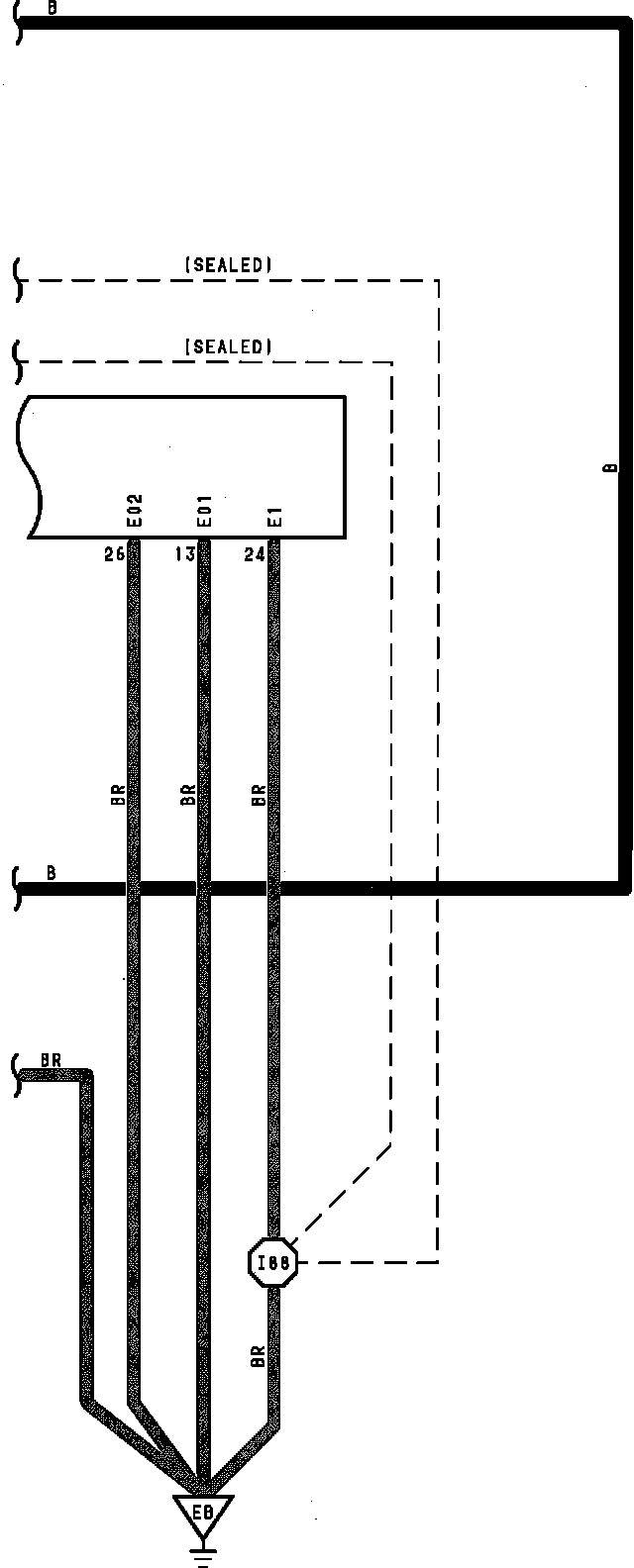

Engine Controls (4A-GE Engine):
