Diesel Data: Automotive Repair
Home >> Toyota >> 1990 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> System Diagram >> Transmission Components

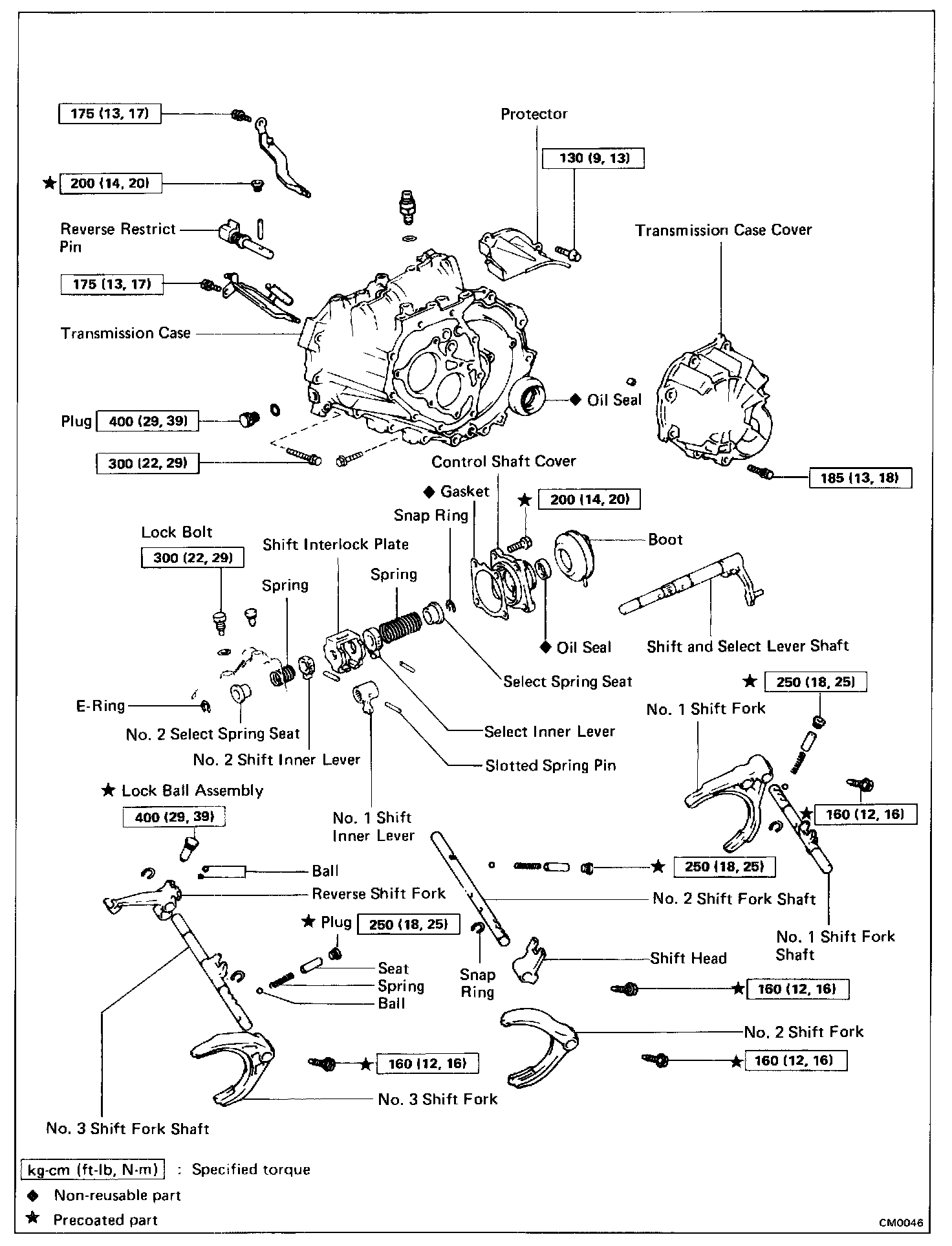

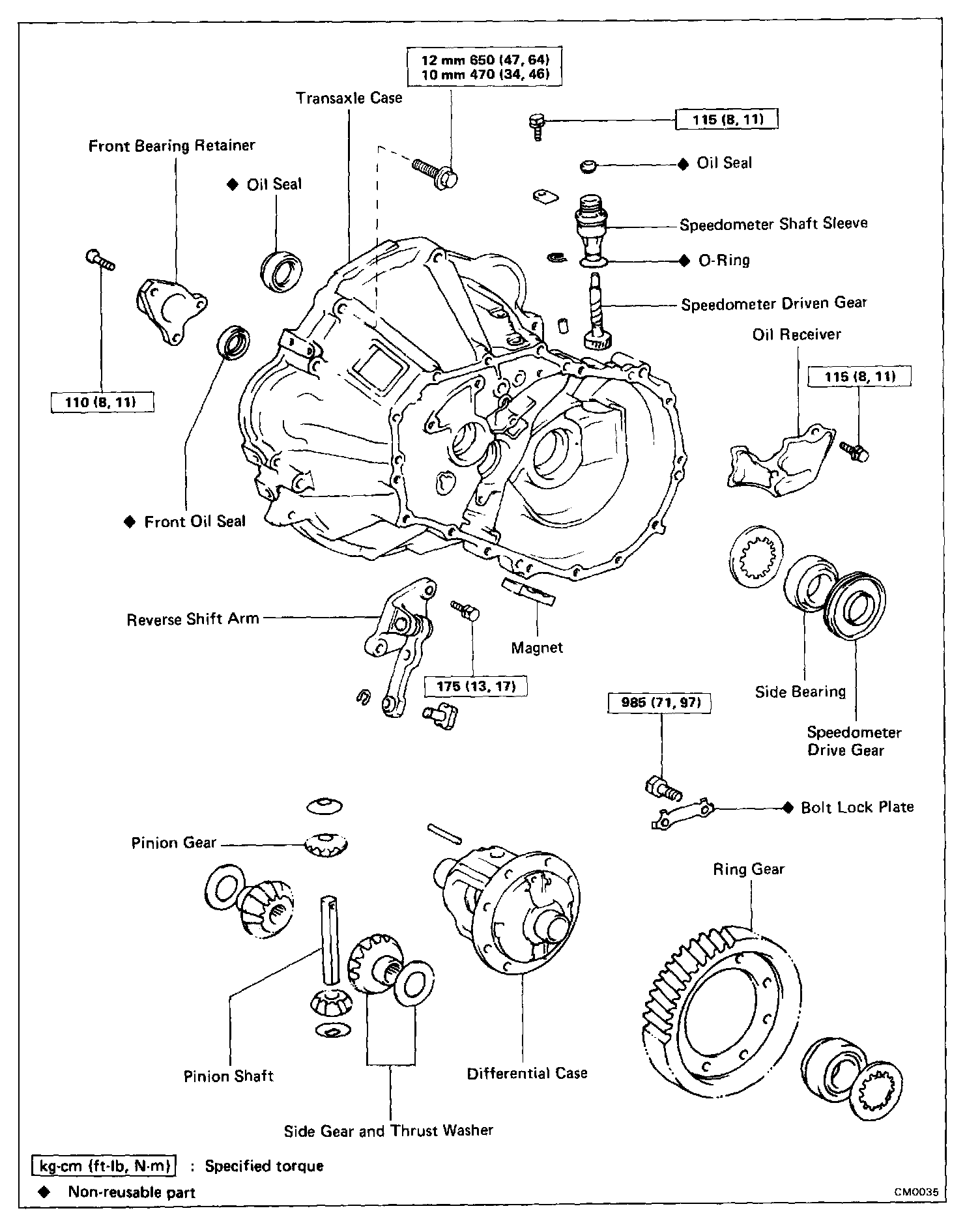

Transmission Components

Part 1:



Part 2:



Part 3:
