Torque Specifications

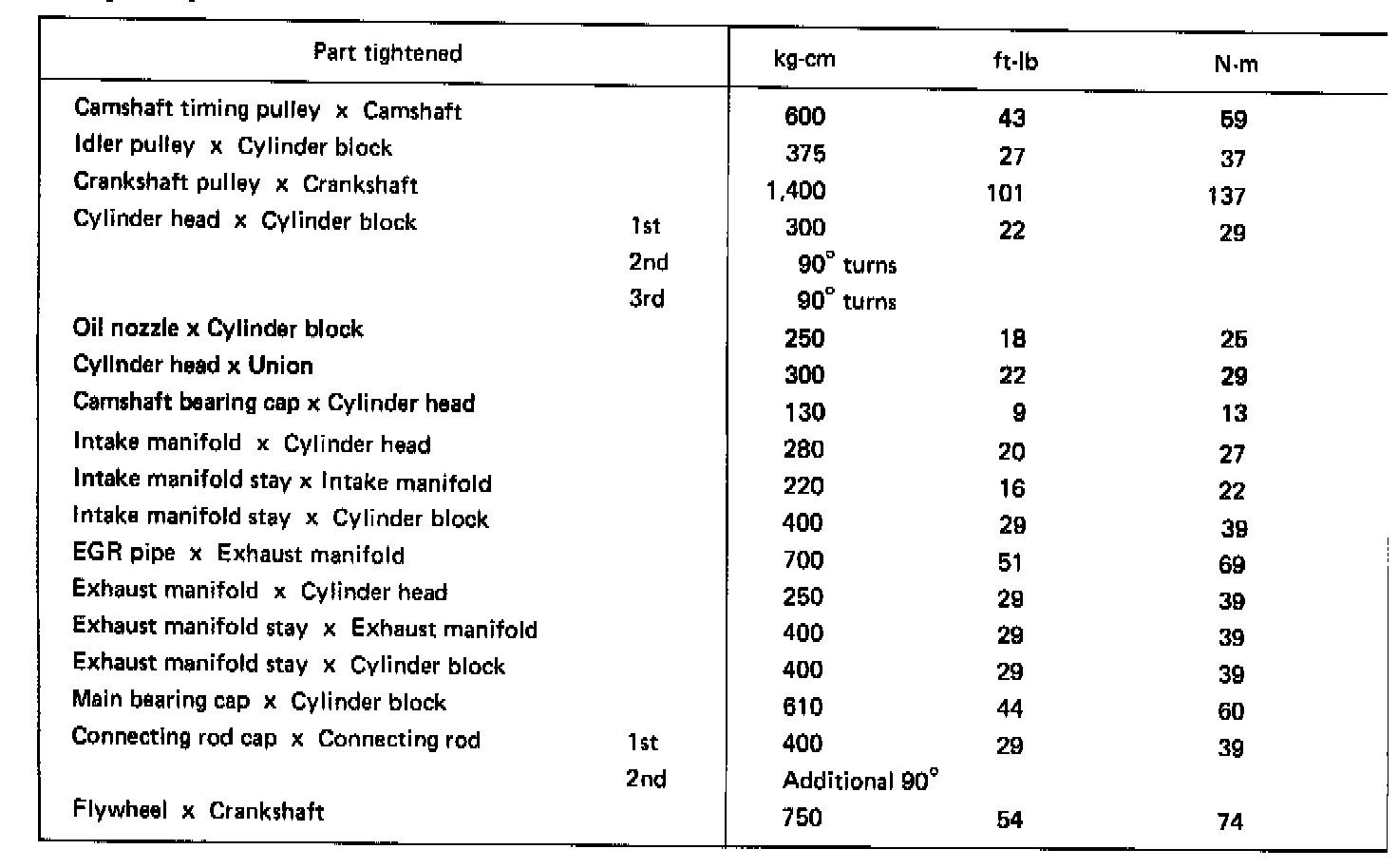

Torque Specifications

Camshaft Bearing Cap Removal Sequence:




Camshaft Bearing Cap Installation Sequence:

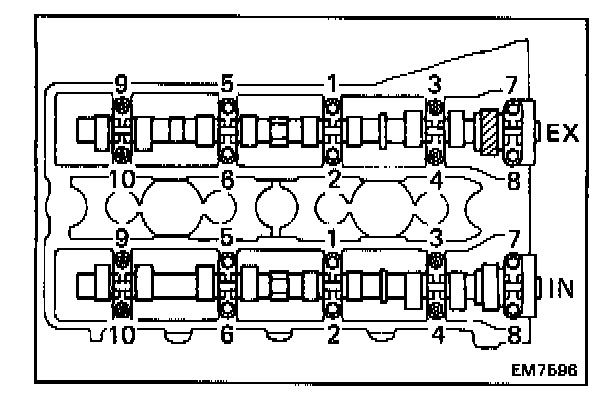

Camshaft Bearing Removal/Torque Sequence

Cylinder Head Bolt Removal Sequence:




Cylinder Head Bolt Torque Sequence:





Cylinder Head Removal/Torque Sequence





Main Bearing Cap Torque Sequence

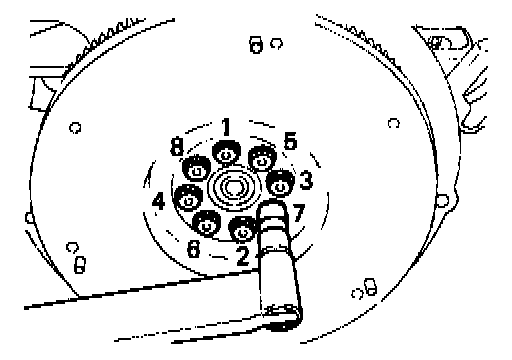

Flywheel-A/T Drive Plate Torque Sequence
